The installation of the three-roller turnstile gate plays a vital role in the use of the three-roller turnstile gate, and plays a decisive role in the acceptance of the entire project. So how to install the three-roller turnstile gate correctly and reasonably? The main points are as follows.

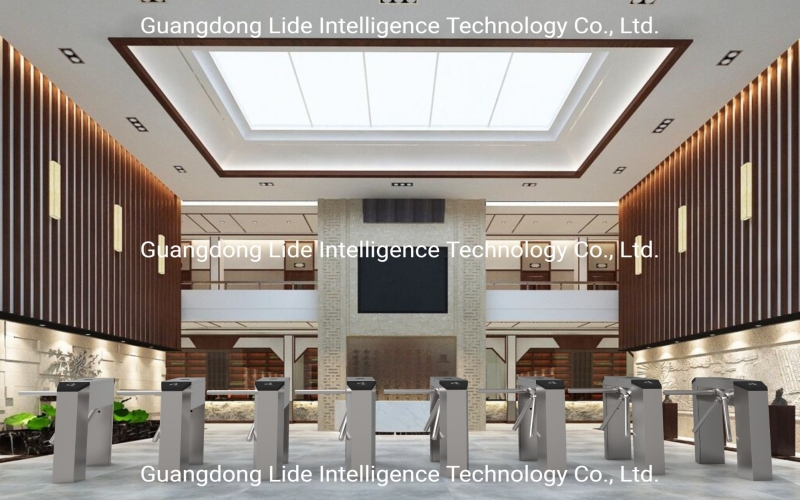

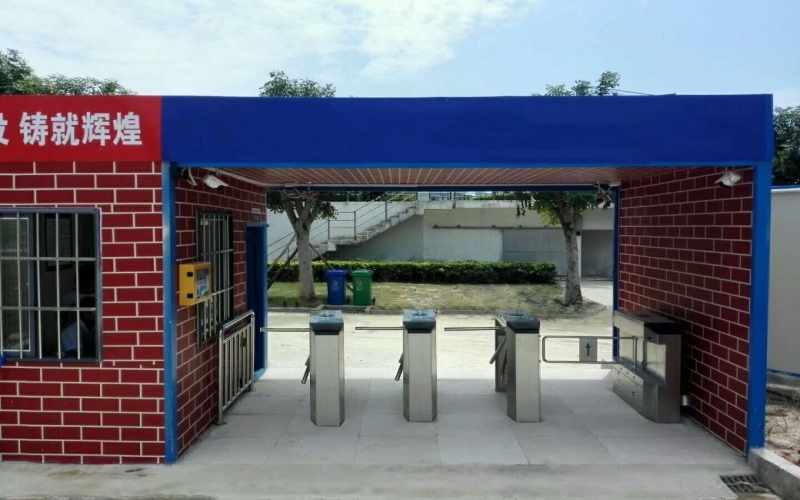

1. When communicating with customers, determine the plan, the width and length of the site, and determine how many machines can be installed. Whether to choose a vertical three-roller turnstile gate or a bridge-type three-roller turnstile gate.

Appearance standard of vertical tripod turnstile gate: 420x330x980mm;

The appearance standard of bridge tripod turnstile gate: 1200x280x1000mm;

Standard 510mm from the three-roller turnstile gate to the chassis;

That is, the floor area of the vertical tripod turnstile gate: 420x (330+510);

The bridge type tripod turnstile gate covers an area of 1200x (280+510);

2. Fixed-position wiring according to the previously confirmed plan, clarify the specific standards of the three-roller gate, make a pre-embedded pipe, leave a 50-100mm gap between the gate and the gate, and open the upper cover to prevent adjustment of the machine and make sure to leave a gap for repairs. Two plastic tubes of 6-8 points are embedded between the gate and the gate, one hose is used for the power line (strong current), and the other is used for the signal line (weak current). The power line and the signal line cannot be used at the same time. Take a hose, which will affect the function of communication. The embedded pipe should be exposed 30-40mm high above the ground. The vertical three-roller gate should be at the bottom of the center of the machine, and the bridge-type tripod turnstile gate should be on both sides. It is better (because the bottom of the center of the bridge tripod turnstile gate is closed).

3. Adjust and fix the bottom with 4M10x100 expansion screws. It should not be shaken. The whole machine is level and the appearance is the same. (Before fixing, it is better to draw a straight line with a thin line, and the vertical and horizontal directions are together), between the three-roller gate and the three-roller gate. Select the series connection method, adjust one by one, the straight line can be used normally.
