Robust Mechanical or full automatic full height Turnstiles are ideal pedestrian access control gate for interior and external secure entrance applications, especially for places that require high level secure such us prision, data center , stadium. CN Safety Gate Tech full height turnstile is with CE certificated, warranty for 5 years.
Item NO.:
LD-Q808Payment:
L/C, T/T,WU,Credit CardProduct Origin:
Made in ChinaShipping Port:
ShenzhenLead Time:

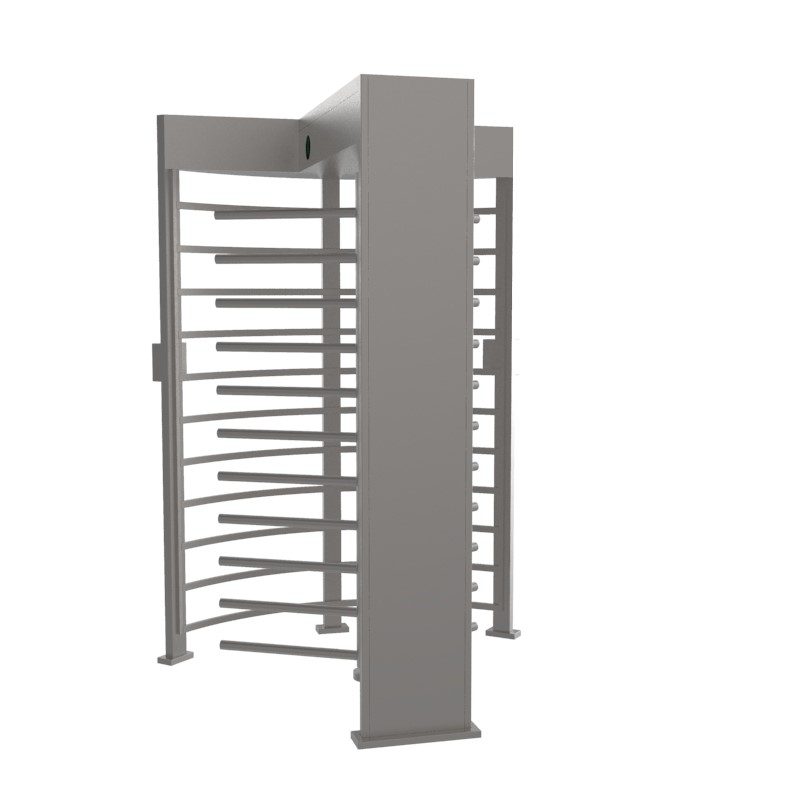

7-10 working daysSecurity Entrance Full Height Turnstile Access Control System
Product Description :
Full height turnstile adopts advanced drive control Solenoid valve with heat dissipation device & hydraulic buffer device, It will effectively reduce the vibration and noise caused by the rotating of the gate, and the outlook can be customzied made to meet the various requirements of intelligent access control systems for different styles of modern buildings.
The single passage full height turnstile is particularly suitable for the place where need safe and reliable protection ,such as the external facilities of factory, sports fields, entertainment venues, and parking facilities. Bi-direction full height turnstiles designed for automatic entrances and exits for personnel , it is highly comprehensive system that has wide range of usability. It can be integrated with biometric recognition access control system and ticket checking systems to prevent unauthorized persons enter.
Product Parameters:
| Moduel No. | LD-Q807 |
| Size | 1530*1450*2200mm |
| Material | 304 stainless steel, 38mm diameter tube, 1.5mm thickness |
| Unlocking time | 1s |
| Traffic speed | ≤30 persons/min |
| Channel width | standard 600mm, 500-800 customzied |
| Input voltage | 220V, 50HZ |
| Drive voltage | 24V |
| Ambient temperature | : -20~+70 |
| Power | 30W |
| Opening signal input | dry contact |
| Opening method | push button, face recognition, RFID card reader, finger print |
Singe Lane Full Height Turnstile Features :
1. It can be connected to any control signal or button or remote control output by the control equipment to realize single and two-way control passage; it can be set single and bi-direction free passage arbitrarily.
2. Anti-tailing function. Every time a person turns 120 or 90 degrees, if someone follows the gate, it will automatically lock and alarm.
3. The full-height turnstile has alarm prompt and fault self-checking functions, which is convenient for users to use and maintain.
4. It can provide unsupervised access control. It can automatically open when power is off, and automatically detect and reset when power is on.
5. Automatic reset function. It can be automatically reset every time it rotates 120 or 90 degrees.If the person does not pass within the specified time, the system will automatically cancel the permission of this pass .
6. Fire input. The full-height turnstile can be connected with the fire alarm signal to realize the power-off and drop the pole open.
7. Anti-buffering function. When passing illegally or breaking the brake, the brake lever will automatically rotate the corresponding angle and then lock, realizing humanized damage prevention. When the external force disappears, it will automatically reset.
8. Light indication. The high-brightness traffic lights indicate the status and guide the traffic.
Typical Application :
● High security occasions: prisons, military institutions, etc.
● Office: government agencies, etc.
● Living place: residential area, community, apartment, dormitory, etc.
● Industrial facilities: factories, workshops, etc.
● Science and education units: schools, colleges, research institutes, libraries, etc.
● Leisure and entertainment venues: arenas, scenic spots, playgrounds, swimming pools, etc.
● Transportation sites: bus stations, railway stations, subway stations, docks, etc
Product certifications:
Company and customers:
Leave A MessageThe full height turnstiles offer for both indoor and outdoor access control applications. LD-Q802 comes with high quality anti-corrosive surface, guaranteed reliable operation under the extreme outdoor conditions.
Full-height gate is kind of pedestrian passage gate, which are mainly used in factories, construction sites, supervision areas, enterprises and institutions.
Half-height turnstile is an access control turnstile that reaches waist height.It is functioning indoor and outdoor, providing pedestrian access control where requiring high level of security.
The full height turnstiles are the ceiling to floor entrance with mechanical rotating barrier arms. It is an ideal solution for the high-level of outdoor security.
Full height turnstile comes in a multi types and offers high security for your facility. In single or tandem arrangements with a variety types of programming options available. CN Safety Gate Tech turnstile carries every component necessary to seamlessly build a complete turnstile security system.
The half height turnstile is a waist-high access control entrance gate. It's a cost effective alternative with elegant appearance. And high quality finish is fit for any places where aesthetics is required.
Full height turnstile is a rugged robust, low -maintenance security gate for exterior conditions, it serves as a security guard to prevent unauthorized entry, tailgating in your facilities, CN Safety Gate Tech’s full height turnstile have been developed to comply all kinds of requirements, ideal for interior and exterior unattended surveillance.
This special design full height turnstile combines turnstile for pedestrian access but also a gate for bicycle access. There is a hinged gate,which will open automatically when a rider pass the turnstile gate.
