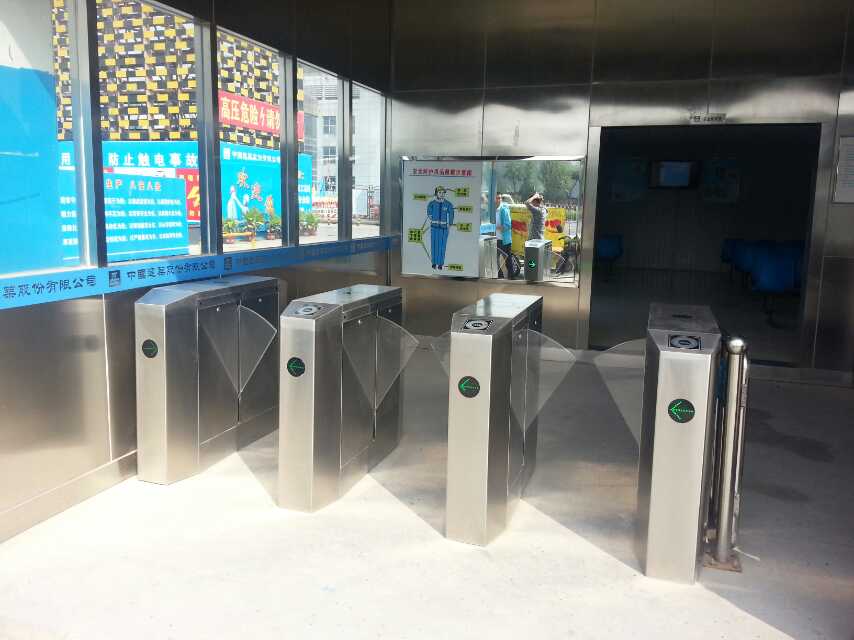

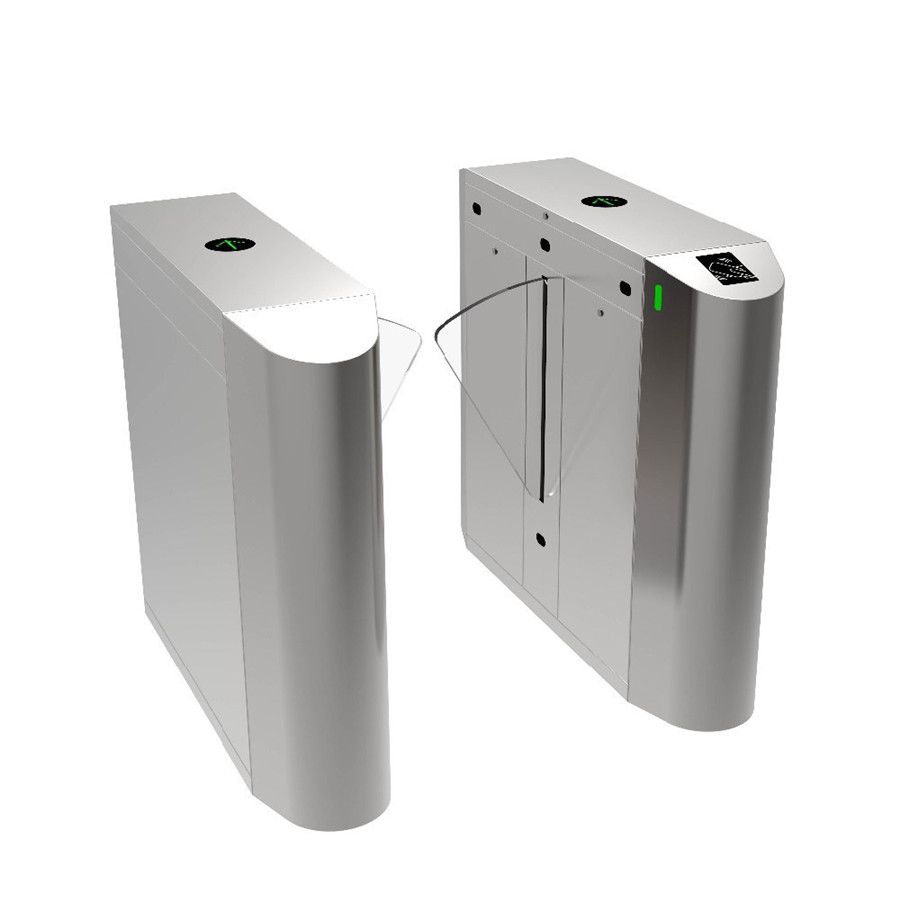

LIDE Flap barrier gate is a high-end product for intelligent management of pedestrian passages. It is an upgraded product of intelligent optical swing turnstile gate and three-roller gate. The product adopts industrial-grade circuit control system and humanized and scientific mechanical transmission design. The product has stable performance, complete functions, user-friendly design, and high-grade. It is mainly used in high-end and heavy traffic places such as subways, docks, clubs, smart office buildings,  communities, and hotel lobbies.

The device is compatible with various access control identification system equipment, such as proximity card access control, biometric access control, electrostatic test access control, etc., through the simple docking with the swing barrier gate, intelligent access control and management can be realized. |

Function and characteristics

1,With fault self-checking and logic judgment functions, it is convenient for users to maintain and function debugging;

2, Mechanical and infrared sensor- dual anti-pinch function, when the retractable arm is blocked, it will automatically stop or rebound and release an alarm signal at the same time;

3, Multi-mode alarm function, including illegal intrusion, anti-intrusion, tailgating, overtime alarm, etc.;

4, Anti-shock function, when the opening signal is not received, the wing gate stay automatically locked;

5, Reverse intrusion and alarm function. When someone intrudes from the reverse direction after someone else swiping the card in the forward direction, the flap will be quickly closed and an alarm will be issued;

6, Flexible traffic indication function, high-brightness indicator light and its user-friendly prompt function make the passage channel more distinctive;

7, Normally open and normally closed modes are adjustable, easily controlled by dialing or external manual buttons;

8,Automatic detection and reset function, after opening the gate, the system will automatically cancel the permission of this passage when the passes do not happen within the specified time (adjustable);

9, Automatically open when the power is off to meet the requirements of fire protection;

10, It can be connected to a variety of control devices and receive relay switch signals to work;

11, Various modes of passage can be set, one-way or bi-direction of personnel entry and exit, or one-way control, reverse free passage;

12，Strong ability to adapt to the environment, can work normally in various harsh environments, super self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain and snow, typhoon weather and environmental changes.

Installation Instruction

1.Confirm the type and quantity of the optical wing gate.

When communicating with the customer, confirm the area of the site, and determine the quantity required, whether to choose a vertical flap turnstile or a bridge flap turnstile.   Fully consider  the area ofeach wing gate, the placement position, how to wire it (whether to use the open line or the dark line), when all the details confirmed and deliver the flap barrier gate to the site.

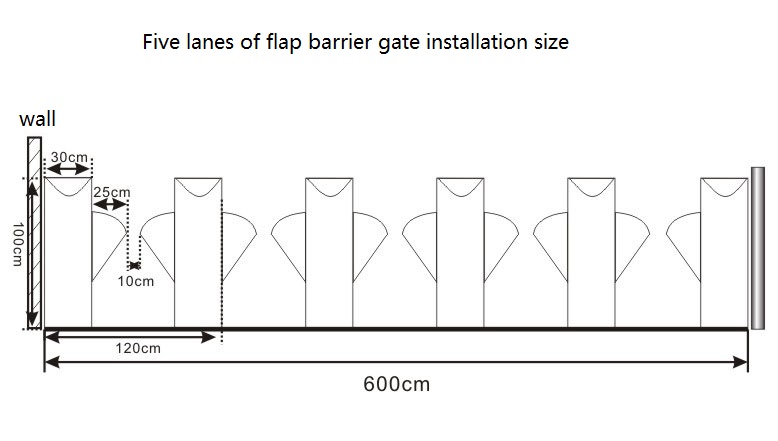

2. Fixed location wiring. According to the previously plan, clarify the specific dimensions of the wing gate installation, make a pre-embedded pipe, leave a 50-100mm gap between the gate and the gate, and open the upper cover to prevent adjustment of the machine, maintenance, etc., do not fail Leave a gap. Two plastic tubes of 6-8 minutes are embedded between the turnstile and the turnstile. One hose is used for the power line (strong current) and the other is used for the signal line (weak current). Do not connect the power cord to the signal line runs through a rubber tube at the same time, which will affect the effect of communication. The embedded tube should be exposed to the ground 30-40mm high. The vertical wing gate should be at the bottom of the machine, and the bridge wing gate should be on both sides. (Because the bottom of the bridge wing gate is closed).

3. Fixed adjustment. The fixed bottom is fixed with 4-M10x100 expansion screws. The whole machine is level and the appearance is consistent. (It is better to draw a straight line with a thin line before fixing, and the vertical and horizontal directions are the same). The wing gate and the wing gate are connected in series,adjust one by one, the straight line can be used normally.
