Installation method of tripod turnstile is very important,it determines whether the entire project is qualified or not, plays a decisive role in the life of the tripod turnstile, and has a great impact on the safety of the users.
How to install the tripod turnstile gate reasonably, should pay attention to the following issues.

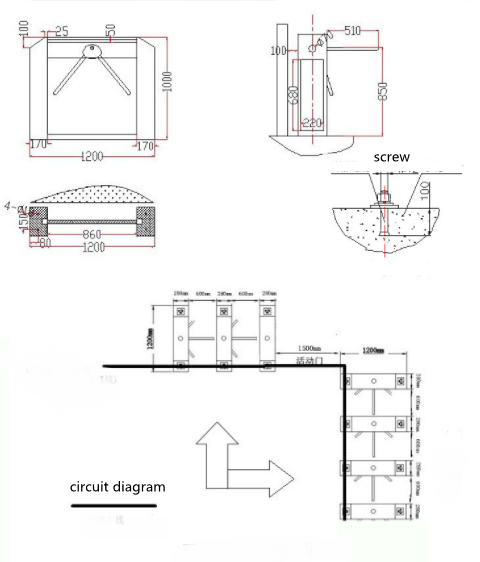

1.Overall planning before installation. When communicating with the customer, determine the plan, the width and length of the site, and determine how many channel can be installed, whether to choose a vertical tripod turnstile gate or a bridge-type tripod turnstile;When determining the selection, fully consider the gap between the gate and the gate rod, the area of each gate, the placement position, and design Layout circuit diagram (whether to use the open wire or the dark

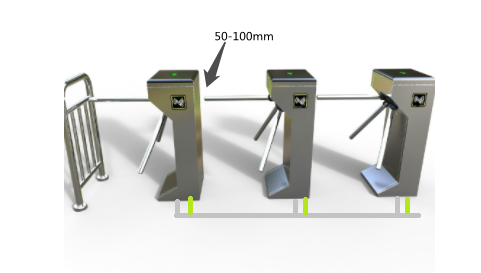

2.Install wiring. According to the previously determined plan, clarify the specific dimensions of the installation of the tripod turnstile, make a pre-embedded pipe, leave a gap of 50-100mm between the each gates. and the upper cover needs to be completely sealed to prevent water leakage;Set 2 plastic tubes of 6-8 cm are embedded between the gate and the gate, one tubes is used for the power line (strong current), and the other is for the signal line (weak current). Those two type of wire cannot be in the same tubes, which will affect the communication effect;

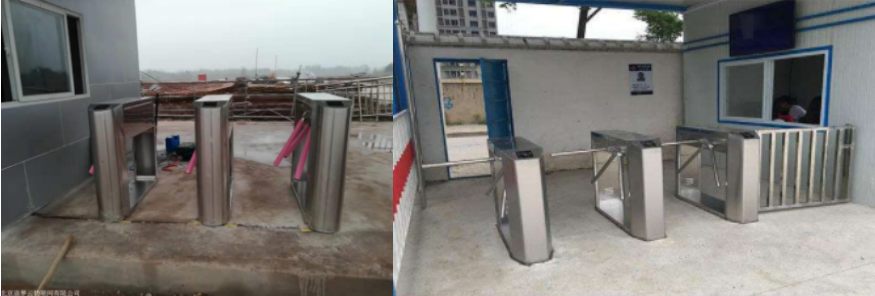

3.Fixed adjustment. Need to arrange the same distant of all the equipment; fixing the hole position, drill the holes and pre-embed anchor bolts or expansion bolts; fix the bottom with 4-M10x100 expansion screws, and do not swing. All machine is level and the appearance is the same is qualified. Choose one of the equipment as the reference datum (it is better to choose the middle one as the reference datum), align the bolt holes of the machine base with the corresponding anchor bolts, and pre-tighten the nuts;
4.Access control system installation After the tripod turnstile is installed, refer to the wiring diagram, connect the power cord and control line, and connect the system protection ground wire; if the equipment is used for outdoor,it is batter to set a 100~200mm height shield to cover equipment installation place. And then use Wiegand port to connect the Access control system,such as Face recognition terminal,rifd system,NFC or ID system.Finished installation.
