We see swing barrier turnstiles in many communities and office buildings. Swing barrier gates are mainly installed to facilitate passing of bicycles, electric vehicles, motorcycles, etc. The widths of the appearance of swing barrier gates are usually a single movement of 280mm, and a dual movement of 300mm. Dot-matrix indicator lights, some of the swing arms are made of 304 stainless steel, and some are made of plexiglass. All swing barrier turnstiles look thick and heavy.

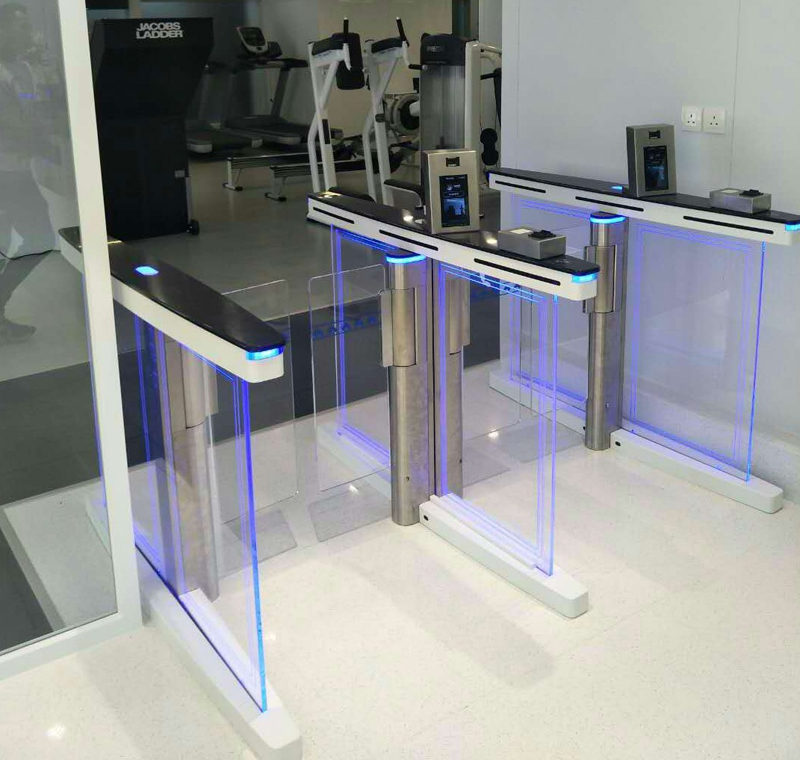

Viewed from the outside appearance of speed gate turnstile, it is relatively slender, looks light, and magnificent. The movement structure is small. The single movement is usually of 150mm width, and the double movement is usually of 210mm width and 1500mm length. The length can be customized according to customer requirements. The swipe window is more slender and the indicator light is smaller. The swing arm is usually made of plexiglass or tempered glass, and the swing arm drive rod is a bit thicker, with a diameter of 51-63mm. From the outside, the fabrication technique and overall appearance look high-end and elegant. We can feel the difference in appearance and speed gate turnstile is high-end and noble.

Generally, swing gate turnstile is not anti-collision, and it will be broken if you kick it. The movement will be damaged seriously. The control panel is composed of 8-bit microcontroller, the opening speed is relatively slow, and the passage is 20-25 people/min. The power-off gate is retracted to meet the requirements of fire protection, and there is no fire linkage function. In general, for people and suitcases, the swing barrier turnstile can only rely on the central anti-pinch to deal with whether there has been a pass. During peak periods, only one person can have one card. You can't swipe the card one after another, and there is no memory of opening the gate.

The speed gate turnstile of Guangdong Lide has the function of anti-collision, which can automatically reset after a kick. In addition, the control panel is a 32-bit embedded microprocessor, the opening speed is very high, 0.4-0.5 seconds/time, and 35-40 people can pass per minute, can swipe the card one after another, open the gate one after another, the gate has the memory function, and the fire-fighting linkage.

When people and luggage (backpacks or trolley suitcases) pass through the speed gates turnstile, the intelligent speed gate opens quickly after swiping the card. If the luggage does not pass, the speed gates will not be closed. The gate will be closed after people and luggage have passed completely. When closing the gate, if someone breaks in during the closing process, the gate will open automatically, the safety factor is very high. During the peak period of commuting and the peak period of the scenic spot, you only need to swipe the card to record, and the gate will not be closed. The number of swiping cards and the number of people passing by the tourist group are exactly the same. The above is the difference between swing barrier turnstile and speed gate turnstile. For more information, please send inquiry to us.
