Structural features:

1. Electrostatic tester: It is the core component of ESD access control. It indirectly reflects the electrostatic indicators of the human body by testing the resistance of the human body, to ensure that the tested person is qualified to wear shoes, wrist straps, etc., and output signals to subsequent components to drive channel agency.

According to the grouping signal of the central controller, it can perform 4 kinds of operations on the card reader, such as measuring both hands and feet, measuring only the hands and feet, and without ESD detection.

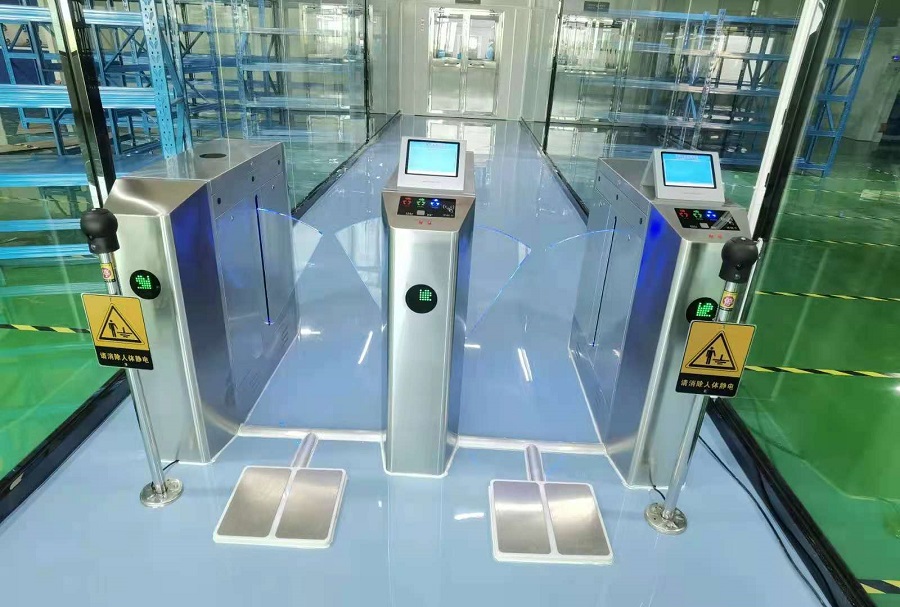

2.Turnstile gate: the entry direction of the turnstile gate is equipped with an ESD detector and an inductive card reader, and one person can pass through after the card swiping and electrostatic detection are qualified. The direction of going out is also equipped with a proximity card reader for the company to set up as a two-way channel. The exit gate is equipped with an outgoing induction card reader, which can be set to go out by swiping the card or to go out freely.

3. Central controller: save employee data, determine whether the employee is allowed to pass according to the card swiping signal, which test type it belongs to, and send it to the electrostatic tester, and then drive the turnstile gate according to the output signal of the electrostatic tester.

4.Power supply: Provide power supply for all institutions.

5. Proximity card reader: receives the swiping signal and transmits it to the central controller for judgment.

6. Management computer: install ESD access control management software.

7. Remote communicator: Provides communication between the central controller and the computer to complete settings and data collection.

8. Server: Install ESD access control database, you can use the company's existing Microsoft SQL Server database management system.

Electrostatic protection access control system product features:

This tester has attendance, access control functions, and ESD testing. It is a comprehensive intelligent anti-static access control monitoring system.

The test modes of this system include: employee swiping card and VIP client mode; it can automatically store records and ESD test data (except client mode), and record information up to 20,000 pieces.

The system features: LCD liquid crystal display, online monitoring, button plus touch test, voice prompts, Chinese and English conversion, mail group sending, computer automatic calibration and online monitoring of the status of extensions.

Initially, the computer supporting software downloads the registered name and card number information into the ESD tester; (the registration information also reaches 20,000). The computer supporting software extracts the card swiping time, card number and ESD test data records, and clears the records of the ESD tester at the same time. SQL Server's back-end database management is intelligently sorted and inquired by the supporting software, and the information is exported to Excel for typesetting and printing of daily and monthly reports.

The supporting software can control 200 three-in-one ESD access control testers on the computer. It can also manage the local network database of multiple computers in a unified manner. The software can be upgraded according to customer requirements. It is a high-tech intelligent anti-static* equipment. It is designed in strict accordance with ESD safety performance and meets the "6.1.3.2" anti-static standard of ANSI ESD S20.20 paragraph.
