LD-HB02 Electrical Hydraulic System Bollard

LD-HB02 Electrical Hydraulic System Bollard

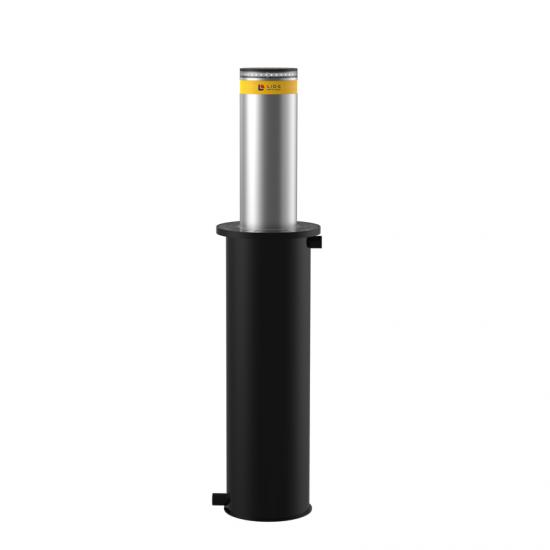

LD-HB02 is an integrate delectrical hydraulic system bollard. The diameter is：219mm (168mm,273mm and 324mm options). Standard rising height is 600mm (400-800mm can be customized). The thickness is 6mm (customized is available). This electric rising retractable bollards mainly used to control vehicle access. It can work together with the parking barrier system or work standalone. This retractable lifting bollard is designed and developed to prevent non-permitted vehicle forced entry into sensitive area, which is high available, reliable and safe.

Specifications:

Hydraulic system components:

1. Motor: 220V

2. Oil pump: (vane pump)(industrial grade)

3. Solenoid valve (industrial grade)

4. Hydraulic cylinder: HOB63-600CA + I (heavy industrial grade)

5. Double-dynamic and double-oil manual pump 2.3ML/time (industrial grade)

6. Oil tank capacity: 6 liters

7. hydraulic oil hose: PT International standard interface, double-steel high-pressure pipe

Control system components:

1. PLC control commands: PLC chip: American original chip (Industrial Grade)

2. 220V power switch (Industrial Grade)

3. Solenoid valve (industrial grade)

4. Power supply: industrial grade (-28 - 85 degrees)

5. Remote controller within the range of 30M

6. Text display (your company name, phone and address can be set)

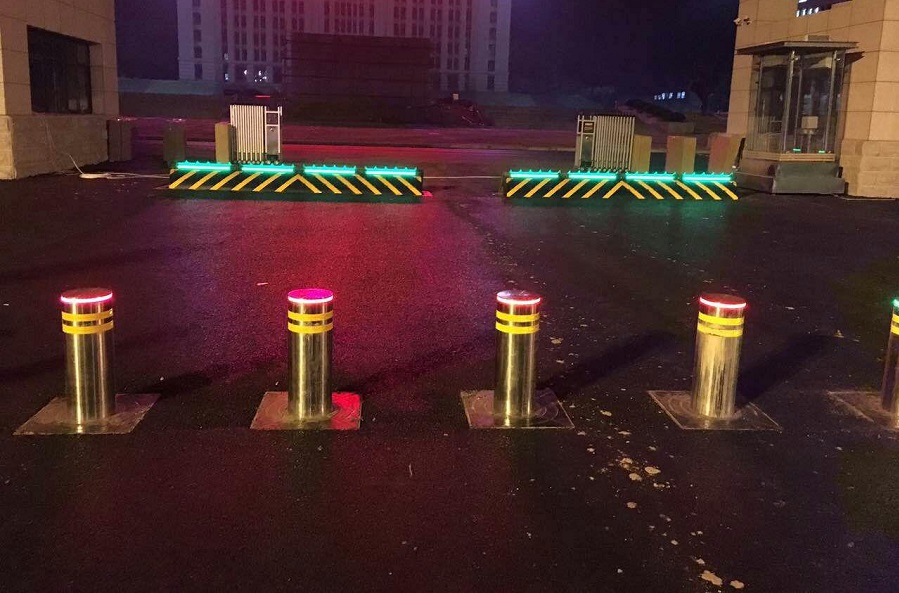

Automatic Hydraulic bollards are widely used in urban transportation, military and national important organs gate with the surrounding, pedestrian streets, highways, toll stations, airports, schools, banks, large clubs, car parks and many other occasions. By limiting the vehicles access, it effectively safe guard the traffic order that is the safety of main facility and locations.
