Item NO.:
LD-T314Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:

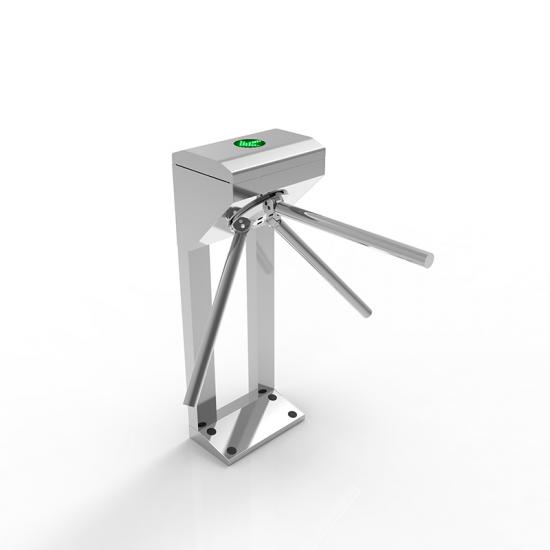

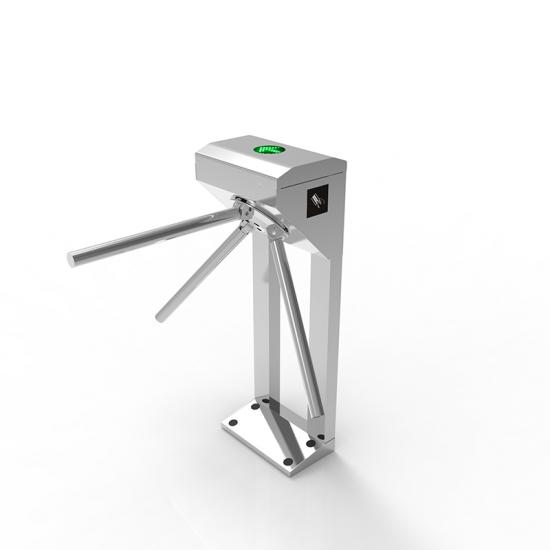

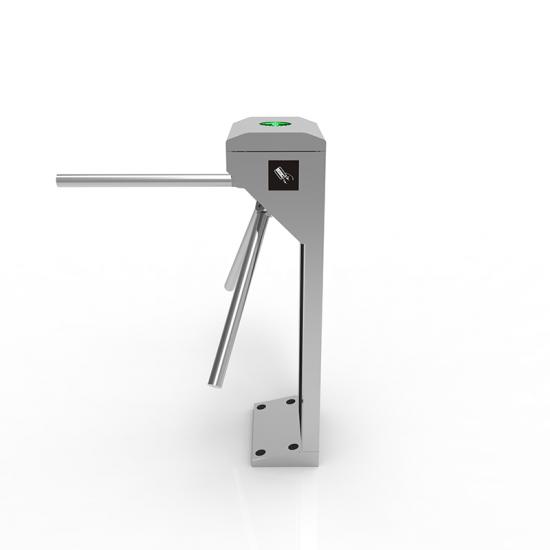

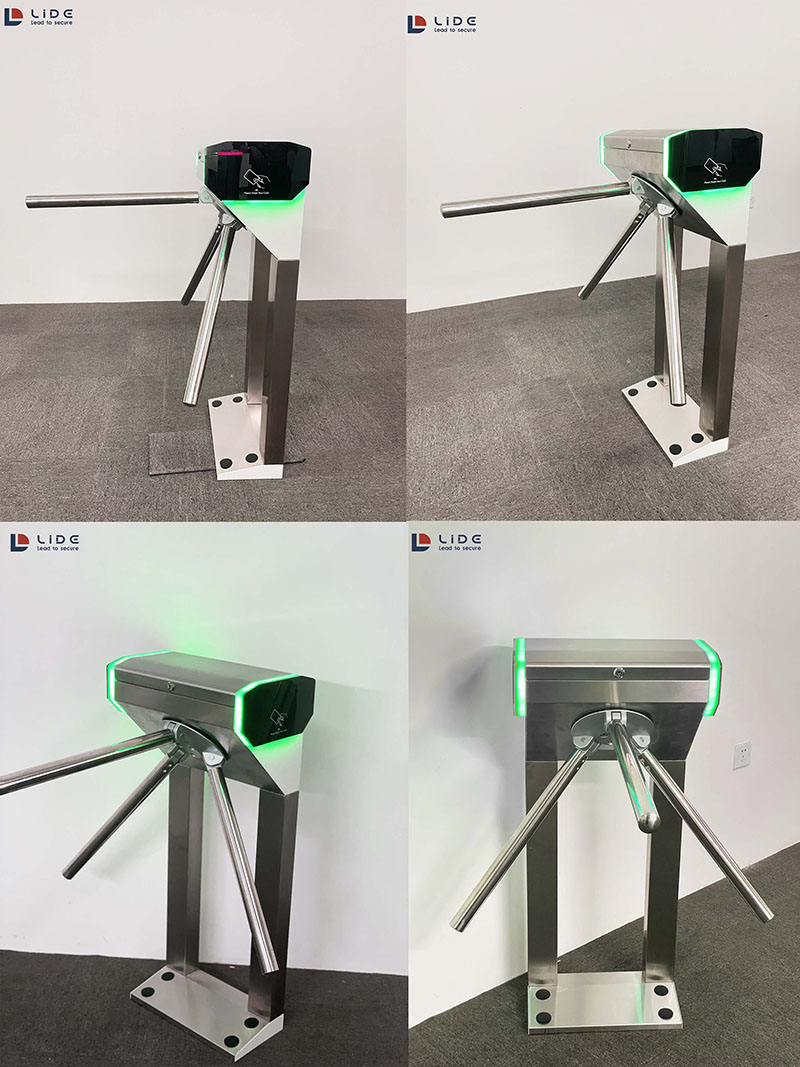

7-10 DaysWaist High Tripod Turnstiles restrict access to one person at a time with the rotating barrier arms that features solenoid locking system and 360 degree movement. The locking can help prevent the arms rotating back to original position after move 25 degree.
With its extremely thin and light body, it can help the security guard get the clear vision of entrance from the CCTV monitor. Our installation of half height turnstiles is only need to drill the hole in the surface of floor which they are to mounted and easy to handle by personnel.
Parameters
|
Model No. |
LD-T314 |
|
Size |
350*260*1000 mm |
|
Material |
304 stainless steel |
|
Channel width |
550mm |
|
Thickness of shell |
1.2mm |
|
Power |
110-230 VAC Single phase |
|
Traffic direction |
Single Direction or Bi-directional; |
|
Passing speed |
30 persons/minute |
|
Opening signal |
Dry contact |
|
Life |
5 million times; |
Features:
1. Low voltage drive ensures safety passage and minimal energy consumption.
2. Arms drop and unlock for escape route in case of emergency / power failure.
3. Automatic reset of barrier arm after each passage.
4. LED Direction indicators at the top cover.
5. Stainless steel 304 housing features anti-corrosion and long life serving.
6. Lock mechanism ensure one person passage at a time to prevent tailgating.
7. Work modes – single directional and bi-directional traffic control, always open or always blocked.
8. Integration support with any RFID/Biometric Reader through dry contact
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Tripod turnstile can be integrated with ticket system, attendance system and access control system .Customization and second development is supported.
Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.
Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
The waist height tripod turnstile assists pedestrian access control at the passageway in the buildings. It is the outstanding choice for compact design and function.
