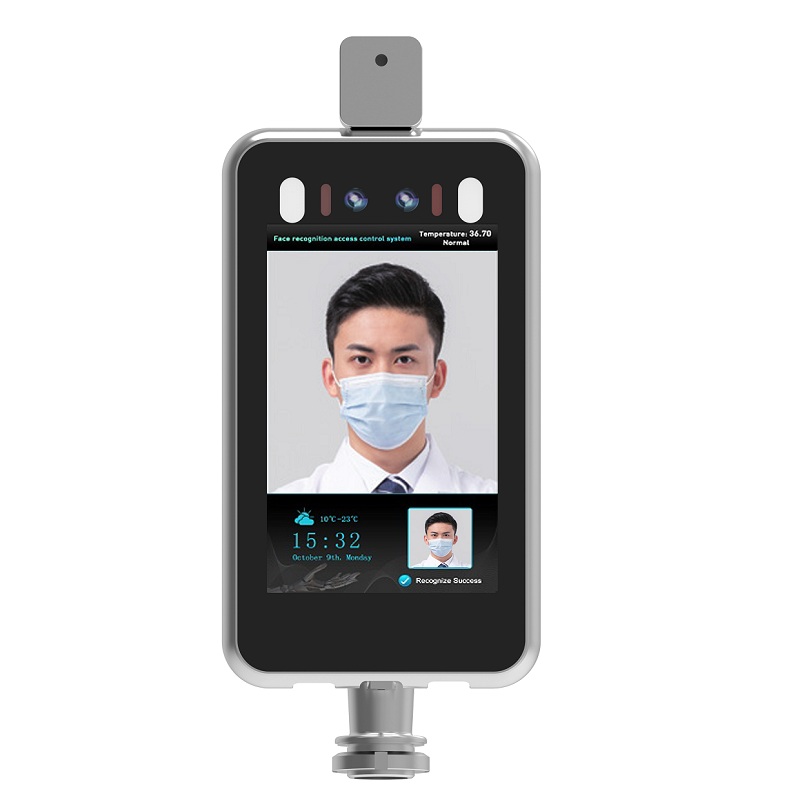

7 Inch Fever Screening Access Control System Facial Recognition Camera is a device that integrates non-contact temperature measurement and face recognition functions.
Item NO.:
LD-FR2020-7Payment:
L/C, T/TProduct Origin:
ChinaColor:
SilverGoods stock:
1000Product weight:
2Shipping Port:
ShenzhenLead Time:
7-10 working daysLD-FR2020-7 7 Inch Fever Screening Access Control System Facial Recognition Camera
Product description:
7 Inch Fever Screening Access Control System Facial Recognition Camera is a device that integrates non-contact temperature measurement and face recognition functions. It is used in stations, hospitals, parks, communities, schools and other places with large mobility of people. It can be connected to the access control system to achieve Face-scanning, temperature measurement and door opening, when the portrait is recognized by comparison and the body temperature is monitored normally, the gate or barrier can be automatically opened to improve safety.
Product applications:
Subway station, hospital, park, communities, school, office building, etc.
Product features:
*Face recognition Binocular live body detection technology, effectively prevent the attacks such as photos, videos and models, etc. 99.5% recognition rate; Recognition speed<500ms; 2 face libraries, total support 50000 faces. Multiple arming periods settings;
*Temperature measurement: High accuracy temperature measurement module; Measurement accuracy:±0.3℃; Best distance: 40CM; Abnormal temperature alarm (threshold adjustable)
*Face recognition + mask detection: Face + mask recognition rate 85%, mask wearing tip;
*Voice broadcast: face recognition result, temperature normal or abnormaland mask wearing broadcast
*T Max.100000 records save or export
*Apply to colored people.
Technical Data:
Face recognition:
|
Live body detection |
Visible light + NIR binocular camera, accurate recognition. Live body detection and accurate recognition under various |
|
Face comparison |
Built-in database, supports face capture and real-time comparison with the local data, and create a comparison log |
|
Recognition accuracy |
≥99.5% |
|
Recognition type |
1 : N |
|
Recognition speed |
<500ms |
|
Recognition distance |
0.4-2m |
|
Recognition Height |
1.2-2.2m, angle adjustable |
|
Vertical angle |
60° |
|
Horizontal angle |
40° |
|
Multiple recognition mode |
Face recognition, face recognition + temperature measurement, temperature measurement,Face recognition + mask detection + |
|
Face library |
Supports max. 50000 pcs of faces |
|
Comparison records |
Max.100000 records, export available |
Temperature measurement:
|
Temperature measurement environment |
10-35 (℃) (the best working temperature for body temperature measurement is 16~32℃), there is no wind in the room (see note for details) |
|
Accuracy |
±0.3℃ |
|
Range |
30-45(℃) |
|
Temperature measurement method |
Array |
|
Best distance |
40CM |
|
Response time |
＜300ms |
|
Alarm |
Abnormal temperature alarm (threshold adjustable) |
Face + mask detection:
|
Accuracy |
≥85% |
|
Mask wearing alert |
Voice broadcast |
Voice broadcast:
|
Multiple mode |
Face recognition authentication result broadcast, temperature normal or abnormal result broadcast and mask wearing or not alert broadcast. |
Image sensor:
|
Sensor type |
1/2.8" Progressive Scan CMOS |
|
Effective resolution |
2.0 mega-pixels, 1920*1080 |
|
Min. Lux |
Color 0.01Lux @F1.2(ICR); B/W 0.001Lux @F1.2 |
|
SNR |
≥50db(AGC OFF) |
|
WDR |
≥80db |
|
Lens |
Binocular camera: visible light lens + NIR lens |
|
Focal length |
4mm |
Screen:
|
Size |
7 inch |
|
Resolution |
600*1024 |
|
Display scale |
16:9 |
Audio:
|
Speaker |
2* (8Ω 1W) |

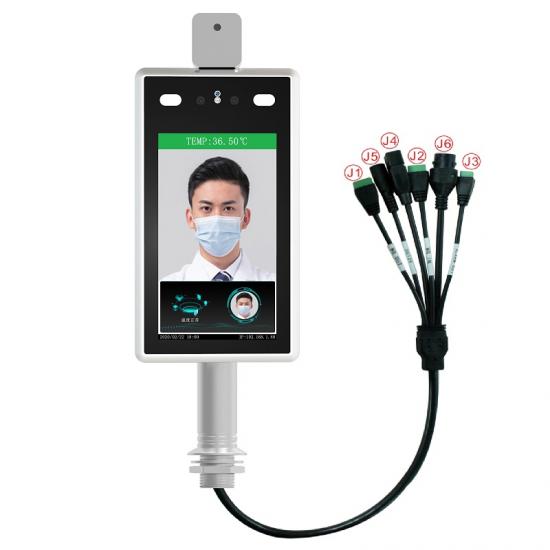

Interfaces:
|
Network |
RJ45 10M/100M self-adaptive Ethernet port |
|
Wiegand port |
Wiegand input and output support, support standard 26bit/34bit format |
|
Alarm output |
1ch |
|
USB port |
1ch (connect the external ID identifier) |
Others:
|
Power supply |
DC12V±25% |
|
Power consumption |
20W(MAX) |
|
Protective grade |
IP34 |
|
Working temperature |
-20℃~60℃（Access control product）；10℃~35℃（Temperature module） |
|
Working humidity |
5~90%, no condensation |
|
Dimension |
123.5(W) *84(T) *361.3(H)mm |
|
N. weight |
1.1kg |
|
Stand diameter |
33mm |
|
Remark |
Default DC12V power adapter |
