CN Safety Gate Tech is a professional manufacturer of intelligent swing gates for supermarket entrances, safe and stable, customized solutions according to needs, logos and welcome messages can be customized.
Item NO.:
LD-B506Payment:
L/C, T/TProduct Origin:
ChinaGoods stock:
1000Shipping Port:
ShekouLead Time:
7-10 working daysLD-B506 Automatic Swing Turnstile for Supermarket Entrance Gate
Product description:
LD-B506 automatic
entrance swing turnstile is designed for supermarket entrance. The modern automatic swing turnstile
installed
at the main entrance opens automatically when the customer enters the aisle or
with a trolley. The infrared sensor detects the upcoming customer, and then
turns on the swing arm. If the customer is from inside the supermarket, the
device will not be turned on to prevent the customer from exiting at the
entrance. It can help supermarkets manage the flow direction.
Product specifications:
|
Model No. |
LD-B506 |
|
Brand |
CN Safety Gate Tech |
|
Size |
φ168*1050 mm |
|
Material |
SUS304, mirror finish stainless steel tube |
|
Channel width |
≤900mm |
|
Passing speed |
35~50 person/minute |
|
Input voltage |
100V~240V |
|
Opening and closing time |
less than 1S |
|
Response time |
0.2S |
|
Service life |
≥3 million times |
Product Features:
1. One-way entrance / control the direction of entry and exit, automatic swing gate / infrared sensor.
2. Automatically open when power is off/return to close after power on, safe entry and exit, avoiding customers by mistake.
3. Convenient access to supermarket carts and strollers.
4. Choose 1.0mm mirror stainless steel, finely polished, the appearance is more beautiful
5. 304 high quality stainless steel material, corrosion resistance, wear resistance, high temperature resistance, good rust resistance.
6. The size can be customized, and the guardrail can be purchased.

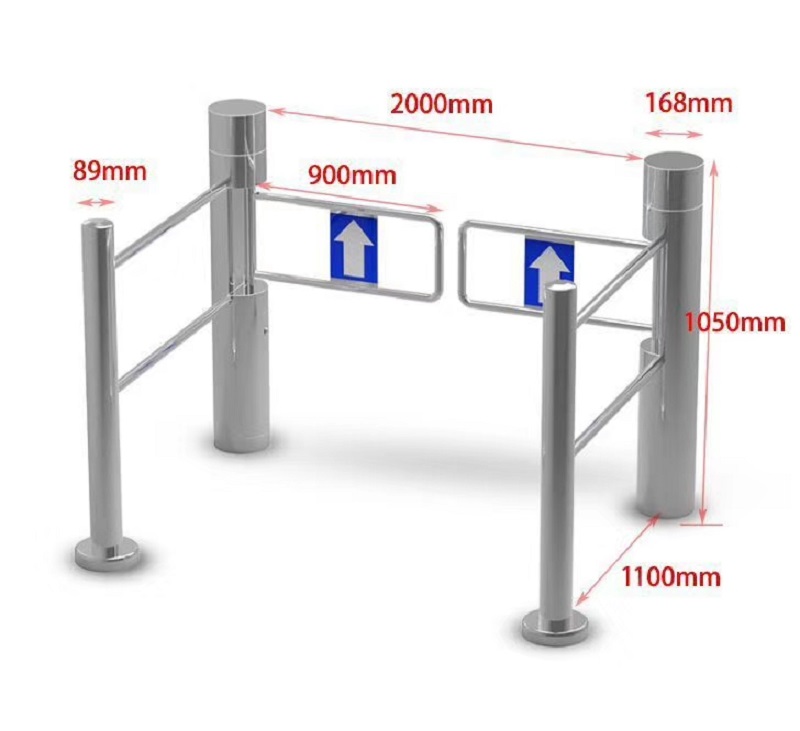

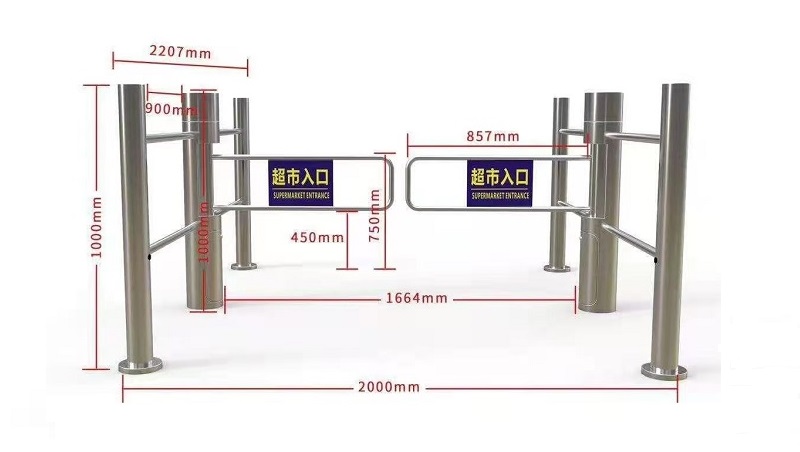

Photo of Dimensions:

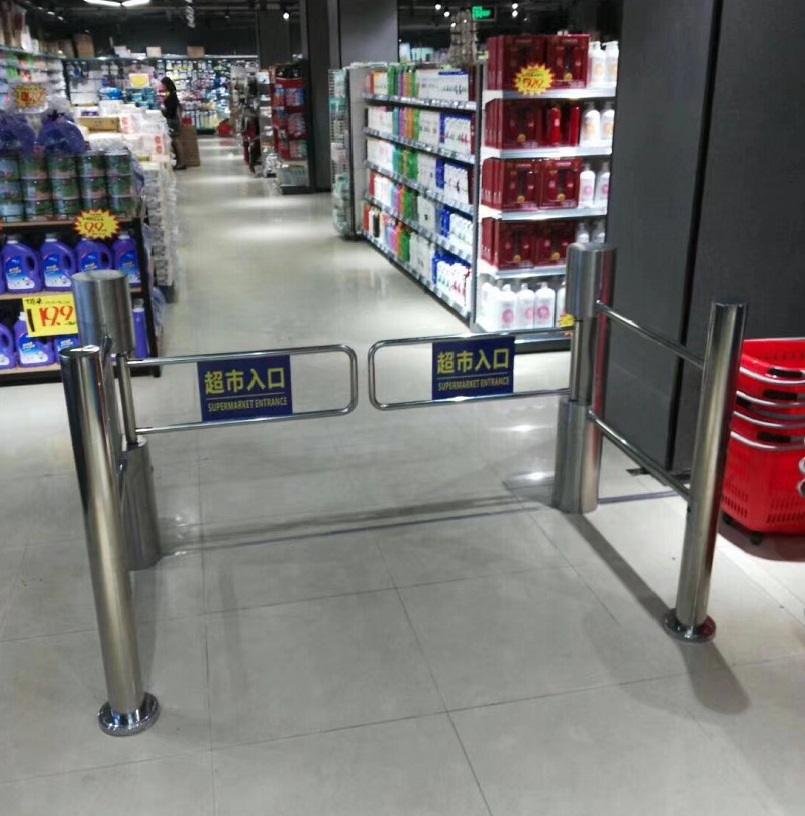

Product application photos:
Leave A MessageThe swing turnstile is an intelligent management device designed to restrict or control access to buildings or safe areas.
LD-B509 swing barrier turnstile is an intelligent channel, which could integrate multi opening way, such as IC card, ID card, QR code, fingerprint, face recognition devices.
Automated swing turnstile gate for handicap, it is the swing turnstile with wide passage at least 800-1000mm , which allows wheelchair to pass in bi-direction. This kind of turnstiles are always required together with standard passage width 600mm turnstile and used in public commercial buildings. Also delivery man or pedestrian with large packages can use this channel.
Drop arm barrier turnstile is made of stainless steel #304, brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use.
Swing barrier gate has the most widely applications with its wider channel width.
The use of swing gates can make people flow through the passage in an orderly manner.
The swing gate turnstile organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies, and adopts a standard electrical interface to the outside, it can facilitate system integration of reading and writing devices such as magnetic cards, barcode cards, ID cards and IC cards.
The swing turnstile is the half height automatic entrance, with different kind of sensor controlled component, it would be suitable for access management and keep the safety of an area.
