Item NO.:
LD-S702Payment:
T/T, LCProduct Origin:
ChinaGoods stock:
100Shipping Port:
ShekouLead Time:

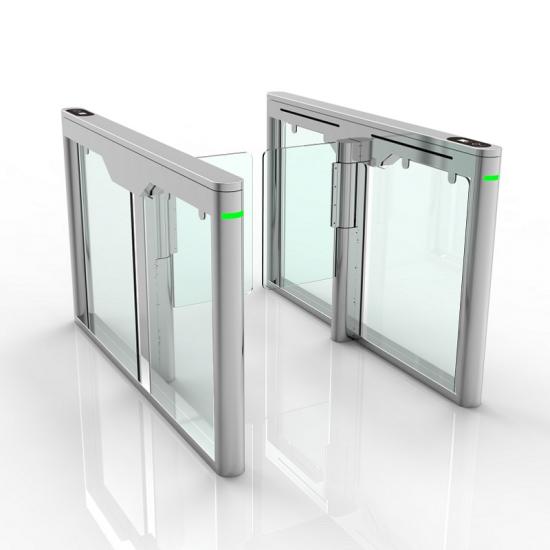

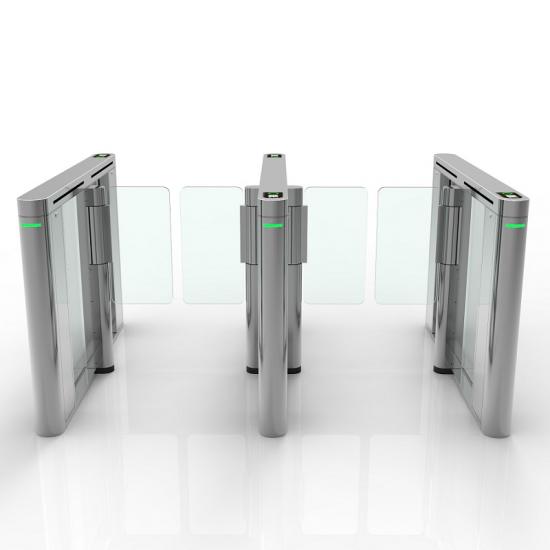

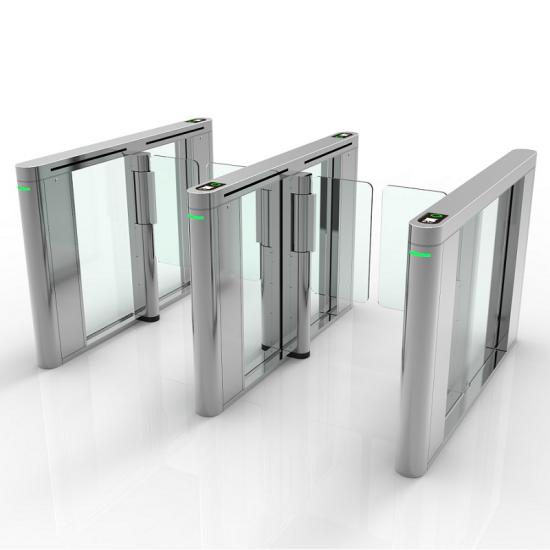

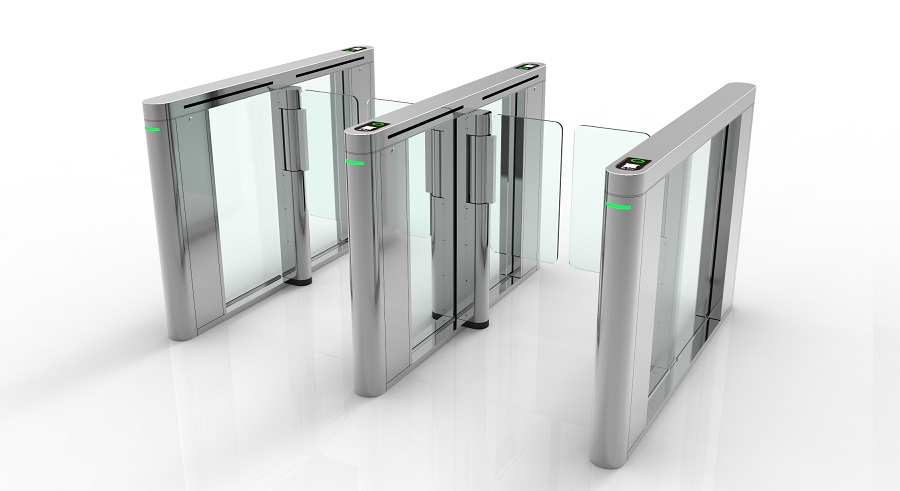

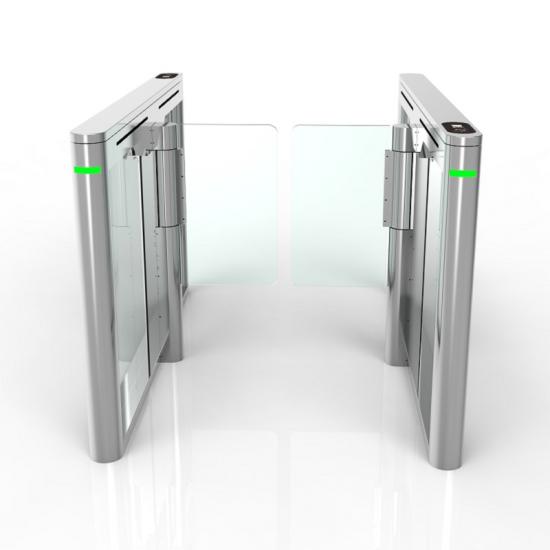

7-10 workdaysLD-S702 Speed Access Control Speed Access Barrier Gate
Speed access barrier gates offer a sleek and stylish choice when you need to balance security requirements with aesthetic desires. With highly reflective surfaces of glass and stainless steel creating a well-proportioned outlook that is professional and modern. Speed gates fit perfectly in lift lobbies, visitor receptions, and VIP areas of some of the World's most iconic buildings, and it seamlessly integrated into the office without any sense of incongruity, which level-up the safety, security, and the high-class image of the building and internal design.
Product Features:
1. DDA width gates can accommodate all patron
2. Heavy traffic, especially at busy times
3. Full-height glass design can be used to provide a highly secure barrier for semi-maned or mainly unattended reception areas
4. High-quality architecture and design
5. They can be connected remotely to allow remote diagnosis and allow remote access
Product specifications:
|
Moduel No. |
LD-S702 |
|
Size |
1400*120*980mm; |
|
Material |
304 stainless steel, acrylic |
|
Channel width |
standard 600mm |
|
Thickness of the cabinet |
1.5mm |
|
Drive motor |
DC 24V brushless servo motor, low noise |
|
Traffic direction |
One-way traffic/two-way traffic |
|
Passing speed |
50~55 persons/minute |
|
Opening methods |
ID/IC card and other readers to verify opening, infrared induction automatic opening, button opening, etc. |
|
Gate opening signal |
dry contact signal |
|
Protection functions |
clutch anti-collision, infrared anti-pinch, infrared alarm for illegal intrusion |
|
Life |
not less than 9 million times |
|
Number of infrared |
6 pairs |
|
Power |
24 V, 100W |
Product Applications:

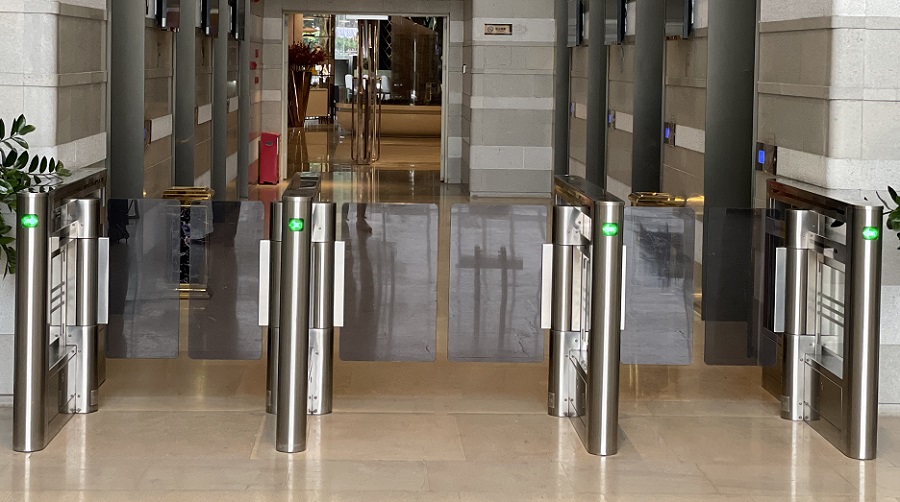

Speed Gate Turnstiles are used in high-traffic areas. They are often used in office buildings, corporate lobbies, subway terminals, and university facilities. These turnstile gates are used to process large crowds of pedestrians without causing a backup. Access control speed gates are very suitable for any modern application due to its stylish and exquisite features.
Leave A MessageSpeed turnstile gate use fast motors, beautiful appearance, fast opening speed, etc., suitable for corporate headquarters, high-end commercial buildings, high-end office buildings, interstellar hotels, etc.
The speed turnstile gate is directly driven by a motor to open the door quickly, which is very suitable for places with heavy traffic. And there is no noise, very suitable for office buildings, swimming pools, hotels, etc.
Modern design, faster pass speed, the speed gate is usually used at the high-end and crowded places such as clubs, smart buildings, villa communities, hotel lobbies, etc.
Low noise speed gate is the fast passage, especially suitable for places with with heavy traffic. It is glass turnstile gate, slim and modern desigan.
Speed gate is upgraded glass security swing turnstile which allows quick pass, always used as lobby entrance access control barrier gate in high traffic area . It is slim design, glass swing panel, It can be one -way or bi-direction passage, passage width and swing panel height can be customized made accordingly.
Speed gate is stylish glass swing turnstile gate with full stainless steel cabinet and fiber glass or acrylic sliding panel, it is created for access control with high requirements for design and passage’s comforts. Speed gate can provide fast, convenient contact-less passage.
CN Safety Gate Tech Speed gate offers high efficiency contact-less bi-direction passage. Integrated with access control system, speed gate allows authorized person quick pass, and prevent unauthorized passage. The design of speed gate combined the increasing technical requirement on the entrance gate but also the comfort of passage.
LD-S709 is a fast, streamlined speed gate with elegant design, it is made of 304 stainless steel with vacuum ion plating and anti-fingerprint treatment, which makes its flawless appearance.
