LD-PB93 Access control folding boom car parking vehicle barrier

Access Control Folding Boom Car Parking Vehicle Barrier

Car parking vehicle barriers are special access management equipments used to restrict vehicles on roads. They are now widely used in highway toll stations and parking lot systems to manage vehicle access. The electric vehicle barrier can realize boom lift and boom fall by wireless remote control only, or it can be automatically managed through the parking lot management system (ie IC card swipe management system), and the card will be released when entering the venue. When leaving the venue, the vehicle will be automatically released after parking fee is charged.

Folding boom vehicle barrier consists of reducer casing, motor, (or hydraulically) drive mechanism, balancing device, chassis, boom bracket, and boom.

Main Parameters:

The product design of the folding boom parking barrier is reasonable. It adopts a connecting boom reducer. It has the characteristics of simple structure, stable operation, manual operation for power failure, automatic boom lifting, convenient installation, use and maintenance, safe and reliable, and beautiful appearance.

The product performance of folding boom vehicle barrier:

1. Simple: The crank-link mechanism is adopted for transmission, which reduces mechanical failures, has low noise, no pollution, and maintenance is not required.

2. High-sensitivity magnetic limit control system. Low voltage DC control, safe and reliable, accurate limit.

3. The long boom barrier has a special manual and automatic boom lifting device after power failure.

4. The special balance mechanism always keeps the rising boom vertical and the falling boom horizontal, and stable, and the non-constant speed operation eliminates the phenomenon of the boom being stopped during the lifting process and the boom accelerating too fast when starting.

5. The paint of chassis is imported yellow paint, which is anti-ultraviolet, and it is not easy to change color when exposed to sunlight.

6. The barrier booms are made of high-strength aluminum alloy tubes, wrapped with anti-vibration and anti-collision styrofoam, and the surface is covered with yellow and black reflective film. The eye-catching reflective effect can alert the driver in time.

7. Advanced motor with thermal protection function. When the temperature is greater than 135 degrees, the power is automatically cut off for preventing from burning out.

8. The service life is more than 2 million times.

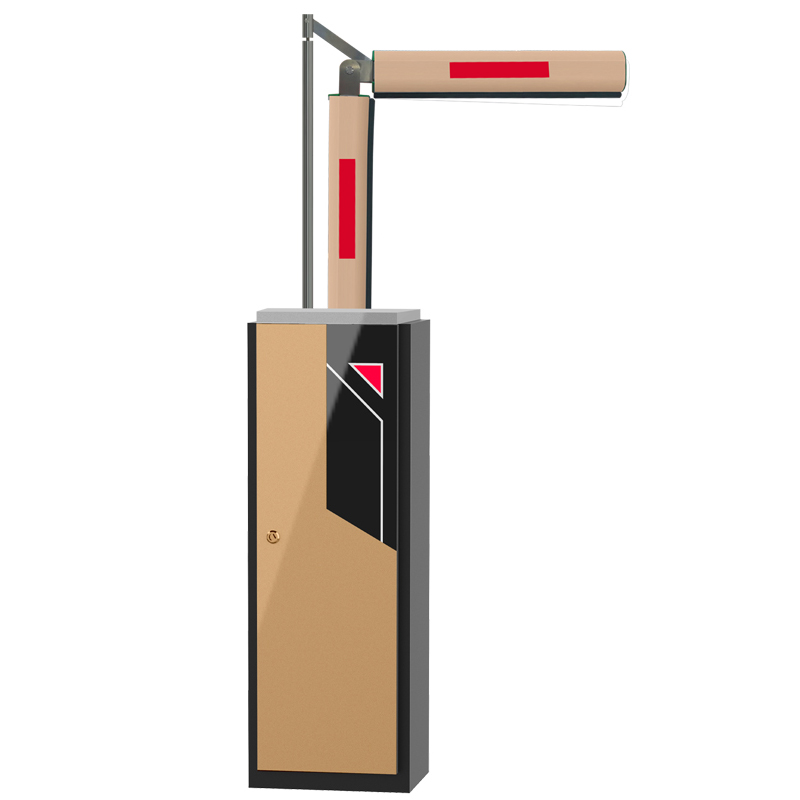

The unique characteristics of folding boom parking barriers: The special function of the folding boom vehicle barrier is that when the entrance and exit of the building are relatively wide, and there is a building on the top that limits the height, when the vertical boom is erected, it will be affected by the top building. At this time, we need the folding boom and it can be retracted without affecting its operation.

The applications of folding boom parking barriers:

1. Highway toll station

2. Parking lot

3. Community
