Item NO.:
LD-PB94Payment:
T/T, L/CProduct Origin:
Made in ChinaColor:
SilverGoods stock:
20Product weight:
40 kgsShipping Port:
ShenzhenLead Time:
3 work days
Vehicle barrier gate is a facility which is installed at the entrance and exit of parking lots. It manages the access of vehicles effectively and plays a role of “one block for one car”in parking lots. Vehicle barrier gate is also a toll barrier gate. It can also work with toll collection system of parking lots and improve the management efficiency of parking lots.
Vehicle barrier gates are classified mainly into straight-boom barrier gate, folding-boom barrier gate, and fencing-boom barrier gate. There are different specifications, lifting and falling speeds for different booms.

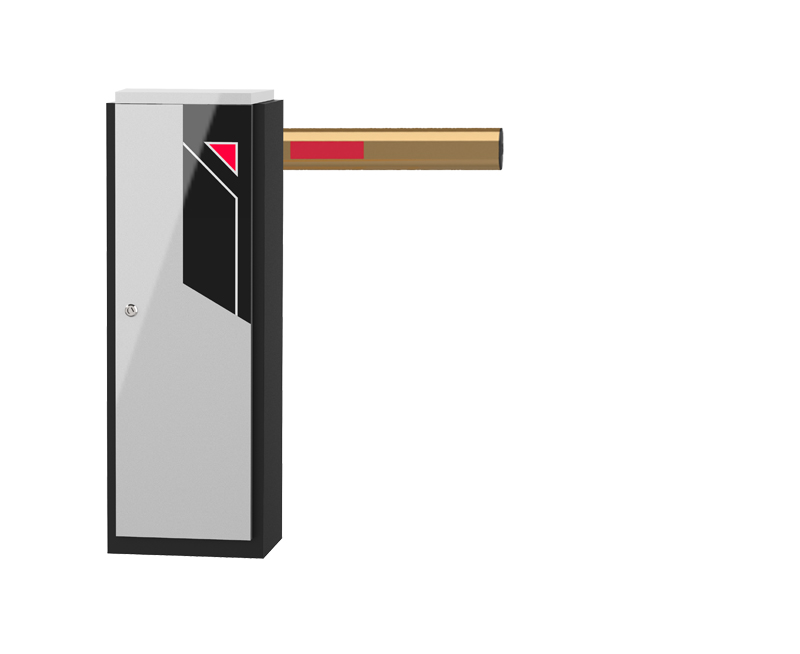

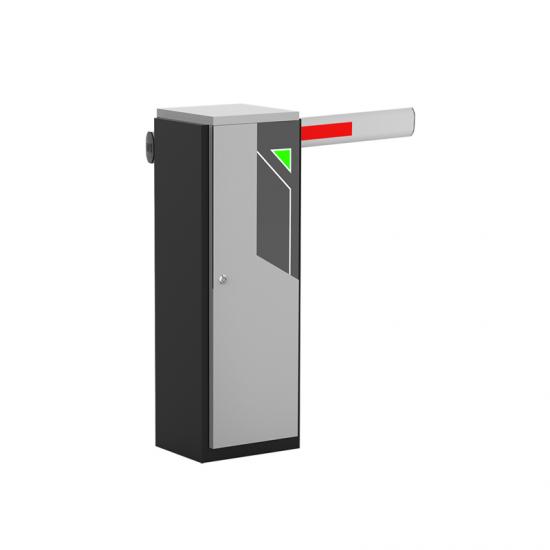

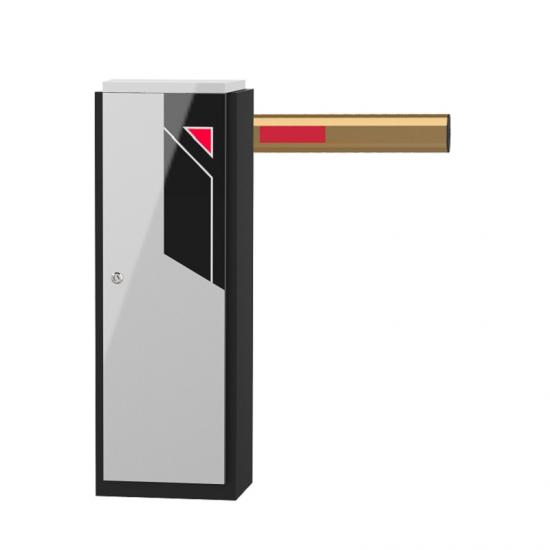

Straight-boom vehicle barrier gate is the most used and most popular. It is also called parking barrier gate and straight arm barrier gate. It consists of control cabinet and a straight barrier boom. It has the characters of high lifting speed, simple structures and stable performance. It is installed usually at the entrance and exit of residential community.
Product Parameters:
|
Product Size |
350mm*282mm*1000mm |
|
Operating temperature |
-20℃ ~ 70℃ |
|
Lever and drop speed |
2s~6s( adjustable) |
|
Barrier direction |
Adjustable left and right |
|
Motor |
150W brushless two-stage variable speed all-copper DC motor |
|
Working voltage |
220v AC voltage/24v DC voltage |
|
Structure mode |
Crank and rocker mode Steel structure |
|
Anti-smashing protection |
Rebound in case of resistance, electronic anti-smashing, radar anti-smashing, power-off mechanical self-locking |
CN Safety Gate Tech’s straight-boom vehicle barrier gate has the following advantages and characteristics.
*The left and the right movements are adjustable.
*24V150W Brushless Level 2 Variable speed full-copper DC motor (standard steel mold, aluminum gearbox).
*When the boom is in the horizontal or vertical state, the movement structure is completely self-locked, which can effectively protect the reducer from external impact.
*The speed: 3-6 S adjustable.( 0.8-3 S customizable.)
*Rebound in case of resistance.
*It has an automatic shutdown-delay protection function, which effectively protects the motor from burning out due to the limit switch damaged.
*Compared with ordinary barrier movements, the parts are reduced by about 20%, and the failure is less.
*Control cabinet thickness: 1.8 mm.
*With traffic indicator.
CN Safety Gate Tech customizes the vehicle barrier gates applying to the power of 110-120V/60 Hz for users in North America and South America. Vehicle detectors and ground sense coils are also provided.
Leave A MessageBoom barriers also called parking barrier , which is a aluminum bar or pole pivoted to allow vehicle or pedestrian access. It is widely used in commercial and residential ficilities.

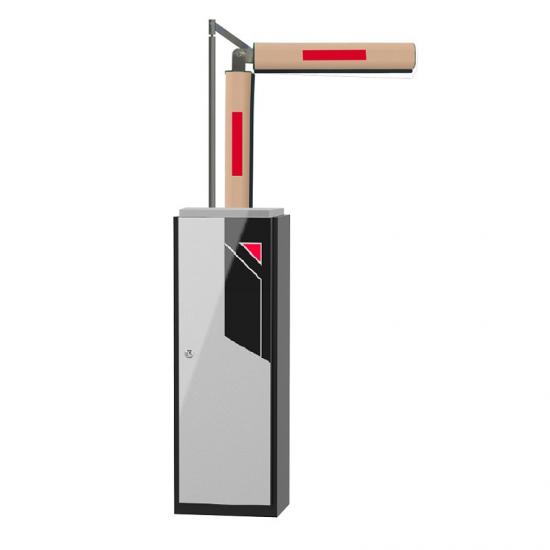

Car parking folding boom vehicle barrier is the parking barrier which can be retracted when there is a building on the top that limits the height.
This is the smart parking management system, VIP customer can use the ID card to swipe to enter , normal customer can print the ticket with QR code and charge parking fee on cashier or guard before leaving the parking lot.

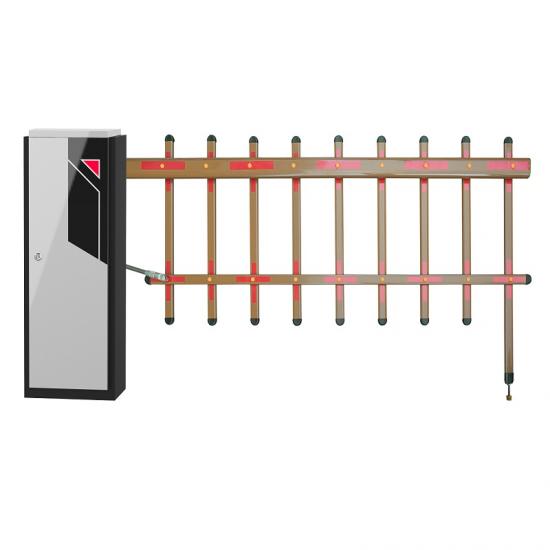

Fence boom parking barrier is basically a vehicle access control device installed in each community, which is like a gatekeeper in the community.
Intelligent vehicle boom barriers are used to manage the access of vehicles in parking lot system by remote control or IC swipe card management system.
Boom gate or barrier gate system uses a bar to block vehicle traffic, barrier arms for road access control. Used in both single and dual gate applications.

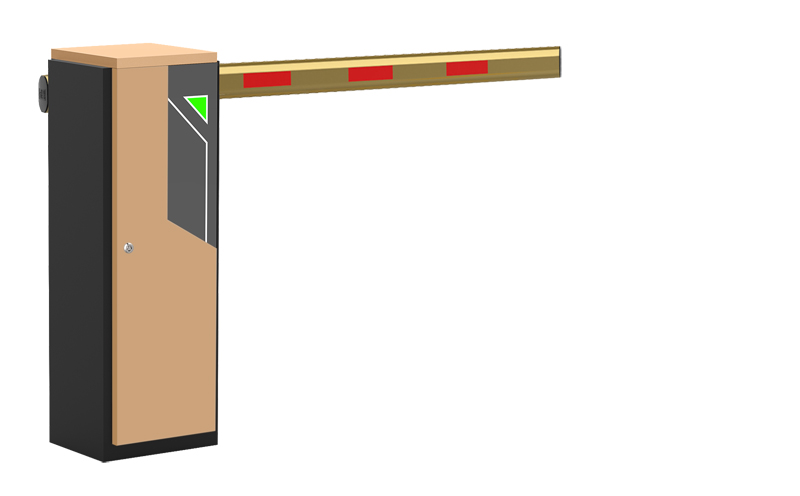

LED light boom automatic vehicle barrier is popular in Europe and its highlight is to avoid hitting barrier boom in the dark.
Parking boom barrier loop detectors are used in combination with vehicle detection loops to detect vehicular traffic traveling or stopping overhead in a roadway.
