Smart Parking Management Ticket System For Vehicle Access Control

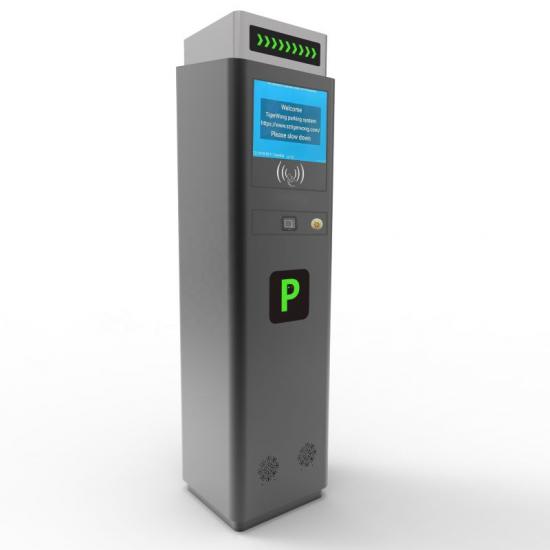

1.  Entry And Exit Ticket Box System

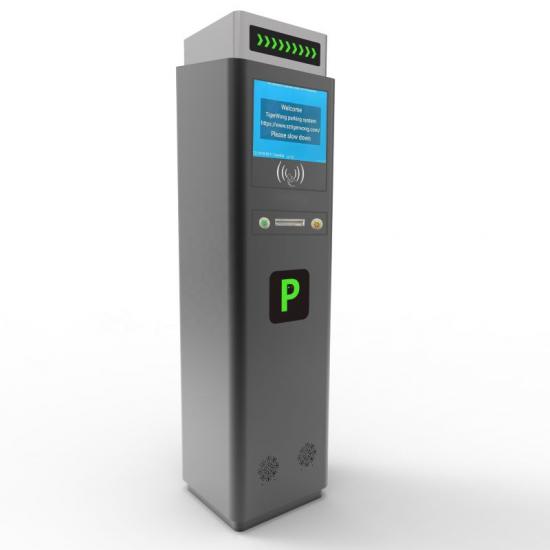

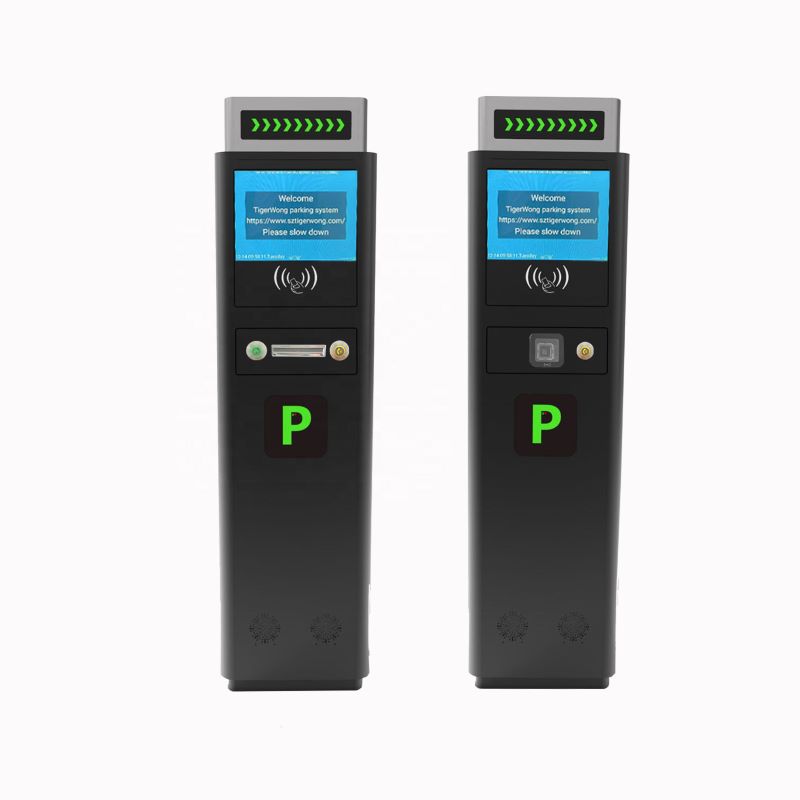

The parking ticket dispenser is divided in three modules. This allows you to scale and configure the device according to needs and requirements of your specific application. The three modules define themselves as follows:

Processing module: The processing module is the main module of the system, hosting the main PCB board and all physical interfaces (USB, RS232, Ethernet). It is capable of accept tickets, read them (1D/2D Codes or RFID tickets), print and either return to the user or collect them within the device.

Feeder module: The feeder module is equipped with a double feeder and pulls in its tickets via a fanfold or a roll into the system. The tickets are also separated within the feeder module and then feed to the processing module.

Park module: The third module in the system is the park module, which allows the device to handle three different tickets at the same time. This is possible because the park module allows two tickets to be parked within the unit, while a third ticket is being processed.

In a potential use-case of a parking facility, the system could be configured in a combination of these modules:

Parking entry: For the entry the processing and feeding module would be necessary in order to feed, print and dispense the ticket to the customer.

Payment terminal: In this case it would be possible to benefit from all three modules, in order to handle multiple tickets, vouchers, etc. at the same time also print new tickets as an e.g. receipt.

Parking exit: When leaving the parking facility, it could be sufficient to only use the processing unit, to verify a paid ticket and either reprint the ticket and return it to the customer or capture into the device.

2.    Parking Barrier Arm

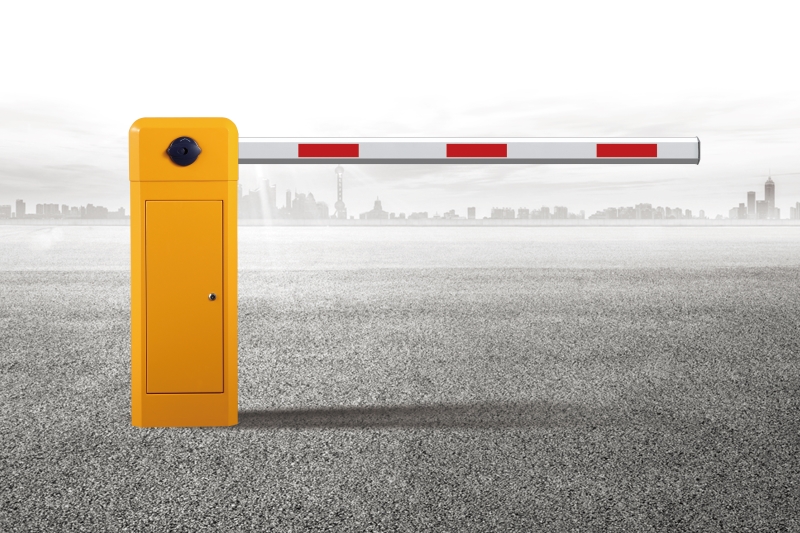

Barrier Boom Functions

1.The operation speed can be adjusted (1.5s to 6s).

2.Barrier gate up&down signal relay switch output.

3.R&G Traffic light relay switch signal output.

4.External loop detector signal anti-smashing interface.

5.Infrared sensor signal anti-smashing interface.

6.Count mode interface.

7.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.

8.High-sensitivity arm auto reverse function (intensity can be adjusted).

9.Parking system interface.

10.RS485 communication interface.

11.Power off the backup battery interface.

3.    Parking System Management software

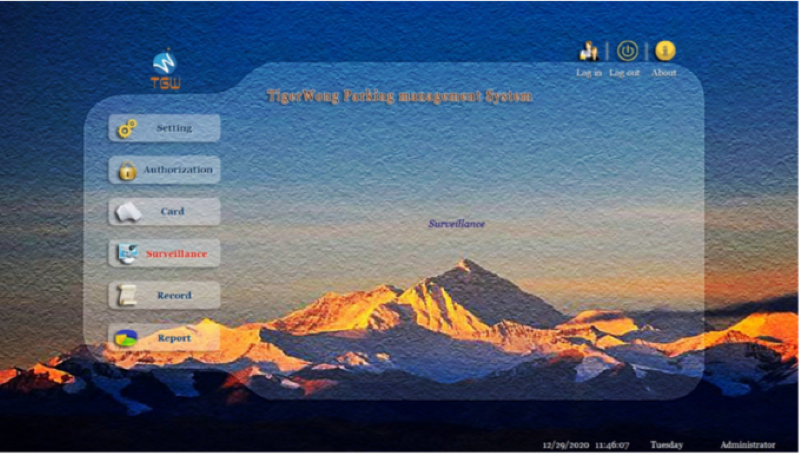

Main interface

Setting

Set basic parameters, such as: report title, display screen content, camera IP, etc

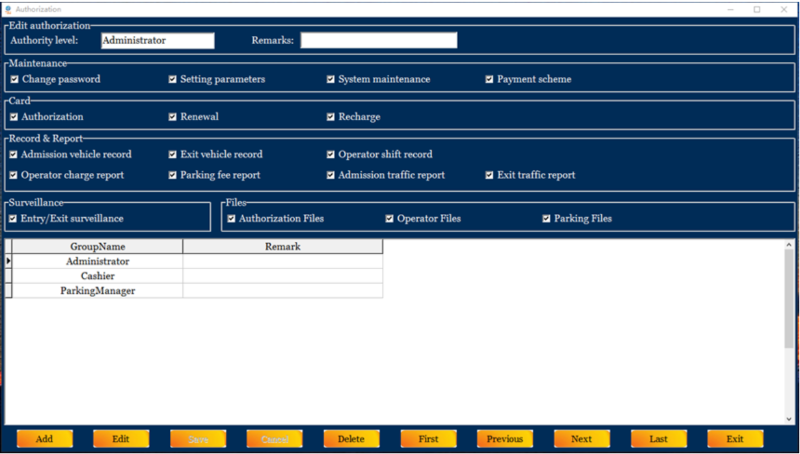

Authorization

Administrator's authorization and records

Records

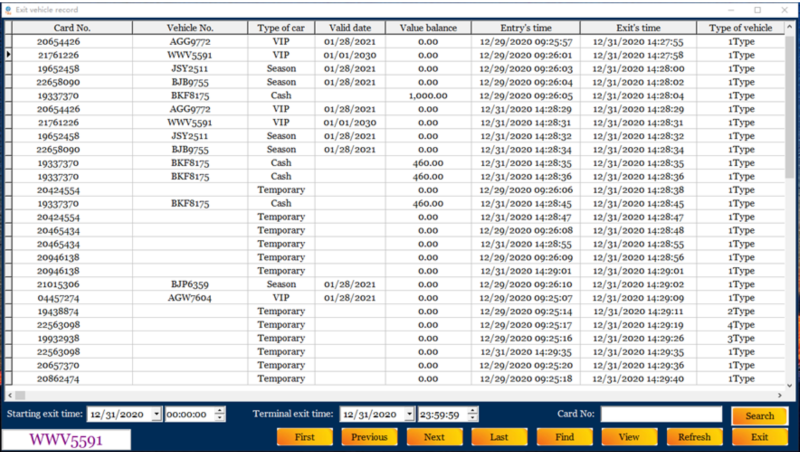

Records of all transaction and picture captured of entry and exit of vehicles, card usage transaction and searching etc.

Consist of Vehicle Entry records, Vehicle Exit records, card usage transactions, car parking real time monitoring, operator shift changing schedule and shift transaction records etc

Report

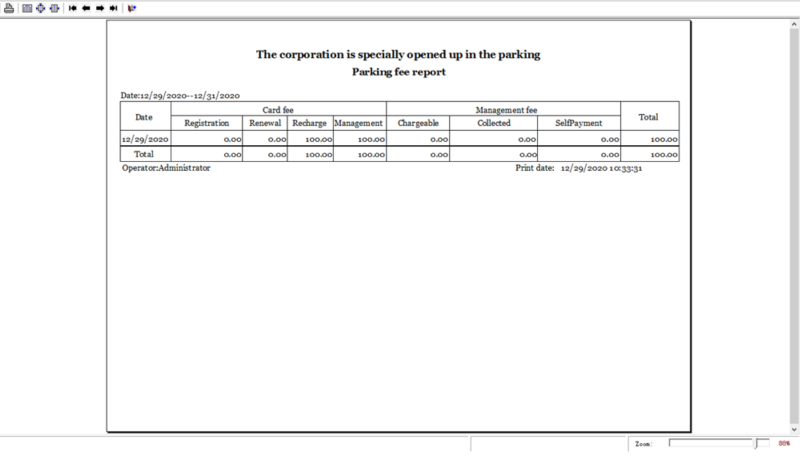

Multi type of report available base on the daily, monthly, yearly of entry and exit of the vehicles; daily, monthly and yearly fee collection report for every operator.

4.    Accessories

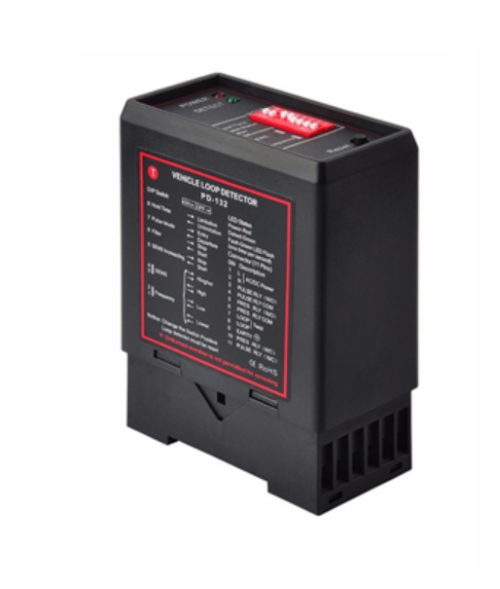

4.1  Vehicle detector (English Version)

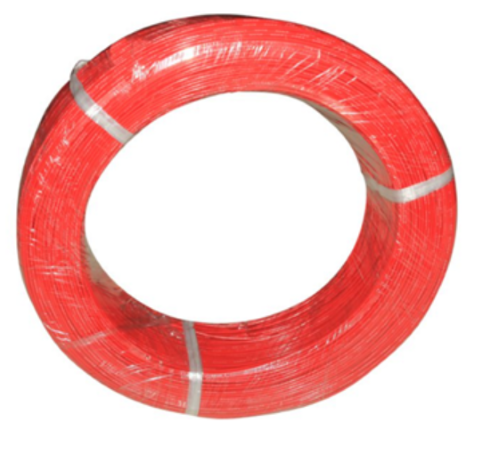

4.2  Coil Loop (50 meters per roll)

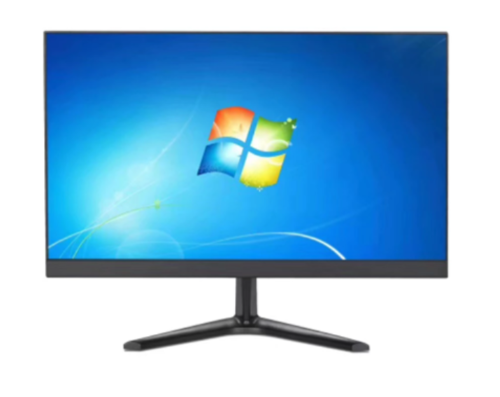

4.3  PC display 21.5 Inch (Includes keyboard & mouse)

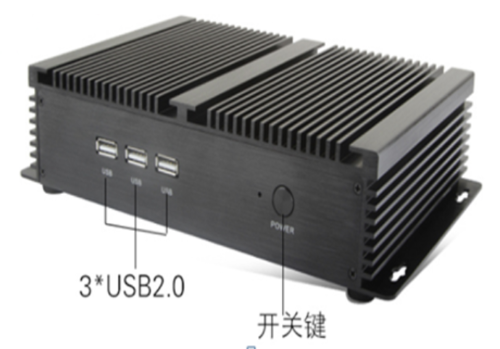

4.4  Management PC (i5 with X64 bit operation system)

4.5  Exit receipt printer & Printer ticket paper (80*80mm)

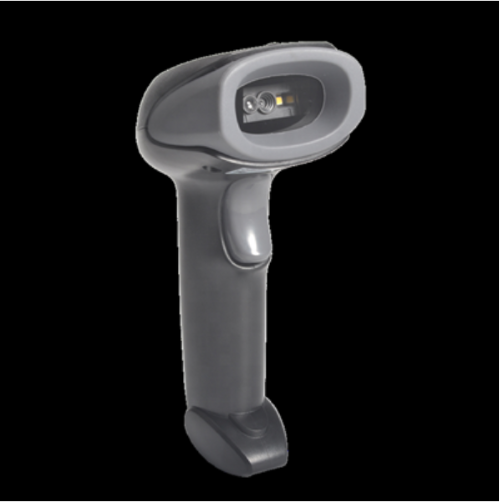

4.6 Ticket Reader (Exit for Cashier)

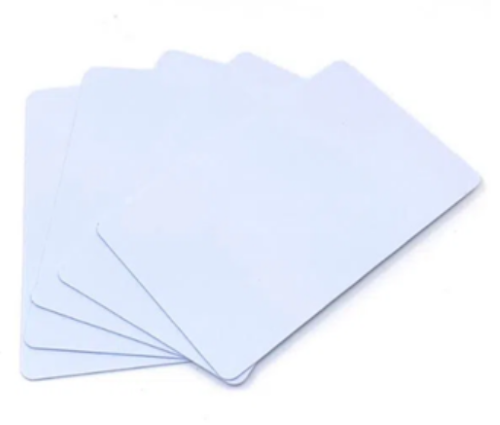

4.7 IC / ID Card
