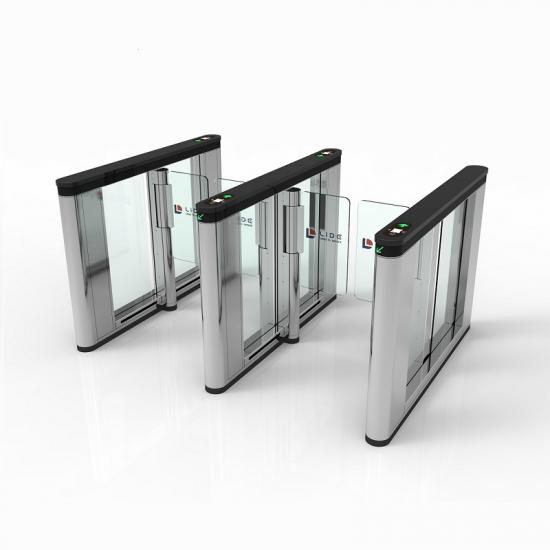

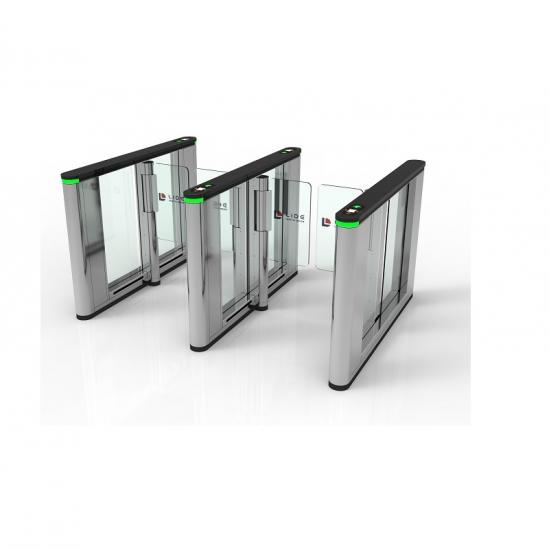

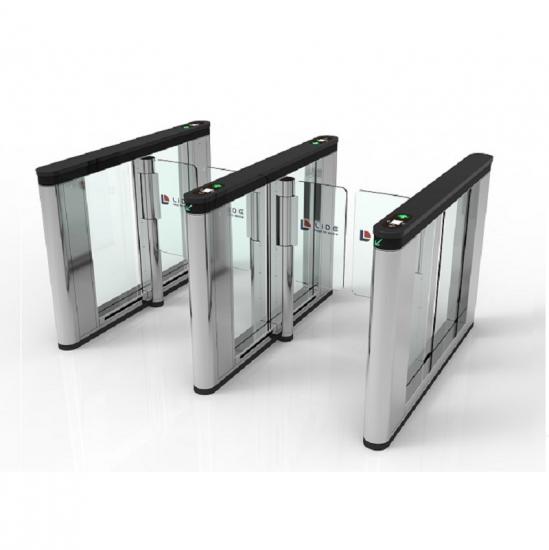

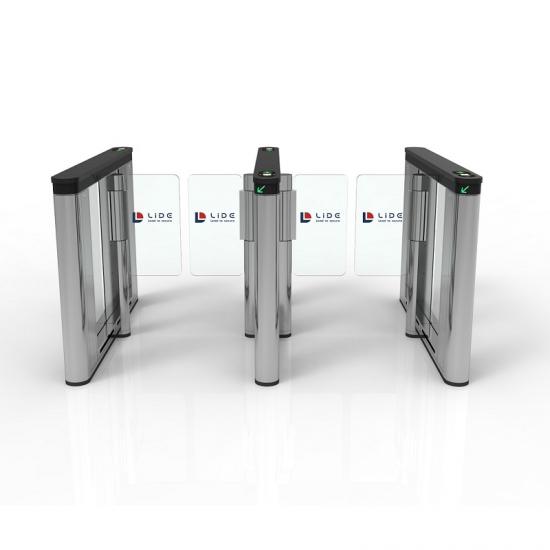

Speed gate is upgraded glass security swing turnstile which allows quick pass, always used as lobby entrance access control barrier gate in high traffic area . It is slim design, glass swing panel, It can be one -way or bi-direction passage, passage width and swing panel height can be customized made accordingly.
Item NO.:
LD-S705Goods stock:
100Lead Time:
5-10 workdays
Speed gate is one of the slim swing turnstile with high throughput. Differ from normal optical turnstile, optical fast lane speed gate adopts vertical brush-less DC motor direct drive and more than 8 pairs of optical sensors and encoder limit, which can be accurate to 1°. These can ensure the operation of the turnstile: fast, stable, and no noise.

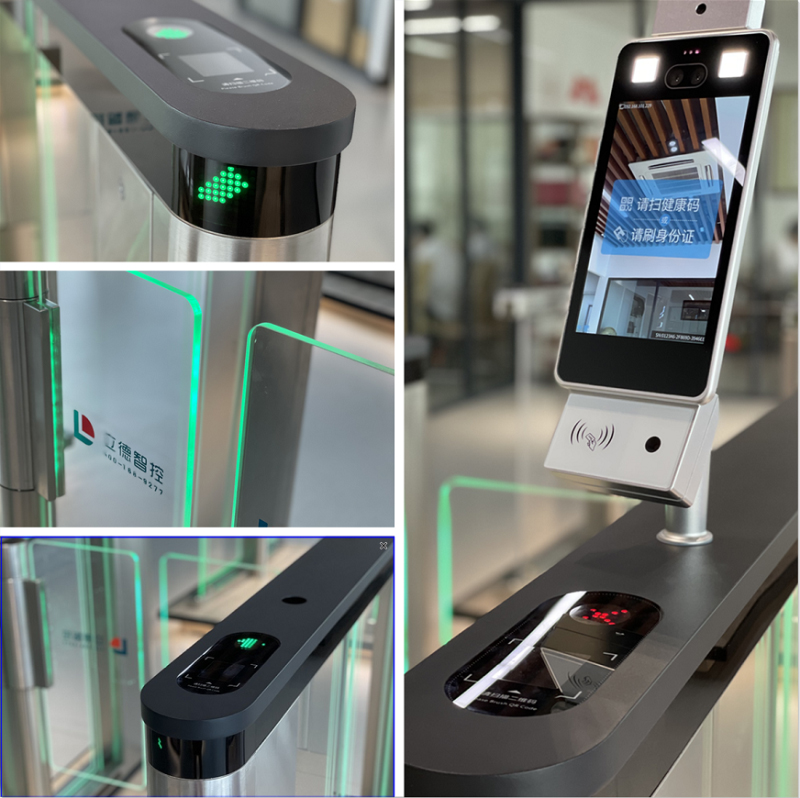

Made of high grade original brushed stainless steel or mirror stainless steel with black steel cover on the top, elegant RFID card reader, QR code scanner, Bar code reader be installed under the swipe panel. Glass or acrylic swing panel width & height can be customized made, company logo can be screen printed on it. Indication light shows the passage direction and status.
Advantages:
1. Speed gate chassis is beautiful, generous, durable, and can be used in indoor environments.
2. The main control of the speed gate adopts full data management, and all function parameters are digitally set, making the setting and operation easier.
3. Vertical brush-less DC drive motor, the operation is stable and reliable, the gate movement is more coordinated and synchronized.
4. Speed gate has complete functions, with illegal intrusion alarm, trailing alarm, reverse processing, gate anti-trapping, and free passage settings.
5. Speed gate supports single or multiple pass, free passage when there is fire situation or power off.
6. Complete interface modes The NPN infrared beams used on the market can use the infrared induction sequence to set the positive and negative.
7. Control panel can be set with voice broadcast, the greeting language, direction of the entrance and exit can be set in the menu, and face recognition equipment can be connected.
8. Automatic reset and calibration function after power failure.
Model No.
LD-S705
Size
1500*130*980mm
Material
304 stainless steel, acrylic
Channel width
standard 600mm
Thickness of the cabinet
1.5mm
Drive motor
DC 24V brush-less servo motor, low noise
Traffic direction
One-way traffic/two-way traffic
Passing speed
50~55 persons/minute
Opening methods
ID/IC card and other readers to verify opening, infrared induction automatic opening, button opening, etc.
Gate opening signal
dry contact signal
Protection functions
clutch anti-collision, infrared anti-pinch, infrared alarm for illegal intrusion
Life
not less than 9 million times
Number of infrared
8 pairs
Leave A MessageSpeed turnstile gate use fast motors, beautiful appearance, fast opening speed, etc., suitable for corporate headquarters, high-end commercial buildings, high-end office buildings, interstellar hotels, etc.
The speed turnstile gate is directly driven by a motor to open the door quickly, which is very suitable for places with heavy traffic. And there is no noise, very suitable for office buildings, swimming pools, hotels, etc.
Modern design, faster pass speed, the speed gate is usually used at the high-end and crowded places such as clubs, smart buildings, villa communities, hotel lobbies, etc.
Low noise speed gate is the fast passage, especially suitable for places with with heavy traffic. It is glass turnstile gate, slim and modern desigan.
Speed gate is stylish glass swing turnstile gate with full stainless steel cabinet and fiber glass or acrylic sliding panel, it is created for access control with high requirements for design and passage’s comforts. Speed gate can provide fast, convenient contact-less passage.
CN Safety Gate Tech Speed gate offers high efficiency contact-less bi-direction passage. Integrated with access control system, speed gate allows authorized person quick pass, and prevent unauthorized passage. The design of speed gate combined the increasing technical requirement on the entrance gate but also the comfort of passage.
LD-S709 is a fast, streamlined speed gate with elegant design, it is made of 304 stainless steel with vacuum ion plating and anti-fingerprint treatment, which makes its flawless appearance.
Customs Checkpoint High-speed Swing Barrier Gate is a kind of high-speed double-gate interlocked swing turnstile which is installed in the ports of entry and exit, such as airport and wharf.
