Item NO.:
LD-S708Payment:
L/C, T/TProduct Origin:
ChinaColor:
PlataGoods stock:
100Product weight:
85 kgsShipping Port:
ShekouLead Time:
7-10 días de trabajo

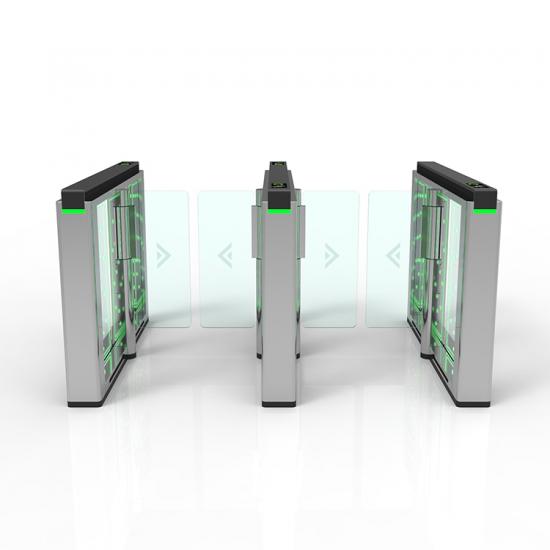

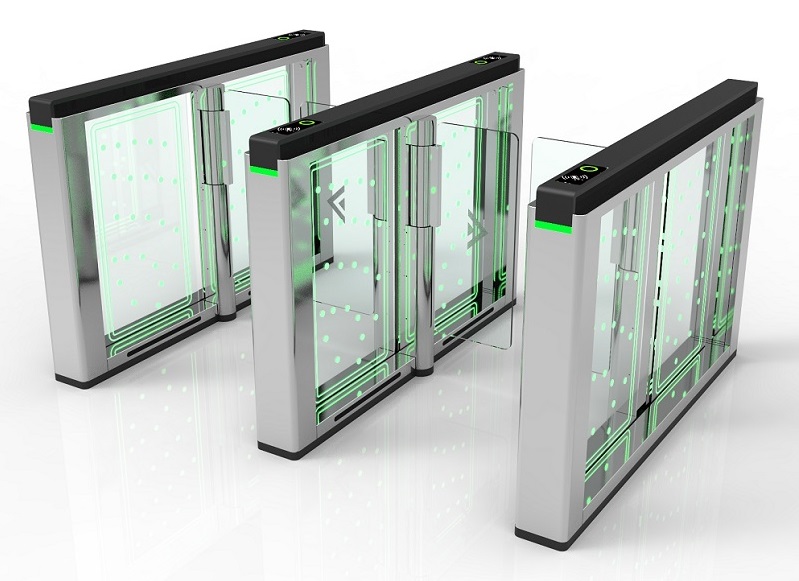

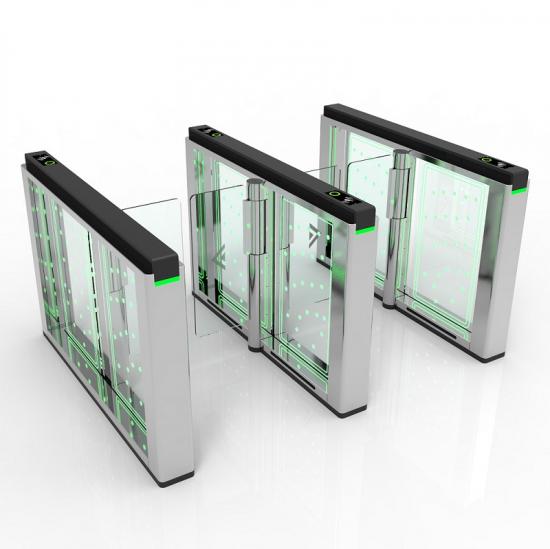

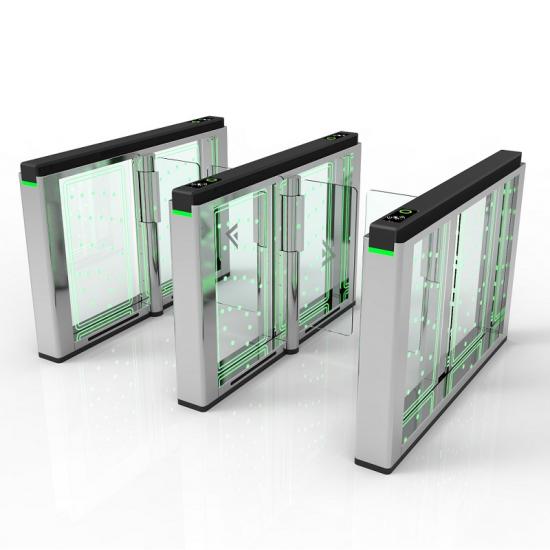

LD-S708 access control speed gate is our latest desinged glass turnstile gate which has a highger performance but lower cost. It's DC brushless motor is special desinged, and work as a servo motor, running with a very low noise, with it's slim body and fast pass speed, very suitable for indoor application places such as high-end commercial buildings, high-end office buildings, interstellar hotels and other offices and reception halls.
Product features:
| Moduel No. | LD-S708 |
| Brand | CN Safety Gate Tech |
| Size | 1500*160*1015mm; |
| Material | 304 stainless steel, acrylic |
| Channel width | standard 600mm |
| Thickness of the cabinet | 1.5mm |
| Drive motor | DC 24V brushless motor, low noise |
| Traffic direction | One-way /two-way traffic |
| Passing speed | 50~55 persons/minute |
| Opening methods | ID/IC card, QR code, facial recogntion, fingerprint, infrared induction automatic opening, button opening, etc. |
| Life | not less than 9 million times |
| Number of infrared | 8-12 pairs |
| Open time | 0.5-0.8s |
Product features:
1. 304 brushed stainless steel material, laser cutting technology, beautiful appearance;
2. DC brushless anti-collision movement, clutch braking, special designed motor drive module drive, stable and reliable movement, low noise, lost cost.
3. Using a high-precision angle encoder as a sensor to monitor the movement trajectory in real time, the equipment runs more smoothly and the movement life is longer;
4. The baffle switch speed is fast, and the passing rate is high;
5. Infrared beam technology monitors the traffic status of personnel in real time, effectively preventing trailing and recoil;
6. After the power is off, the baffle opens automatically to form a transparent passage, which meets the requirements of fire protection;
7. Fast identity authentication technology can accurately and efficiently identify IC cards, ID cards, magnetic cards or barcodes;
8. Sound and light or voice prompt function, beware of illegal entry or irregular passage.

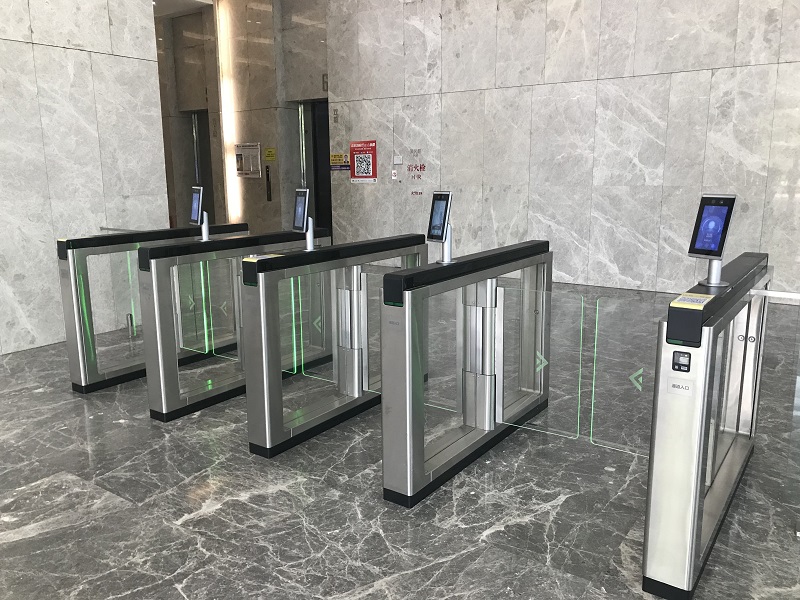

Application photo:
Leave A MessageSpeed turnstile gate use fast motors, beautiful appearance, fast opening speed, etc., suitable for corporate headquarters, high-end commercial buildings, high-end office buildings, interstellar hotels, etc.
The speed turnstile gate is directly driven by a motor to open the door quickly, which is very suitable for places with heavy traffic. And there is no noise, very suitable for office buildings, swimming pools, hotels, etc.
Modern design, faster pass speed, the speed gate is usually used at the high-end and crowded places such as clubs, smart buildings, villa communities, hotel lobbies, etc.
Speed gate is upgraded glass security swing turnstile which allows quick pass, always used as lobby entrance access control barrier gate in high traffic area . It is slim design, glass swing panel, It can be one -way or bi-direction passage, passage width and swing panel height can be customized made accordingly.
Speed gate is stylish glass swing turnstile gate with full stainless steel cabinet and fiber glass or acrylic sliding panel, it is created for access control with high requirements for design and passage’s comforts. Speed gate can provide fast, convenient contact-less passage.
CN Safety Gate Tech Speed gate offers high efficiency contact-less bi-direction passage. Integrated with access control system, speed gate allows authorized person quick pass, and prevent unauthorized passage. The design of speed gate combined the increasing technical requirement on the entrance gate but also the comfort of passage.

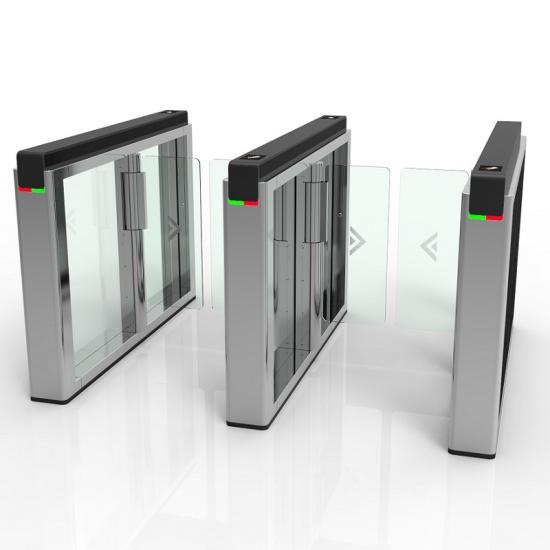

LD-S709 is a fast, streamlined speed gate with elegant design, it is made of 304 stainless steel with vacuum ion plating and anti-fingerprint treatment, which makes its flawless appearance.
Customs Checkpoint High-speed Swing Barrier Gate is a kind of high-speed double-gate interlocked swing turnstile which is installed in the ports of entry and exit, such as airport and wharf.
