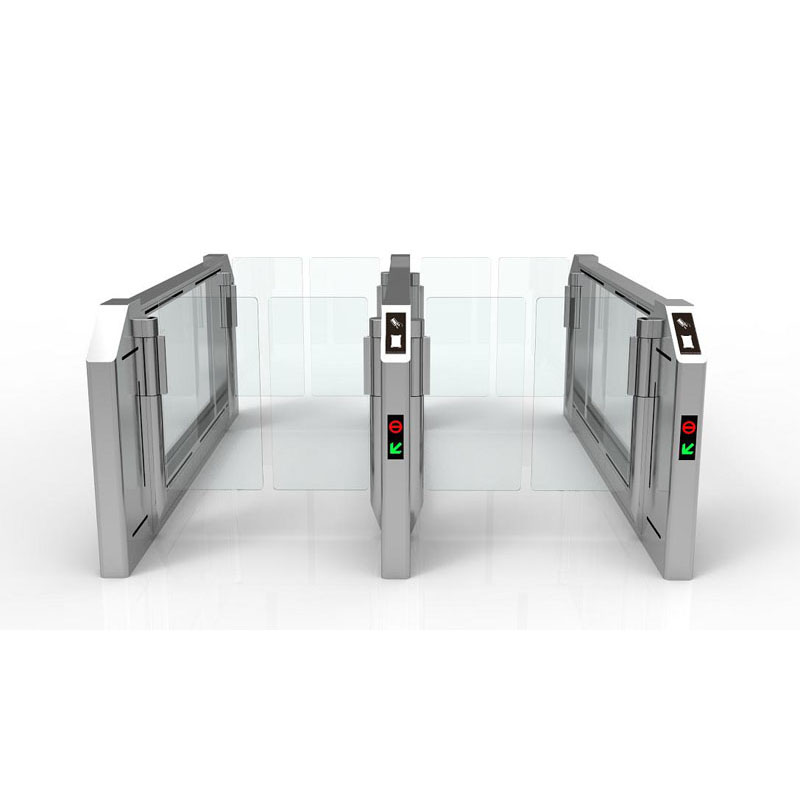

Customs Checkpoint High-speed Swing Barrier Gate is a kind of high-speed double-gate interlocked swing turnstile which is installed in the ports of entry and exit, such as airport and wharf.
Item NO.:
LD-S707Payment:
T/T, L/CProduct Origin:
Made in ChinaColor:
SilverGoods stock:
10Shipping Port:
ShenzhenLead Time:
7 work daysAirport customs AB double-gate RFID swing barrier gate is also called glass wing double-gate interlocking swing barrier gate.Tempered glasses are on both side, and they are transparent and bright, simple and generous. First-class brushless DC motor and precise positioning encoder are adopted. They Ensure that the door swing rotates quickly and accurately, smoothly and silently, low power consumption, energy saving and environmental protection. It is suitable for various high-end and high-security indoor occasions such as financial institutions, government secret office areas, commercial buildings, airports, customs, and high-level clubs.
Feature 1: Double-gate control
The double gates are interlocked, when gate A/B is opened, gate B/A is closed.
Feature 2: Accurate and stable
Using 20 pairs of military-grade infrared detectors and precise algorithms, it can accurately detect the position of pedestrians in the passage, and realize the functions of anti-trailing, anti-reverse, and anti-pinch.
Feature 3: Multiple anti-pinch
It adopts multiple anti-pinch designs such as infrared anti-pinch, mechanical anti-pinch and advanced current detection anti-collision to provide multiple guarantees for pedestrian safety.
Feature 4: Multiple identification methods
Support various IC/ID recognition, biometric and identity recognition technologies, including face recognition, fingerprint recognition, vein recognition, etc.
Feature 5: Compatible with various controllers
Equipped with dry contact signal input interface, RS485 / RS232 interface, TCP/IP interface (optional), compatible with various access controllers.
Feature 6: Process Refining
The stainless steel cabinet of the intelligent swing barrier gate is painted, with bright color, strong visual impact, good surface finish, more beautiful appearance, easy to scrub, good moisture-proof and fire-proof performance.
Main Technical Parameters:
|
Material of swing arm |
Acrylic / tempered glass |
|
Thickness of swing arm |
8-12 mm |
|
Length of swing arm |
300-600 mm |
|
Input power |
DC24V |
|
Chassis material |
SUS 304 stainless steel, steel thickness is non-standard 1.5mm, the whole machine is high-grooving technology |
|
Working voltage |
AC220±10%V 50±10%HZ |
|
Power consumption |
static 200W, dynamic 350W |
|
Drive motor |
24V DC brushless motor, Hall code disc positioning, accurate positioning |
|
Dimensions |
L3000*W150*H1100mm |
|
Working environment |
indoor and outdoor (shade shed) -10℃～70℃ Relative humidity: ≤90%, non-condensing |
|
Gate opening and closing time |
0.8-1 second adjustable |

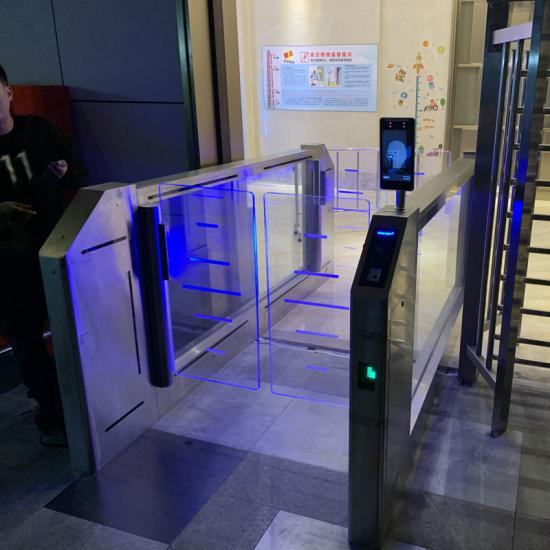

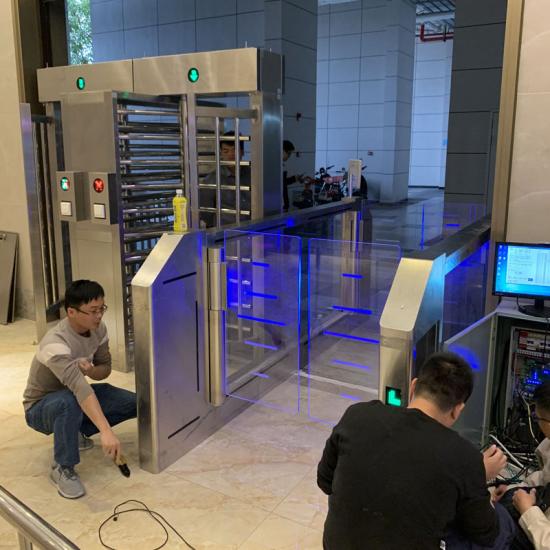

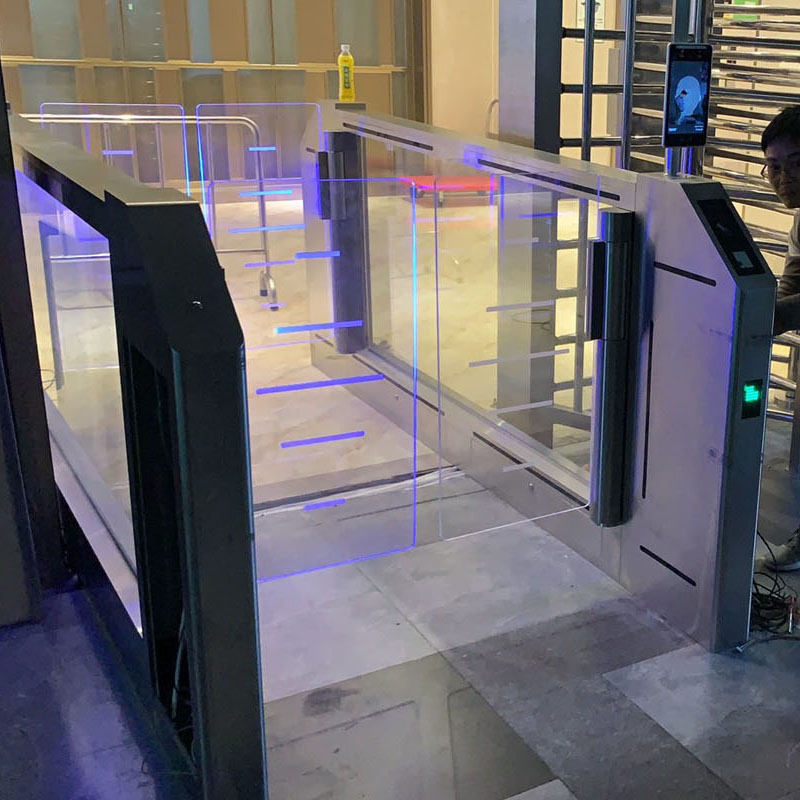

Case Show:
Leave A MessageSpeed turnstile gate use fast motors, beautiful appearance, fast opening speed, etc., suitable for corporate headquarters, high-end commercial buildings, high-end office buildings, interstellar hotels, etc.
The speed turnstile gate is directly driven by a motor to open the door quickly, which is very suitable for places with heavy traffic. And there is no noise, very suitable for office buildings, swimming pools, hotels, etc.
Modern design, faster pass speed, the speed gate is usually used at the high-end and crowded places such as clubs, smart buildings, villa communities, hotel lobbies, etc.
Low noise speed gate is the fast passage, especially suitable for places with with heavy traffic. It is glass turnstile gate, slim and modern desigan.
Speed gate is upgraded glass security swing turnstile which allows quick pass, always used as lobby entrance access control barrier gate in high traffic area . It is slim design, glass swing panel, It can be one -way or bi-direction passage, passage width and swing panel height can be customized made accordingly.
Speed gate is stylish glass swing turnstile gate with full stainless steel cabinet and fiber glass or acrylic sliding panel, it is created for access control with high requirements for design and passage’s comforts. Speed gate can provide fast, convenient contact-less passage.
CN Safety Gate Tech Speed gate offers high efficiency contact-less bi-direction passage. Integrated with access control system, speed gate allows authorized person quick pass, and prevent unauthorized passage. The design of speed gate combined the increasing technical requirement on the entrance gate but also the comfort of passage.
LD-S709 is a fast, streamlined speed gate with elegant design, it is made of 304 stainless steel with vacuum ion plating and anti-fingerprint treatment, which makes its flawless appearance.
