Item NO.:
LD-Q801Payment:
L/C, T/TProduct Origin:
ChinaGoods stock:
500Product weight:
2000000Shipping Port:
ShekouLead Time:
7-10 Working days

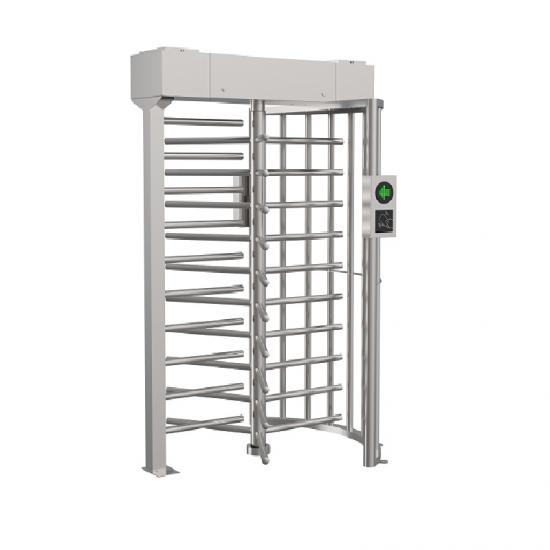

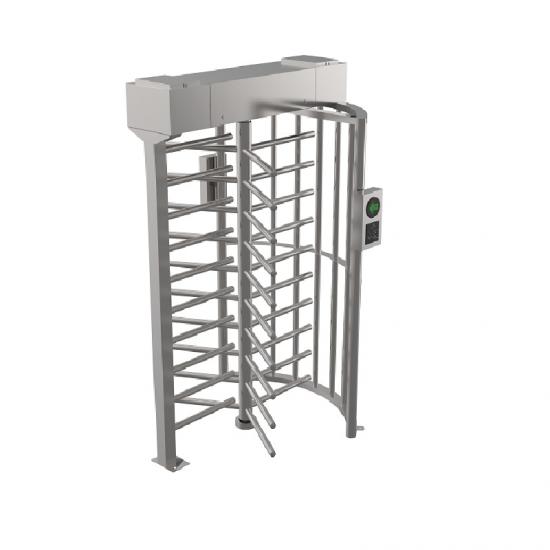

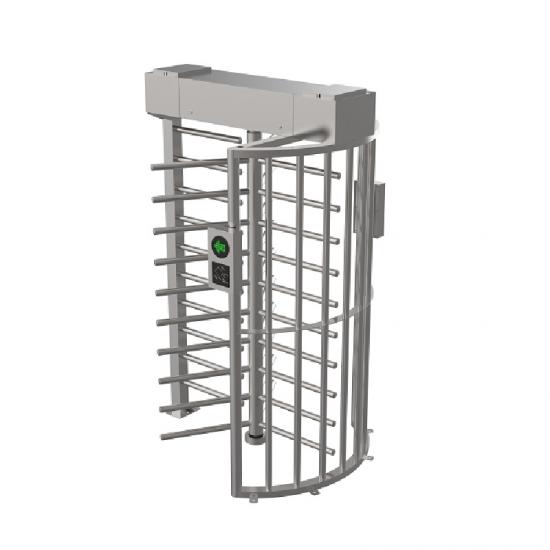

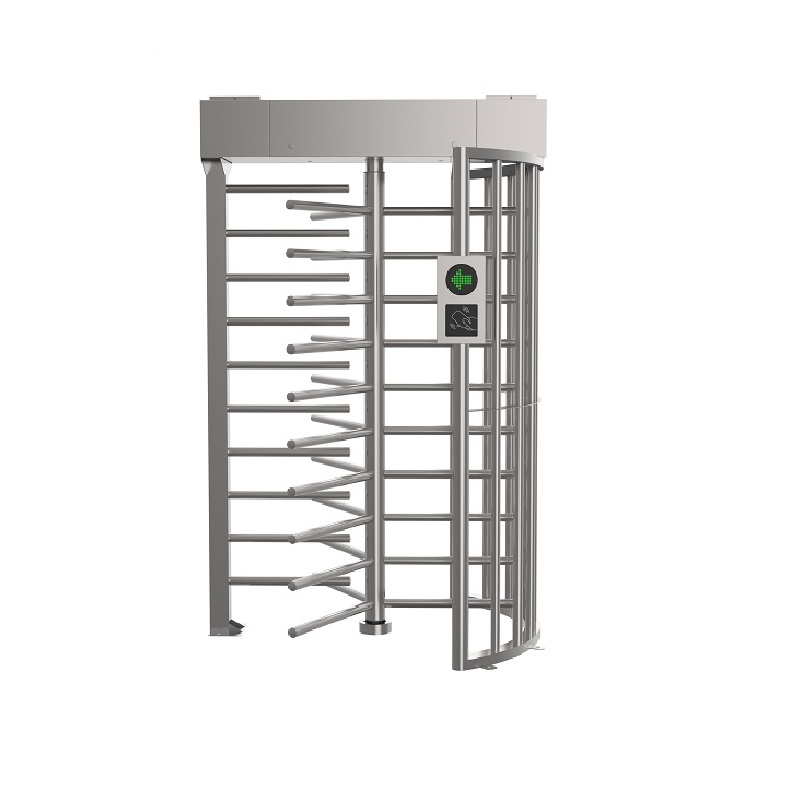

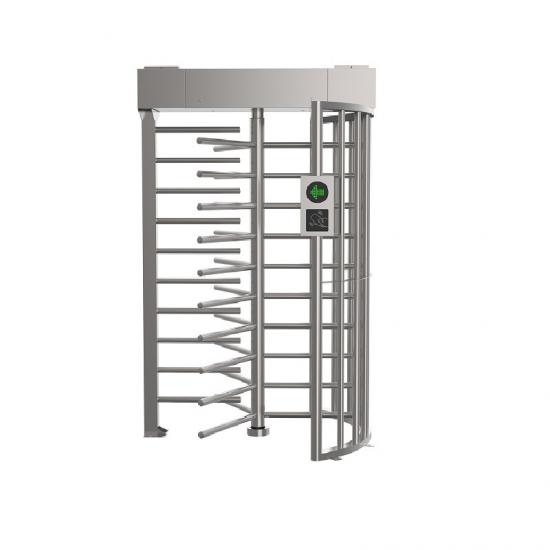

LD-Q801 Full Height Turnstile Gate Access Control System
Product description :
The full height gate is a fully enclosed cross rotating door designed according to a single channel (two-way passage). The cross door is made of exquisite stainless steel polishing. The frame is punched with thick iron plate (stainless steel can also be punched). So the style is very novel, beautiful and generous, strong and durable. The full height turnstile gate can effectively control the flow of people and provide effective safety protection for restricted areas. Suitable for indoor and outdoor use.
Product parameters:
| Moduel No. | LD-Q801 |
| Size | 1400*1200*2230mm（ length*width* height) |
| Material | 304 stainless steel, 38mm diameter tube, 1.2/1.5mm thickness |
| Unlocking time | 1s |
| Traffic speed | ≤30 persons/min |
| Channel width | 550mm |
| Input voltage | 220V, 50HZ |
| Drive voltage | 24V |
| Ambient temperature | : -15~+55 |
| Power | 30W |
| Opening signal input | dry contact |
| Opening method | push button, face recognition, RFID card reader, finger print |
Full height Turnstile Access control system features & functions:
1.Fault self-checking function, it is convenient for users to maintain and use.
2.It has two-way free passage after power failure, and automatic recovery and lock function when power on, so as to quickly organize evacuation in emergency situations.
3.Anti-shock function.The fence will be automatically locked when the gate opening signal is not received.
4.Using a unique transmission system to make the gate lock and unlock at the zero position more accurate and reliable.
5.It has a unified and standard external electrical interface, which can be connected to various reading and writing devices, and can receive relay switch signals to facilitate system integration.
6.Remote control and management can be realized directly through the management computer.
7.Automatic reset function. After reading the valid card, if the passer does not pass within the specified time, the system will automatically cancel the passer's current pass permission, and the restricted pass time can be set by the manager.
8.The whole system runs smoothly and very low noise.
Custom features:
● Material, surface treatment method and appearance style size
● Integrated access control system
● Integrated ticketing system
● Install remote control button
● Waterproof and dust-proof design: IP65

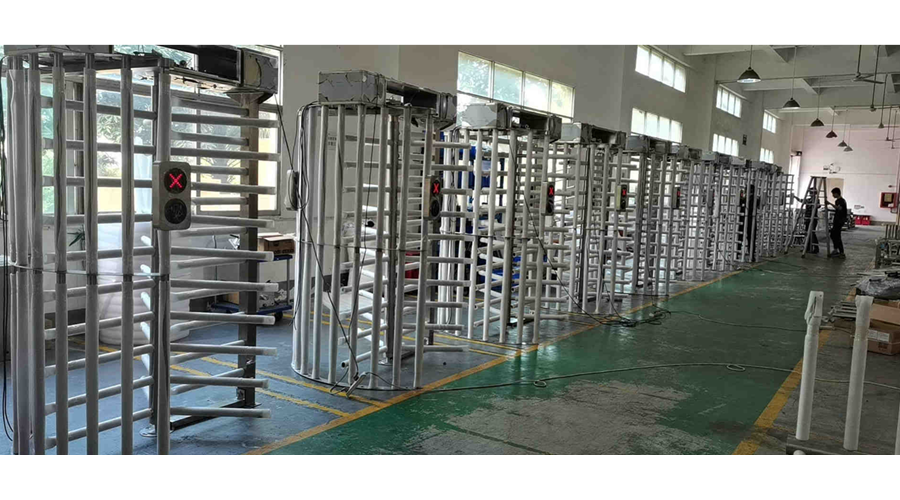

Production photo:
Company and customers:
Leave A MessageTripod Turnstile is also called waist height turnstile or three-arm turnstile. It is one of the most widely used security pedestrian access control products.
The function of the flap barrier gate is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety and convenience.
Flap barrier gate is also called retractable speed gate, which is a kind of equipment of the access control system. It is often used in places with large flow of people at the entrance and exit.
Wing gate, which is also called flap barrier gate, is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety, and convenience.
The Full Height Turnstiles are the most secure, durable and convenient way for entry and exit traffic control. With all kinds of access control system, it can realize security and access control function by forbidden tailgating and unauthorised entry. It can be indoor or outdoor used in singel lane/ double lane / multi lane.
Half height tripod turnstile provide automated access control in facilities entrance of low pedestrian flow. With 3 rotating arms, it only allows 1 person to pass at one time. Full 304 stainless steel structure makes it capable for outdoor applications, bi-direction , full integrated with all kinds of access control systems.
This fully automatic rising bollard is made of stainless steel into a sturdy housing, which effectively prevents the entry of vehicles in places with many pedestrians.When retracted, there is no obstruction or tripping hazards.
LD-T303 is simple structure, compact and cost-effective vertical three-roller gate, you can choose mechanical, semi-auto fully-auto type.
