Item NO.:
LD-HB01Payment:
T/T, L/CProduct Origin:
ChinaColor:
stainless steelMin order:
3Shipping Port:
ShenzhenLead Time:

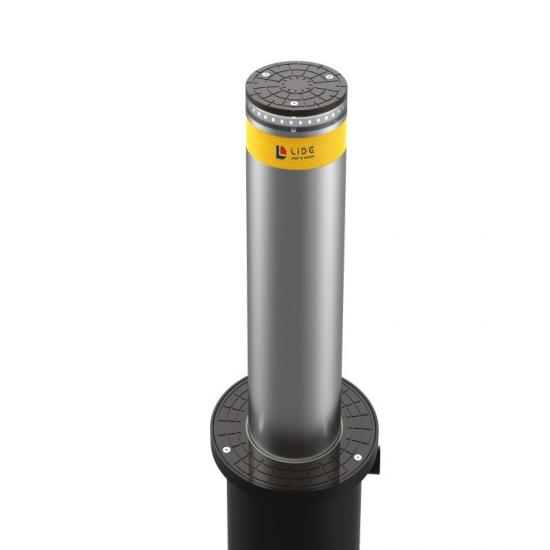

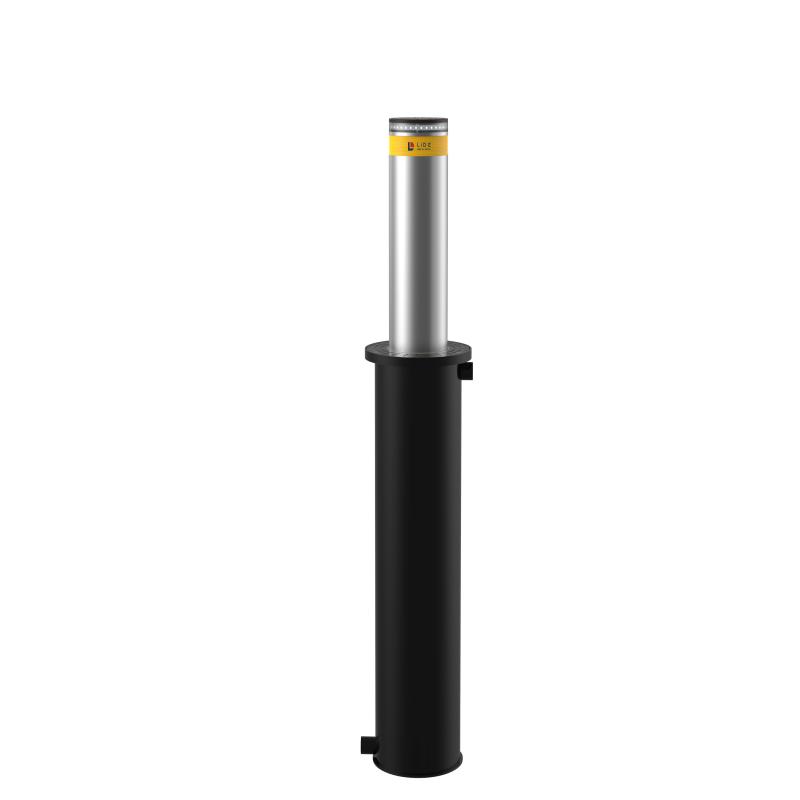

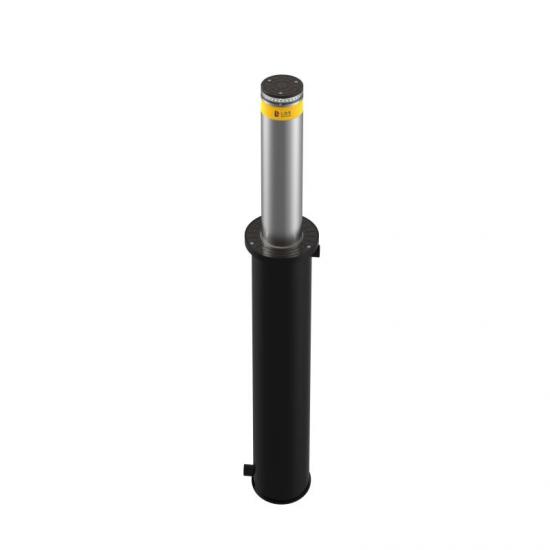

within 10 working daysAutomatic Hydraulic Electric Rising Retractable Bollard for Accress Control
Product description：
This fully automatic rising bollard is made of stainless steel into a sturdy housing, which effectively prevents the entry of vehicles in places with many pedestrians, and is not easily deformed when subjected to huge impacts. Retractable /telescoping bollards can be retracted fully below ground, eliminating the need for additional storage and labor to remove and transport detachable bollards. When retracted, there is no obstruction or tripping hazards.
Product specifications:
|
Rise time |
3.5 seconds |
|
Fall time |
3 seconds |
|
Equipment size |
400*1105mm |
|
Intercept height |
600mm |
|
Cylinder diameter |
219mm |
|
Cylinder thickness |
6mm |
|
Embedded depth |
1105mm |
|
Cylinder Material |
304 stainless steel |
|
Cylinder thickness |
6mm |
|
Flange |
high-strength aluminum alloy hard anodized |
|
Flange thickness |
10mm |
|
Lifting force |
150kg |
|
Protection level |
IP68 SGS certification |
|
Service life |
> 80,000 times |
|
Movement overheating protection |
130°C |
|
Fuel tank capacity |
4L |
|
Working temperature |
-40ºC~55 |
Product features:

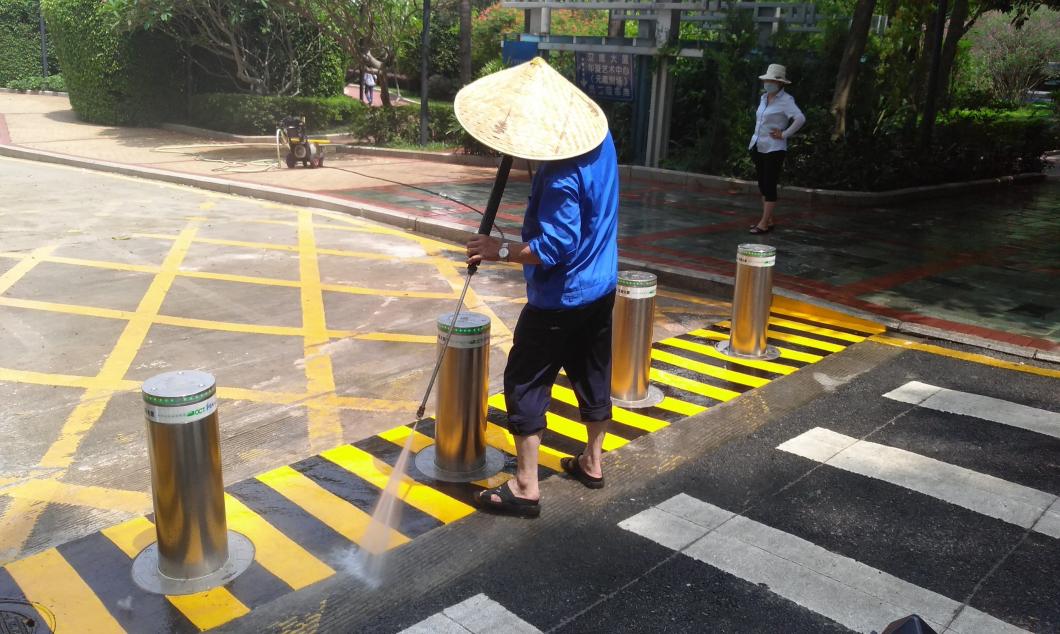

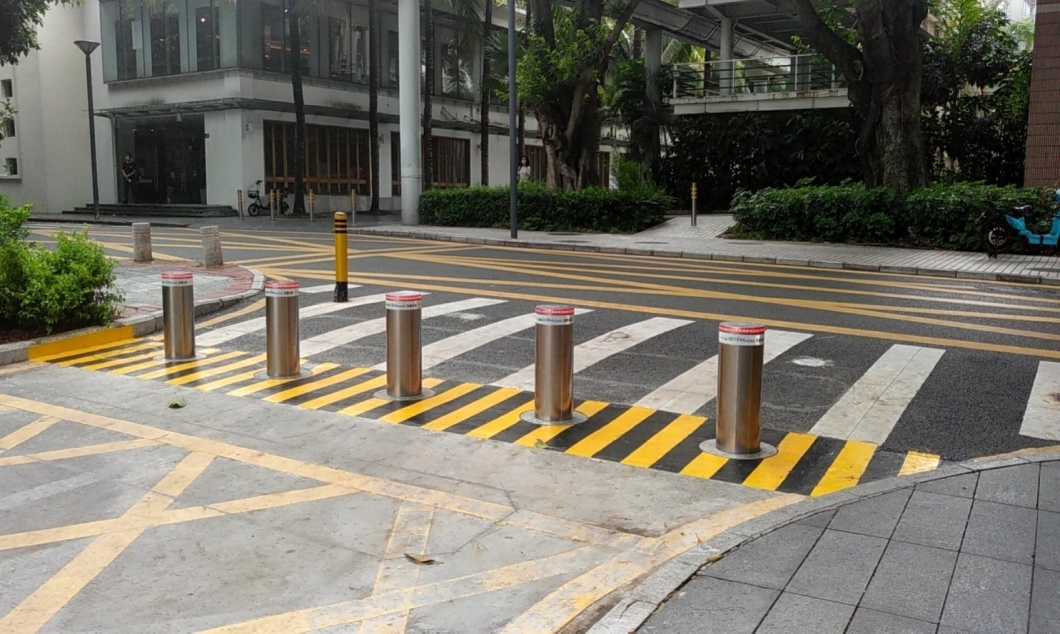

Product application photos:
