Flap barrier gate is also called retractable speed gate, which is a kind of equipment of the access control system. It is often used in places with large flow of people at the entrance and exit.
Item NO.:
LD-Y601Payment:
L/C, T/TProduct Origin:
Made in ChinaColor:
Silver and blueGoods stock:
200Product weight:
72000Shipping Port:
ShenzhenLead Time:

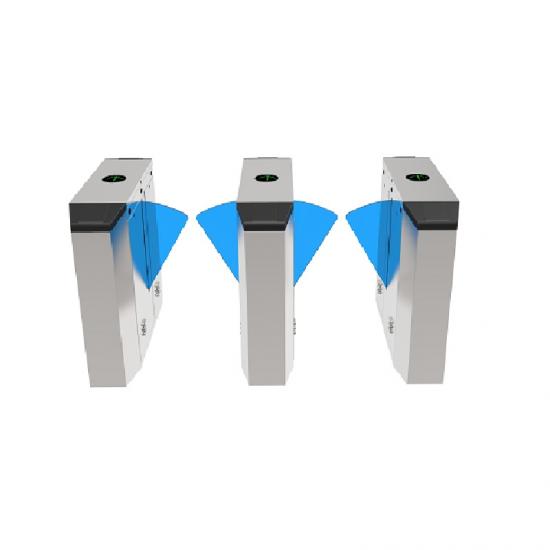

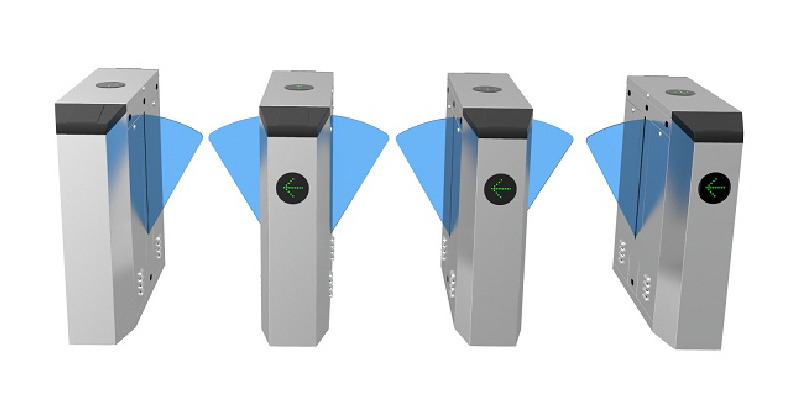

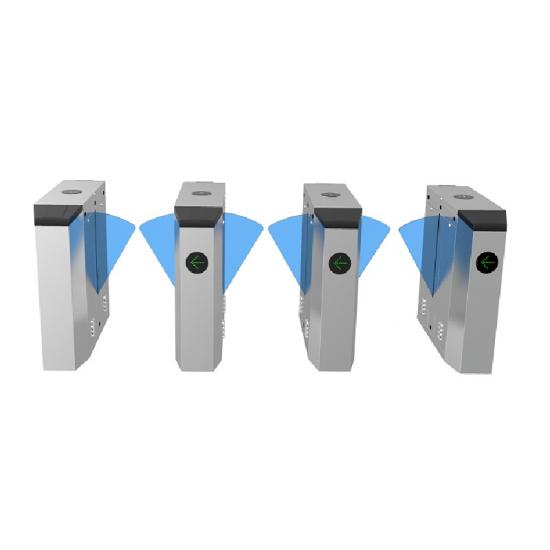

7-10 working daysLD-Y601 Access Control Electrical High Speed Flap Barrier Gate
Product parameters:
|
Moduel No. |
LD-Y601 |
|
Size |
1200x280x960mm |
|
Material |
304 stainless steel, tempered glass, acrylic |
|
Unlocking time |
0.2s |
|
Traffic speed |
≤35 persons/min |
|
Channel width |
≤550mm |
|
Voltage input |
220V, 50HZ |
|
Motor voltage |
24V |
|
Ambient temperature |
-25~+70 |
|
Power |
35W |
|
Opening signal input |
dry contact |
|
Thickness |
1.0mm, 4 pairs of infrared |
Main functions and characteristics of smart flap barrier gates:
1. With fault self-checking and alarm prompt function, it is convenient for users to maintain and use;
2. The running status of the device can be programmed through the built-in small button on the main control board;
3. Anti-pinch function,
4. Sound and light alarm function: including illegal intrusion and trailing alarm;
5. Anti-shock function, the flap arm will be automatically locked when the switch opening signal is not received;
6. Telescopic arm synchronization function;
7. With automatic reset function
8. After the power is off, the channel will automatically open, and when the power is on, it will automatically close;
9. It can be connected with a variety of card readers;
10. Unidirectional and bidirectional control of personnel entry and exit;
11. Remote control and management can be realized directly through the management computer;
12. Multiple identification methods: face recognition, fingerprints, QR codes, etc.

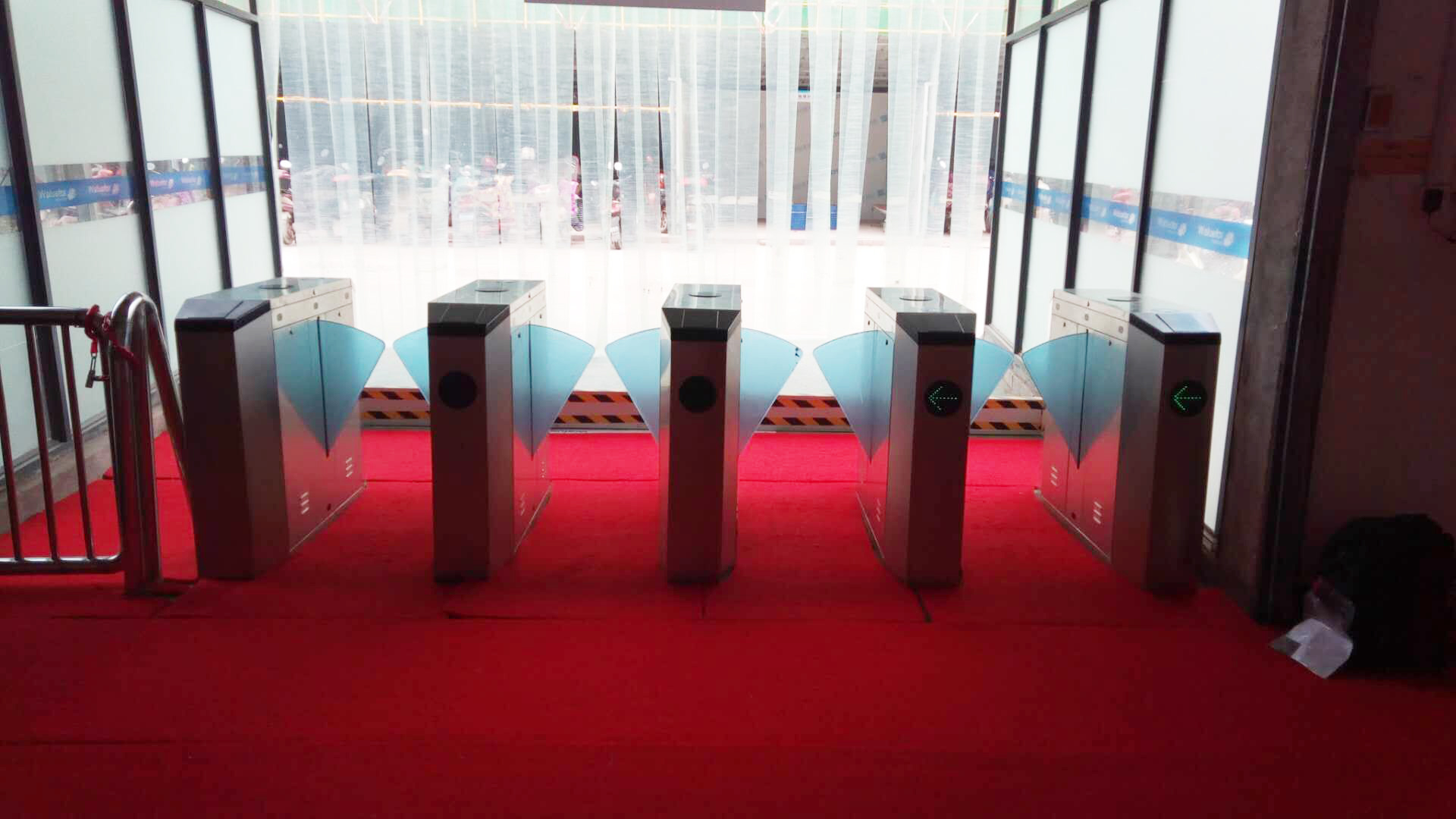

Product application photo:
