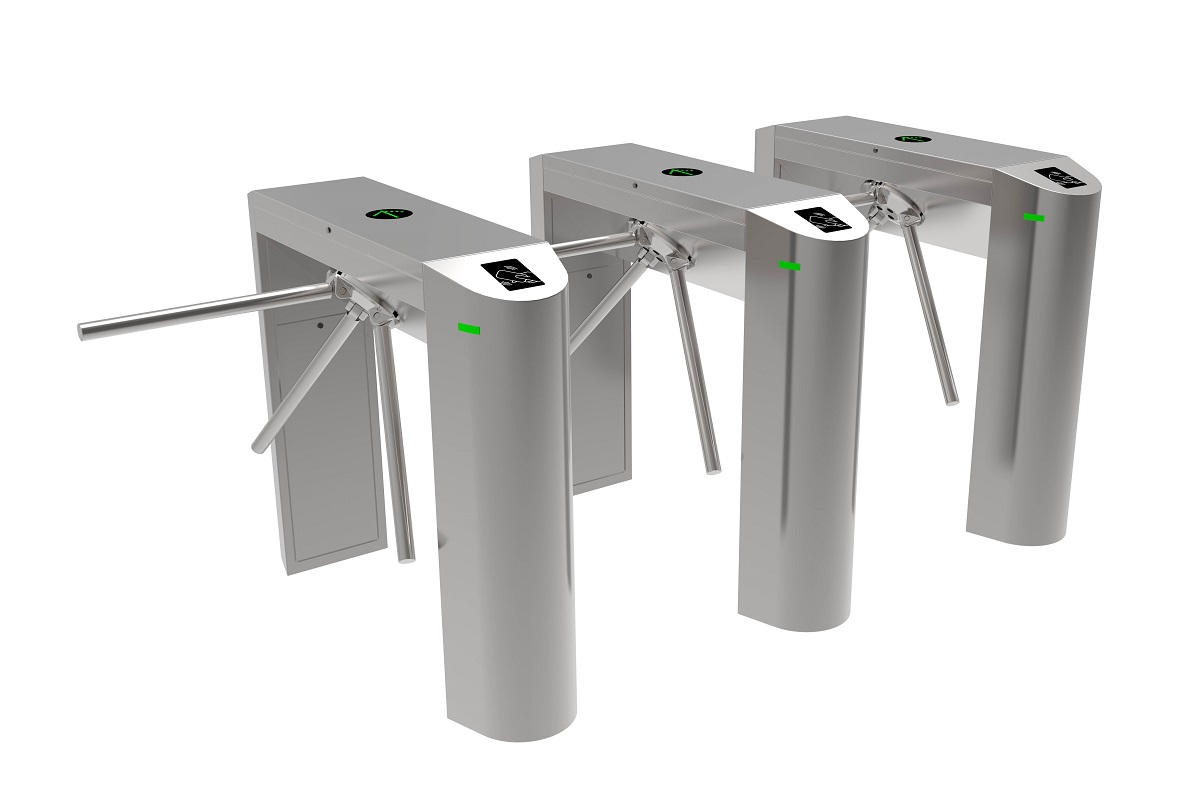

Half height tripod turnstile provide automated access control in facilities entrance of low pedestrian flow. With 3 rotating arms, it only allows 1 person to pass at one time. Full 304 stainless steel structure makes it capable for outdoor applications, bi-direction , full integrated with all kinds of access control systems.
Item NO.:
LD-T305Product Origin:
ChinaGoods stock:
100Lead Time:
5-10 workdaysHalf height tripod turnstile also named three roller gate. It is made of 304 stainless steel or powder coating steel , waist height, bridge type, with 3 rotating bars, it only allow one pedestrian access at one single time. So it is suitable for low frequency traffic control.

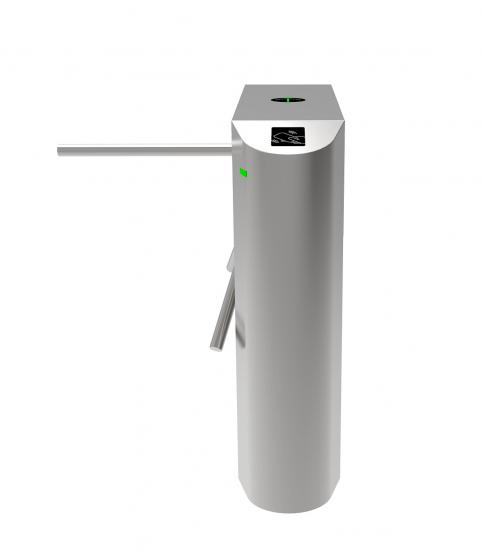

LD-T305 mechanical tripod turnstile is the most mature access control tripod turnstile in the market.
Benefits:
Cost effective price
Classic outlook
Easy installation
Full integrated with all access control systems
304 stainless steel or powder coating steel optional
Advantages:
1, Semi-automatic movement with large hydraulic shock absorption, it makes least noise when rotating
2, Voice broadcast, like welcome and good bye

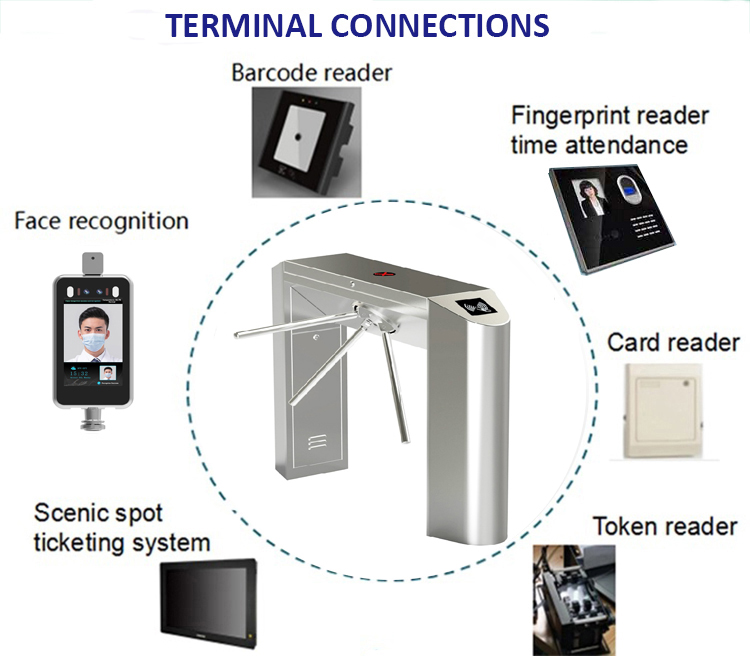

3, 485 communication , highly integrated with all kinds of access control system
4, LED indicator to show the traffic direction and traffic status
5, Mini fan to prevent condensation and heat dissipation, makes it more suitable for outdoor project
Parameters:
|
Model No. |
LD-T305 |
|
Size |
1200x280x980mm |
|
Material |
304 stainless steel |
|
Unlocking time |
0.2s |
|
Traffic speed |
≤35 persons/min |
|
Channel width |
≤550mm |
|
Input voltage |
220V, 50HZ |
|
Drive voltage |
24V |
|
Ambient temperature |
-25~+70 |
|
Power |
30W |
|
Opening signal input |
dry contact |
|
The material thickness |
1.5mm |
Leave A MessageTripod Turnstile is also called waist height turnstile or three-arm turnstile. It is one of the most widely used security pedestrian access control products.
Full height turnstile is the safest gate to control access , it is outstanding in anti-collecting, anti-tailing and anti-drilling .
The function of the flap barrier gate is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety and convenience.
Flap barrier gate is also called retractable speed gate, which is a kind of equipment of the access control system. It is often used in places with large flow of people at the entrance and exit.
Wing gate, which is also called flap barrier gate, is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety, and convenience.
The Full Height Turnstiles are the most secure, durable and convenient way for entry and exit traffic control. With all kinds of access control system, it can realize security and access control function by forbidden tailgating and unauthorised entry. It can be indoor or outdoor used in singel lane/ double lane / multi lane.
This fully automatic rising bollard is made of stainless steel into a sturdy housing, which effectively prevents the entry of vehicles in places with many pedestrians.When retracted, there is no obstruction or tripping hazards.
LD-T303 is simple structure, compact and cost-effective vertical three-roller gate, you can choose mechanical, semi-auto fully-auto type.
