Item NO.:
LD-S703Payment:
T/T, LCProduct Origin:
ChinaGoods stock:
100Shipping Port:
ShekouLead Time:

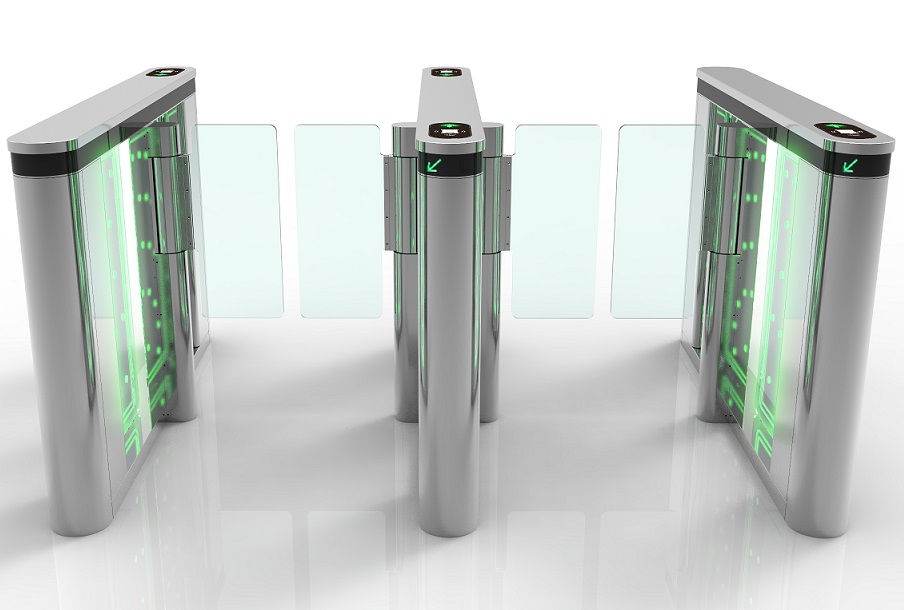

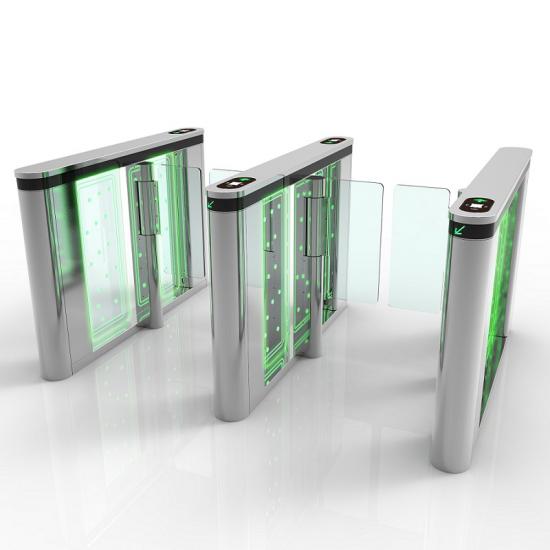

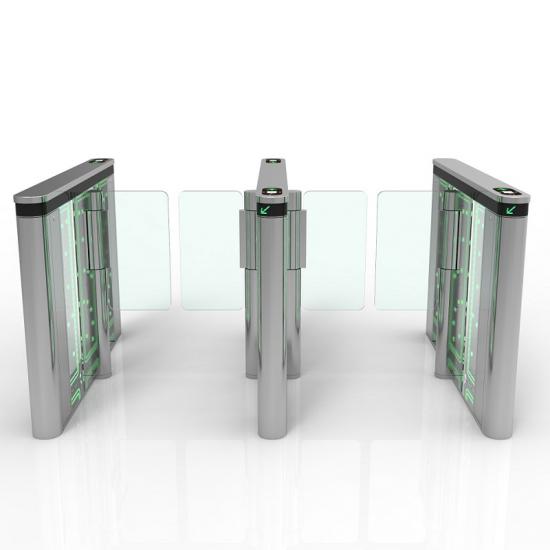

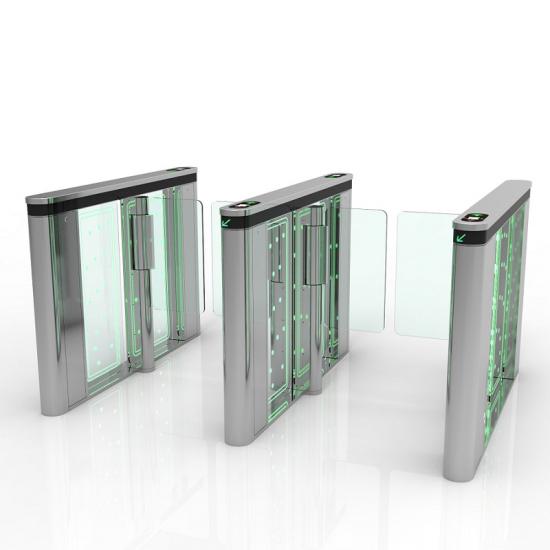

7-10 workdaysLD-S703 Speed Gate Turnstile for Access Control Entrance
LD-S703 speed gate turnstile is designed to manage the flow of people into and around your building. It offers a security solution that allows some users to simply pass through, whilst directing others to a specific location, for instance a reception desk or lift hall, and it offers options for disabled access.
Activated by an access control system such as a card reader, QR code/ bar code reader biometric device or external control panel, and equipped with sensors to prevent tailgating and piggybacking, our access control speed gates ensure only authorized users can pass through.
Product specifications:
|
Moduel No. |
LD-S703 |
|
Size |
1400*200*980mm; |
|
Material |
304 stainless steel, acrylic |
|
Channel width |
standard 600mm |
|
Thickness of the cabinet |
1.5mm |
|
Drive motor |
DC 24V brushless servo motor, low noise |
|
Traffic direction |
One-way traffic/two-way traffic |
|
Passing speed |
50~55 persons/minute |
|
Opening methods |
ID/IC card and other readers to verify opening, infrared induction automatic opening, button opening, etc. |
|
Gate opening signal |
dry contact signal |
|
Protection functions |
clutch anti-collision, infrared anti-pinch, infrared alarm for illegal intrusion |
|
Life |
not less than 9 million times |
|
Number of infrared sensor |
6 pairs |
|
Power |
24 V, 100W |
1. Main body and lateral lids are 304 stainless steel.
2. Lateral covers are removable for easy maintenance.
3. Low power consumption and silent running.
4. Compatible with all Access Control Systems.
5. Turnstile gate is equipped with an alarm system which senses forbidden and revers direction passing.
6. Turnstiles closes flaps by itself after adjusted time if a valid card is presented but person not passed.
7. All the obstacles in the passage are sensed with photoelectric sensors.
Leave A MessageSpeed turnstile gate use fast motors, beautiful appearance, fast opening speed, etc., suitable for corporate headquarters, high-end commercial buildings, high-end office buildings, interstellar hotels, etc.
The speed turnstile gate is directly driven by a motor to open the door quickly, which is very suitable for places with heavy traffic. And there is no noise, very suitable for office buildings, swimming pools, hotels, etc.
Modern design, faster pass speed, the speed gate is usually used at the high-end and crowded places such as clubs, smart buildings, villa communities, hotel lobbies, etc.
Low noise speed gate is the fast passage, especially suitable for places with with heavy traffic. It is glass turnstile gate, slim and modern desigan.
Speed gate is upgraded glass security swing turnstile which allows quick pass, always used as lobby entrance access control barrier gate in high traffic area . It is slim design, glass swing panel, It can be one -way or bi-direction passage, passage width and swing panel height can be customized made accordingly.
Speed gate is stylish glass swing turnstile gate with full stainless steel cabinet and fiber glass or acrylic sliding panel, it is created for access control with high requirements for design and passage’s comforts. Speed gate can provide fast, convenient contact-less passage.
CN Safety Gate Tech Speed gate offers high efficiency contact-less bi-direction passage. Integrated with access control system, speed gate allows authorized person quick pass, and prevent unauthorized passage. The design of speed gate combined the increasing technical requirement on the entrance gate but also the comfort of passage.
LD-S709 is a fast, streamlined speed gate with elegant design, it is made of 304 stainless steel with vacuum ion plating and anti-fingerprint treatment, which makes its flawless appearance.
