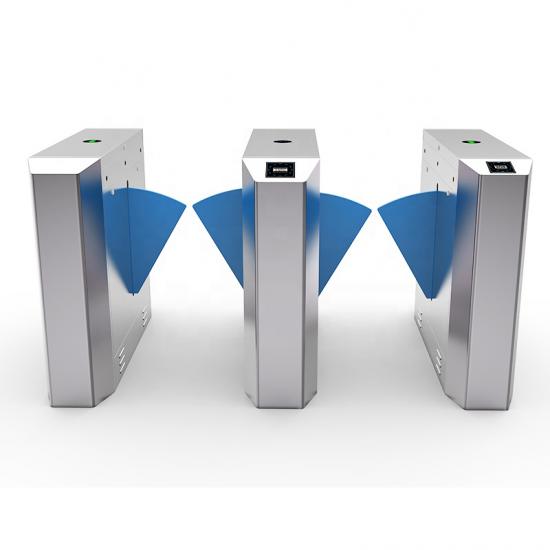

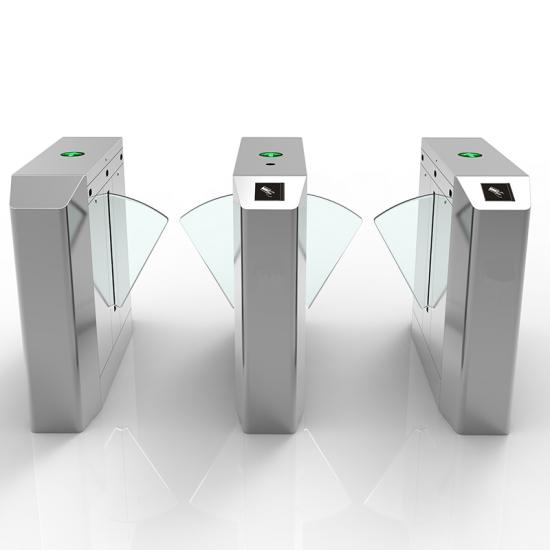

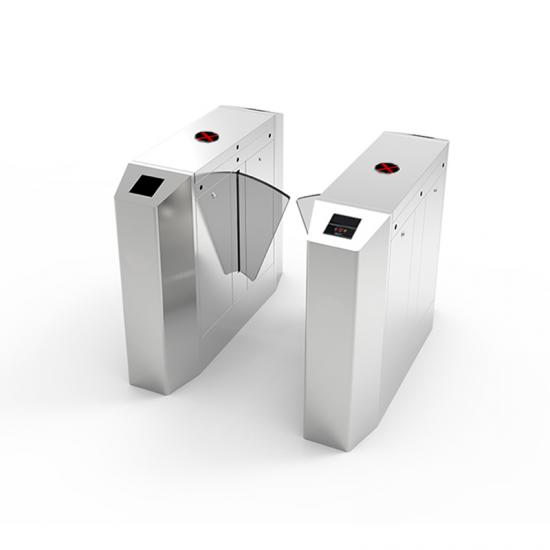

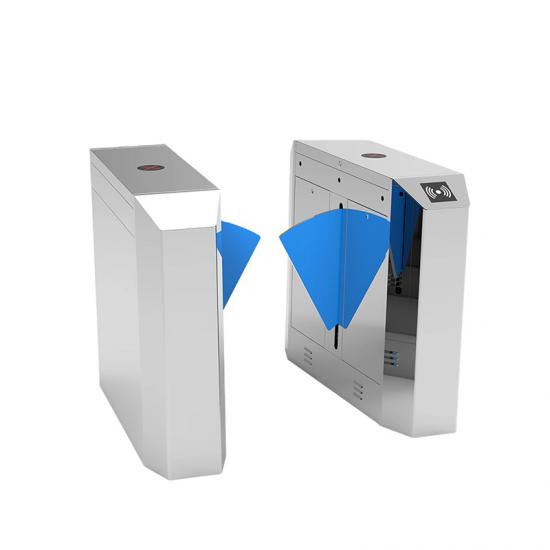

Flap barriers are cost-effective and space-saving entrance gates, normally used at commercial and industrial places to control the pedestrian flow, such as subway station, museum, school.
Item NO.:
LD-Y602Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:
7-10 DaysThe housing of flap barrier is made up of SS304 material and integrate with acrylic flaps. It also come up with IR sensor to assist the gates prevent unauthorized entry and tailgating. The flaps can retract automatically once the visitor validation completed, after the signal received.
These CE certificated gates can provide with contactless solutions and medium level of entrance control security. CN Safety Gate Tech Tech is the one stop solution for access control devices with high quality an in time after sales service.
Parameters:
|
Model No. |
LD-Y602 |
|
Size |
1200*280*980 mm (Length* Width* Height) |
|
Material |
304 stainless steel, PU, Acrylic |
|
Lane width |
550mm |
|
Thickness of the housing |
1.2mm / 1.5mm |
|
Drive motor |
DC 24V |
|
Input voltage |
AC 100V - 230V, 50-60HZ |
|
Passing speed |
30-35 people / minute |
|
Opening signal |
Dry contact |
|
Life |
5 million times; |
Features:
1. Equipped with LED directional indication lights on the top cover.
2. Can equipped with button which ensure unblocked access in emergency.
3. With the 3 pairs of sensors to determine various pedestrian access logic.
4. Auto reset function, if not pass during settings time, the system reset automatically and gates close again until second identified reading.
5. Offers the lane width 550mm for regular access and 900mm for wheelchair or material access.
6. Easy integration with all access control and biometric devices, RFID card reader, Fingerprint and facial recognition terminal with temperature detection.
The reliability of the gate system of MCBF over 5 million times
Leave A MessageThere are many advantages of flap barrier wing gate. First: The speed of opening door is high. Second: Safe. Third: Simple maintenance.
ESD access control speed gate flap barrier is fast opening turnstile gate with ESD detection, which are widely used in electronic industry as entrance & exit gate. It helps electronic factory to eliminate static electricity interference and realize employee attendance.
Flap barrier turnstile is a kind of barrier gate with beautiful appearance, fast passing speed, and extremely effective for personnel verification.
Made of austenitic stainless steel (SUS304), with high mechanical resistance, corrosion resistant, excellent hygiene and cleanliness factor, elegant design and great durability.
Flap turnstile is optical automatic entrance gate used in modern buildings to restrict personal access, especially the commercial office towers with high pedestrian flow requirement. The access control flap turnstile allows authorized entrant and block UN-authorized entry, it is a advanced and touch-less, unattended equipment to manage traffic in your buildings.
Flap Barrier is the entrance access system which would allow the employees and identified visitors pass the gate quickly. This is the good solution of building security management.
Retractable Flap Barrier is designed to solve the common issue which happened in commercial buildings and other facilities like quick pass of employees and visitors, protect facility property.
Flap Turnstile is the elegant single lane barrier and consumes low power, offering sufficient space to high-volume pedestrian traffic.
