Made of austenitic stainless steel (SUS304), with high mechanical resistance, corrosion resistant, excellent hygiene and cleanliness factor, elegant design and great durability.
Item NO.:
LD-Y622Payment:
T/T, L/CProduct Origin:
Made in ChinaColor:
SilverGoods stock:
20Product weight:
70 kgsShipping Port:
ShenzhenLead Time:

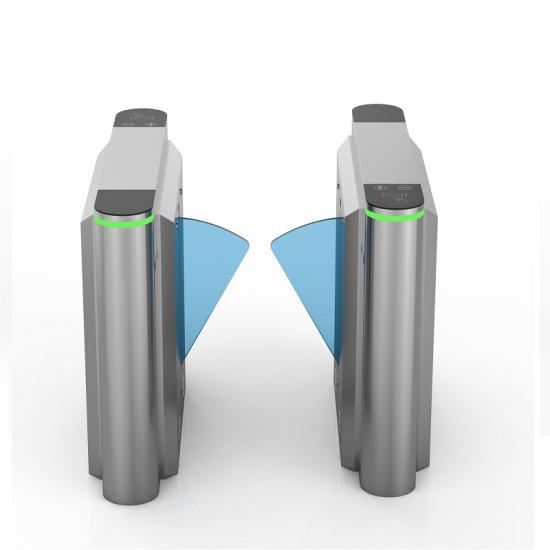

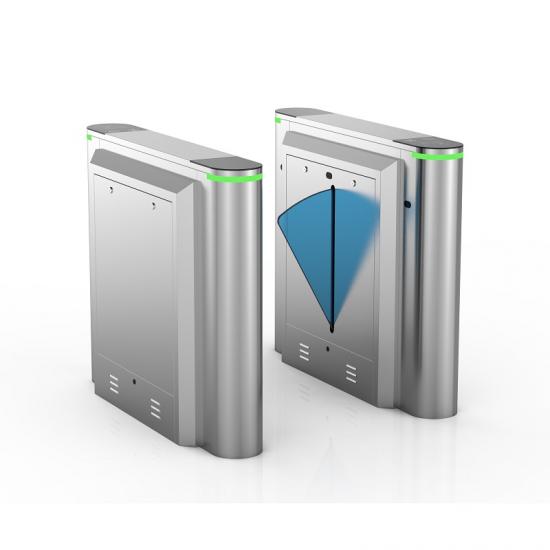

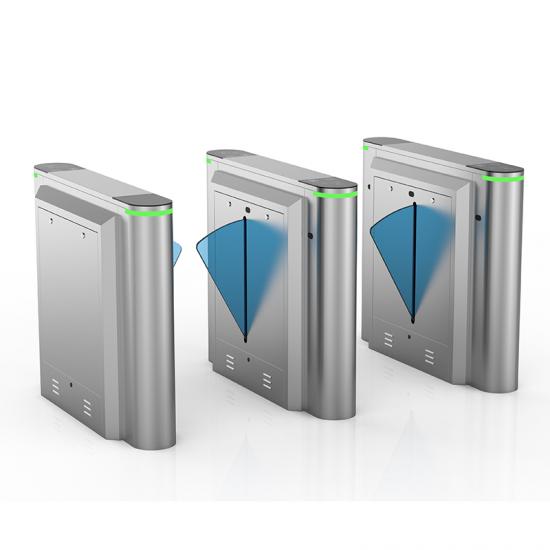

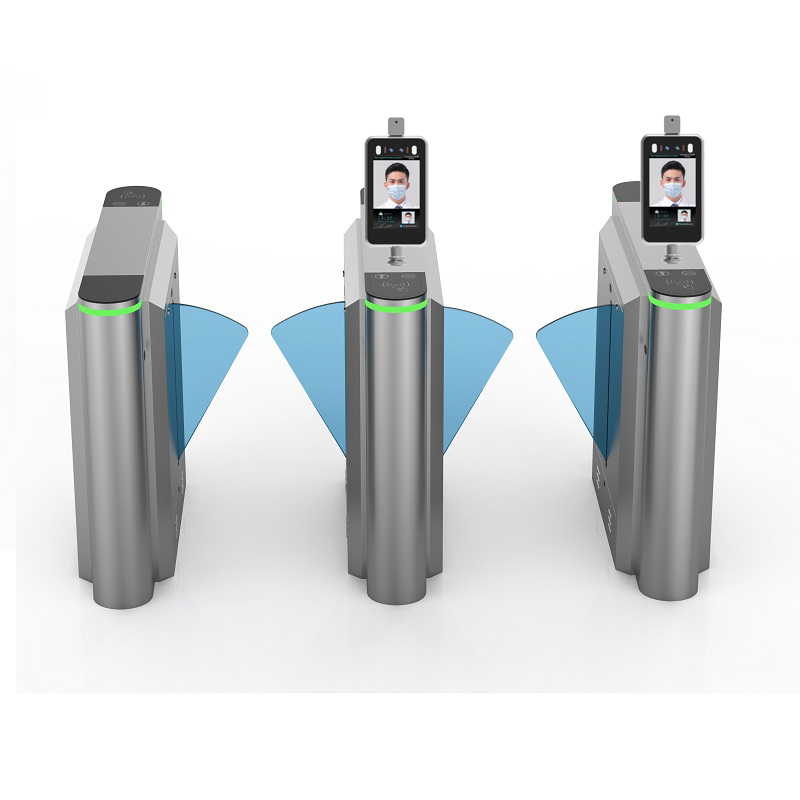

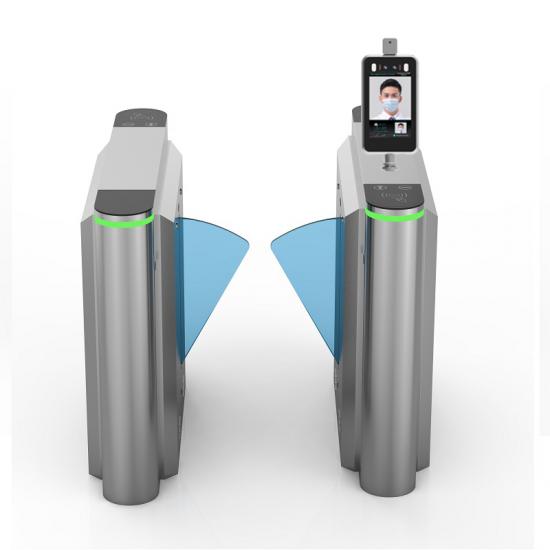

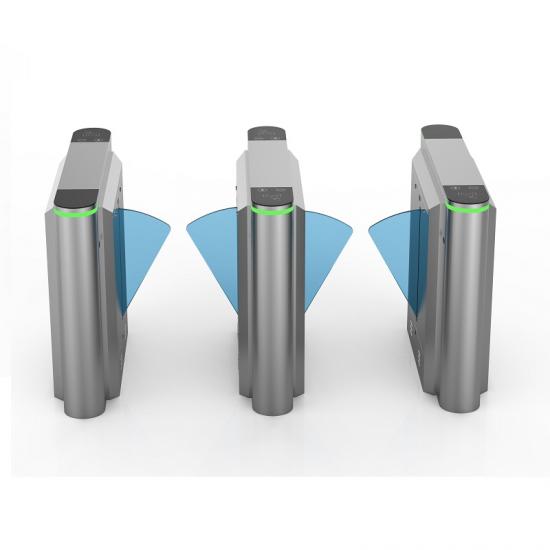

7 work daysPedestrian Control Automatic Flap Barrier Gates
Our flap wing barrier turnstiles have a sleek, attractive design and handle high volumes of traffic. In addition, wing turnstiles are strong and quiet, they do not consume large amounts of energy, and they have been manufactured with stainless steel for maximum durability.
Flap wing barrier turnstiles are always kept closed, thus denying access to unauthorized persons until they are identified by RFID credentials or by their fingerprint.
In emergency situations, the turnstiles open automatically.
Main Parameters:
Size
1200* 980*280mm ( can be customized)
Material
stainless steel 304 + tempered glass + acrylic black powder coating part cold rolled steel plate
Channel width
550-900mm (can be customized) Standard channel 550mm
Thickness of the cabinet
1.2-1.5mm
Passing speed
35-40 persons / minute
Communication interface
RS232
Opening time
0.2s
Working temperature
-30 ° C ~ 70 ° C
Drive motor
Brushless DC 24V
Life
9 million times
Power
30-40w
Working voltage
AC100-240V
Working environment
indoor and outdoor (outdoor canopy)
Features and Performance:
Flap barrier gates open automatically when there are emergency situations.
Flap barrier turnstile gates retract automatically during power failure with the battery installed.
No exposed screws.
Its ergonomic design makes verifications quicker and easier for users.
Integrated reader.
Flap barrier gates can be chosen with either a card reader, fingerprint reader or mixed, thus reducing installation times and expenses.
Flap wing barrier gates and associated access control readers are factory tested prior to shipment.
Leave A MessageThere are many advantages of flap barrier wing gate. First: The speed of opening door is high. Second: Safe. Third: Simple maintenance.
ESD access control speed gate flap barrier is fast opening turnstile gate with ESD detection, which are widely used in electronic industry as entrance & exit gate. It helps electronic factory to eliminate static electricity interference and realize employee attendance.
Flap barrier turnstile is a kind of barrier gate with beautiful appearance, fast passing speed, and extremely effective for personnel verification.
Flap turnstile is optical automatic entrance gate used in modern buildings to restrict personal access, especially the commercial office towers with high pedestrian flow requirement. The access control flap turnstile allows authorized entrant and block UN-authorized entry, it is a advanced and touch-less, unattended equipment to manage traffic in your buildings.
Flap barriers are cost-effective and space-saving entrance gates, normally used at commercial and industrial places to control the pedestrian flow, such as subway station, museum, school.
Flap Barrier is the entrance access system which would allow the employees and identified visitors pass the gate quickly. This is the good solution of building security management.
Retractable Flap Barrier is designed to solve the common issue which happened in commercial buildings and other facilities like quick pass of employees and visitors, protect facility property.
Flap Turnstile is the elegant single lane barrier and consumes low power, offering sufficient space to high-volume pedestrian traffic.
