There are many advantages of flap barrier wing gate. First: The speed of opening door is high. Second: Safe. Third: Simple maintenance.
Item NO.:
LD-Y602Payment:
T/T, L/CProduct Origin:
Made in ChinaColor:
SilverGoods stock:
20Product weight:
70 kgShipping Port:
ShenzhenLead Time:

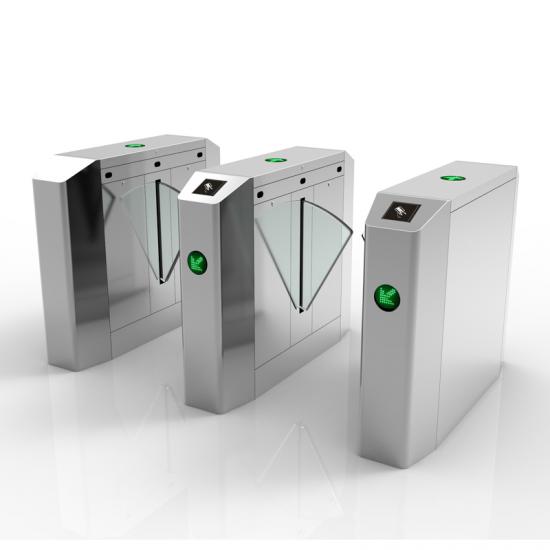

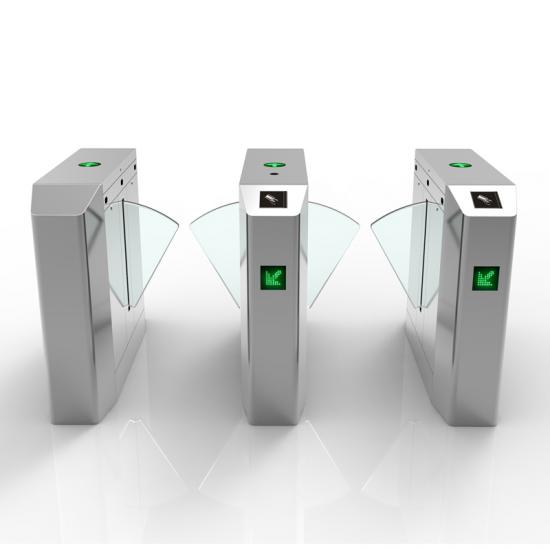

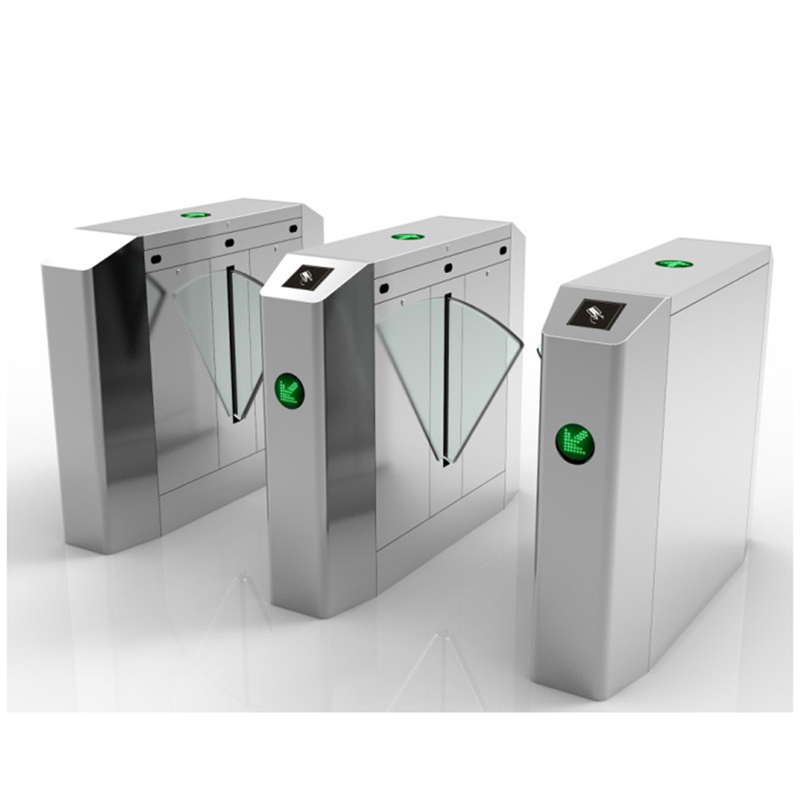

7 work daysPedestrian Access Control Flap Barrier Wing Gate
Flap barrier wing gates are equipments that manage pedestrian passages. They are usually used in conjunction with access control systems. Flap barrier wing gates have the characteristics of fast opening speed and are mainly installed in places with a large flow of people.
Technical Parameters:
|
Box Size(mm) |
1200(L)x280(W)x980(H) |
|
Channel width |
Around 550mm |
|
Rated voltage |
AC220V±10％/50Hz |
|
Maximum power |
200W |
|
Switching time |
Around 0.6S |
|
Trouble-free operation |
5,000,000 times above |
|
Ambient temperature |
-25℃-75℃ |
|
Environment humidity |
≤99％ |
Product Features:
1. 304 brushed stainless steel material, laser cutting technology, beautiful appearance;
2. Adopt DC brushless motor and imported motor drive module. The movement is stable and reliable, with low noise;
3. The movement adopts unique mechanical structure, reasonable and reliable design, low noise, stable operation and long service life.
4. The baffle opening and closing speed is high, and the passing rate is high;
5. Infrared on-beam technology monitors the passing status of personnel in real time, effectively preventing trailing and recoil;
6. Anti-recoil, when pedestrians enter the passage from the opposite direction, the wing gate will alarm immediately. After the power is cut off, the baffle opens automatically to form a transparent passage, which meets the fire protection requirements;
7. Fast identity authentication technology, which can accurately and efficiently identify IC cards, ID cards, magnetic cards or barcodes;
Leave A MessageESD access control speed gate flap barrier is fast opening turnstile gate with ESD detection, which are widely used in electronic industry as entrance & exit gate. It helps electronic factory to eliminate static electricity interference and realize employee attendance.
Flap barrier turnstile is a kind of barrier gate with beautiful appearance, fast passing speed, and extremely effective for personnel verification.
Made of austenitic stainless steel (SUS304), with high mechanical resistance, corrosion resistant, excellent hygiene and cleanliness factor, elegant design and great durability.
Flap turnstile is optical automatic entrance gate used in modern buildings to restrict personal access, especially the commercial office towers with high pedestrian flow requirement. The access control flap turnstile allows authorized entrant and block UN-authorized entry, it is a advanced and touch-less, unattended equipment to manage traffic in your buildings.
Flap barriers are cost-effective and space-saving entrance gates, normally used at commercial and industrial places to control the pedestrian flow, such as subway station, museum, school.
Flap Barrier is the entrance access system which would allow the employees and identified visitors pass the gate quickly. This is the good solution of building security management.
Retractable Flap Barrier is designed to solve the common issue which happened in commercial buildings and other facilities like quick pass of employees and visitors, protect facility property.
Flap Turnstile is the elegant single lane barrier and consumes low power, offering sufficient space to high-volume pedestrian traffic.
