Flap Turnstile is the elegant single lane barrier and consumes low power, offering sufficient space to high-volume pedestrian traffic.
Item NO.:
LD-Y606Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:

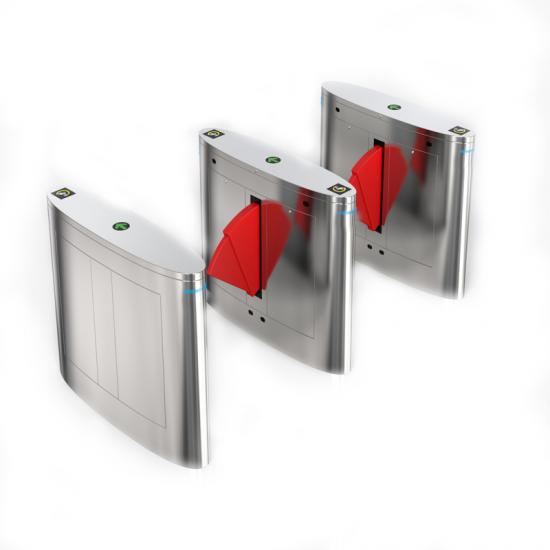

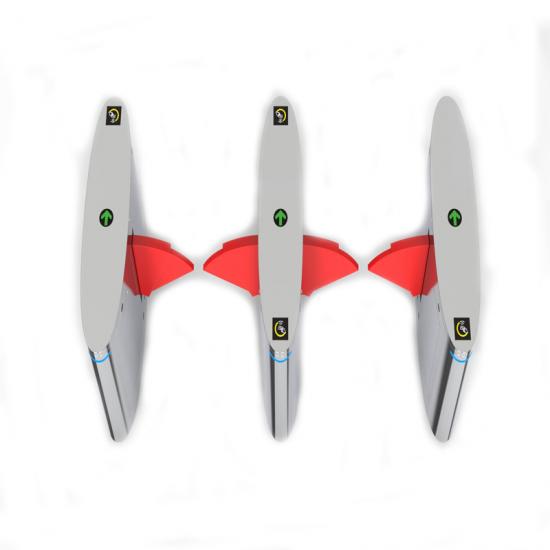

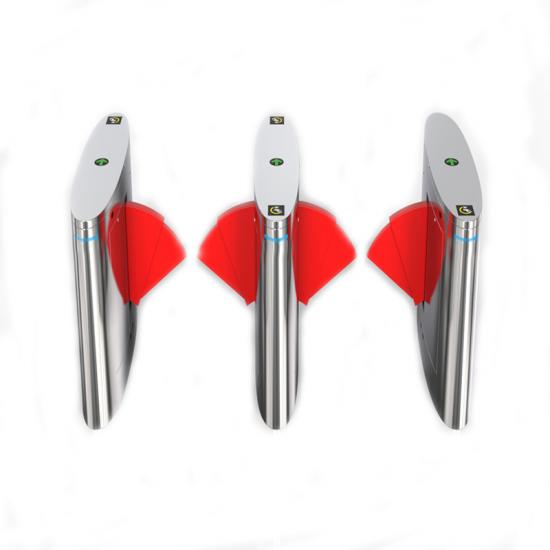

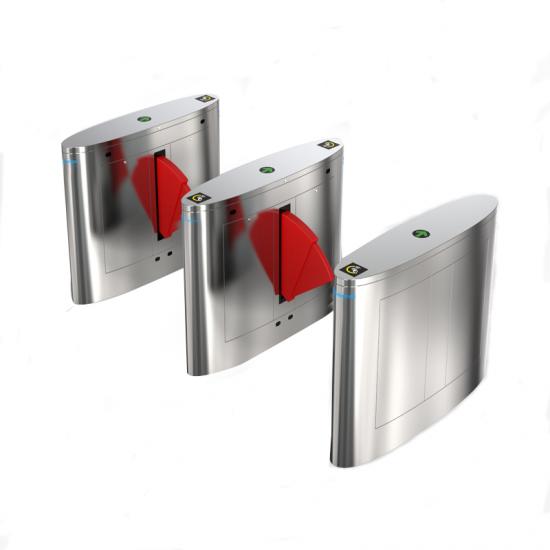

7-10 DaysLD-Y606 Optical Access Control Flap barrier Turnstile
LD-Y606 Flap Barrier is the standard security level of access control entrance, which offers 900mm width passage lane and allows the disability people with wheelchairs (standard size) to pass through. It is normally used in the applications such as subway stations, harbors and hotel.
The Flap Barrier Turnstile is with the compact design and provides security solution. When the lane closed, the two PU swings meet near the top forming a barrier. When opened, the swings retract fully into the cabinet for a concealed look.
Material:
* The housing is made of 304 stainless steel (316 stainless steel optional).
* The baffle is made in PU material (800E) which softy and replaceable.
* It equipped with 5 pairs of infrared sensors to detect accurately and prevent tailgating.
Parameters:
|
Model No. |
LD-Y606 |
|
Size |
1400*310*980 mm |
|
Material |
304 stainless steel, PU |
|
Lane width |
900mm |
|
Thickness of the housing |
1.2mm / 1.5mm |
|
Drive motor |
Brushless DC 24V |
|
Input voltage |
220V, 50HZ |
|
Passing speed |
30-35 people / minute |
|
Opening signal |
Dry contact |
|
Life |
9 million times; |
Features:
1. The Flap Turnstile and associated access control readers are all tested in factory before shipment.
2. Single or bi-directional passage is selectable.
3. The direction indicator shows that the current status of lane and guide pedestrians correct and smooth passage.
4. The movement drive by brushless DC 24V motor, which hard-wearing and life time over 9 million times.
5. The gate opens automatically as the emergency exit when power off (if battery installed).
6. It interfaced with laptop through RS232 (RS485, TCP-IP) line
7. The system can be set to delay closing in 1-60s after the valid identification.
8. It can be mounted with display, passage counter, card reader, biometric device etc.
Leave A MessageThere are many advantages of flap barrier wing gate. First: The speed of opening door is high. Second: Safe. Third: Simple maintenance.
ESD access control speed gate flap barrier is fast opening turnstile gate with ESD detection, which are widely used in electronic industry as entrance & exit gate. It helps electronic factory to eliminate static electricity interference and realize employee attendance.
Flap barrier turnstile is a kind of barrier gate with beautiful appearance, fast passing speed, and extremely effective for personnel verification.
Made of austenitic stainless steel (SUS304), with high mechanical resistance, corrosion resistant, excellent hygiene and cleanliness factor, elegant design and great durability.
Flap turnstile is optical automatic entrance gate used in modern buildings to restrict personal access, especially the commercial office towers with high pedestrian flow requirement. The access control flap turnstile allows authorized entrant and block UN-authorized entry, it is a advanced and touch-less, unattended equipment to manage traffic in your buildings.
Flap barriers are cost-effective and space-saving entrance gates, normally used at commercial and industrial places to control the pedestrian flow, such as subway station, museum, school.
Flap Barrier is the entrance access system which would allow the employees and identified visitors pass the gate quickly. This is the good solution of building security management.
Retractable Flap Barrier is designed to solve the common issue which happened in commercial buildings and other facilities like quick pass of employees and visitors, protect facility property.
