Item NO.:
LD-Y609Payment:
T/T, L/CProduct Origin:
Made in ChinaColor:
SilverGoods stock:
50Product weight:
70 kgShipping Port:
ShenzhenLead Time:

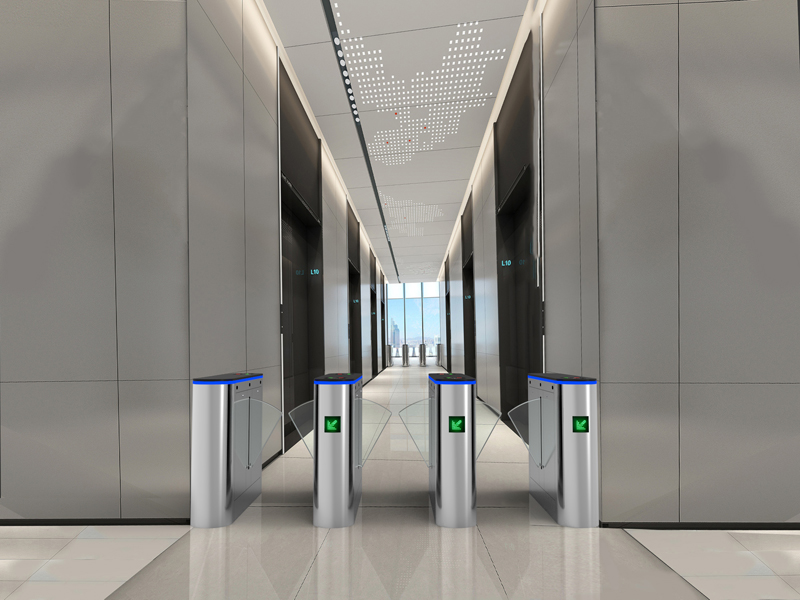

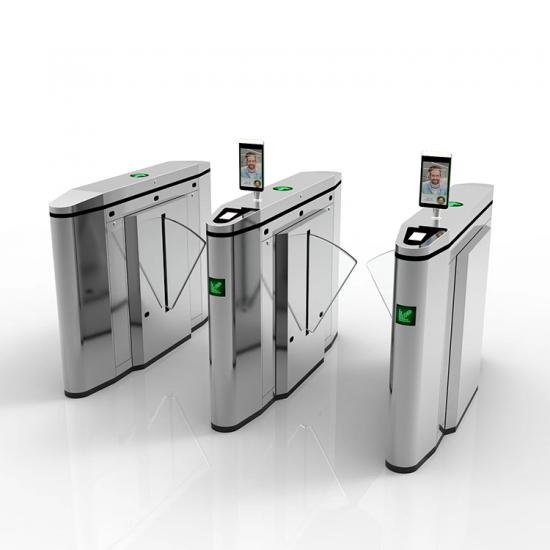

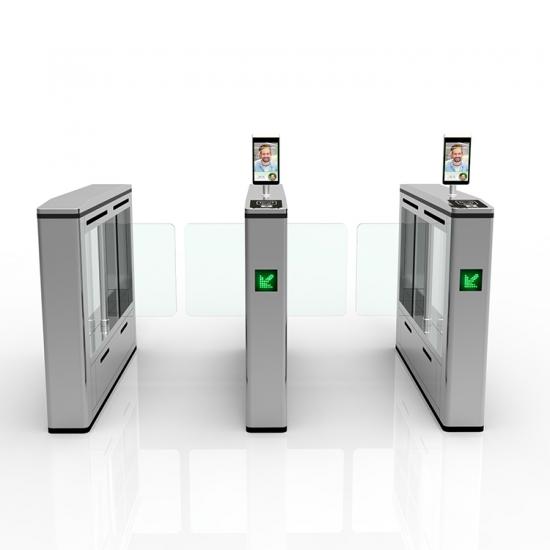

5 work daysOptical flap barrier turnstiles are access control gates for people that allow a comfortable passing with a free opening of 500 mm, offering a feeling of spaciousness. Its operation is to hide the double swings, leaving the free passage. Its triangular shape makes the vertices hamper the passage. But after opening verification of access control system, we perceive the free passage immediately.
Technical Parameters:
|
Material of cabinet |
SUS 304 stainless steel |
|
Drive motor |
DC24V DC brushless motor |
|
Product dimension |
1400*280*990(MM) |
|
Telescopic arm length |
250 MM |
|
Maximum channel width |
550 MM |
|
Gate opening and closing time |
0.6 seconds |
|
Communication Interface |
Standard RS485 interface, distance ≤1200 meters |
|
Passing speed |
40 people/minute (normally open), 25-30 people/minute (normally closed) |
Standard product functions and features:
1. The turnstiles have fault self-checking and alarm prompt function.
2. The operating status of the device can be programmed through the built-in small touch panel LCD screen on the main control board.
3. Mechanical anti-pinch and infrared induction anti-pinch function.
4. Illegal break-in, trailing alarm, reverse break-in gate automatically closes.
5. Anti-shock function, the telescopic arm will automatically lock up when it does not receive the gate opening signal.
6. Infrared induction reset, infrared induction anti-pinch function (with 4 pairs of infrared).
7. It can be connected with various access control systems: IC/ID card, QR code facial recognition, etc.
8. Unidirectional or bidirectional control of personnel entry and exit, infrared induction entry and exit channels.
9. Remote control management can be realized directly via computers.
Installation and after-sales services:
The turnstile come in a fully assembled individual packaging and you just have to put them in place and screw them to the ground.
Users are replied faster for after-sales service. On Saturday and Sunday, consultations are also available.
Leave A MessageThere are many advantages of flap barrier wing gate. First: The speed of opening door is high. Second: Safe. Third: Simple maintenance.
ESD access control speed gate flap barrier is fast opening turnstile gate with ESD detection, which are widely used in electronic industry as entrance & exit gate. It helps electronic factory to eliminate static electricity interference and realize employee attendance.
Flap barrier turnstile is a kind of barrier gate with beautiful appearance, fast passing speed, and extremely effective for personnel verification.
Made of austenitic stainless steel (SUS304), with high mechanical resistance, corrosion resistant, excellent hygiene and cleanliness factor, elegant design and great durability.
Flap turnstile is optical automatic entrance gate used in modern buildings to restrict personal access, especially the commercial office towers with high pedestrian flow requirement. The access control flap turnstile allows authorized entrant and block UN-authorized entry, it is a advanced and touch-less, unattended equipment to manage traffic in your buildings.
Flap barriers are cost-effective and space-saving entrance gates, normally used at commercial and industrial places to control the pedestrian flow, such as subway station, museum, school.
Flap Barrier is the entrance access system which would allow the employees and identified visitors pass the gate quickly. This is the good solution of building security management.
Retractable Flap Barrier is designed to solve the common issue which happened in commercial buildings and other facilities like quick pass of employees and visitors, protect facility property.
