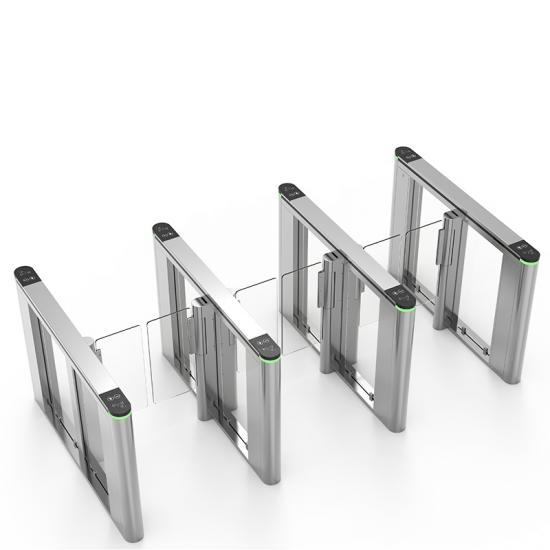

Swing barrier optical turnstile called as speed gate in some occasions, it is usually sued for secure entry control applications.
Item NO.:
LD-S709Payment:
TT / LC / Paypal / Western UnionProduct Origin:
CHINAColor:
Silver or any painted colorGoods stock:
100Shipping Port:
SHENZHENLead Time:

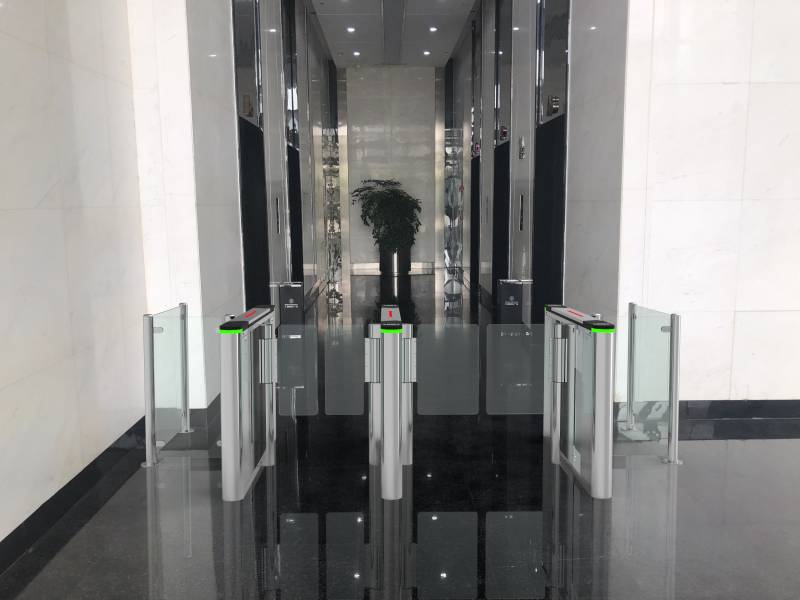

5-10 WorkdaysLD-S709 swing barrier optical turnstile is a simple design but with aesthetic feeling product, Its straight line, round contoured edges and free use of transparent clear acrylic or glass, It provides a significant and enjoyable view to the lobby of high-end office buildings. Thanks to the minimalist industrial design, the size of the product chassis has reached an astonishing 120mm width, extremely narrow and slender design, small footprint, so that swing barrier optical turnstile can be used in high-end office buildings where every inch is premium.
LD-S709 offers single direction and bi-directional access control for facilities by jointing with different access control systems. Personal can hold authorized credential, when the reader or scanner embedded in the turnstile gate read the credential and send its information to the access control board, open signal will be released to open theturnstile gate and allow s single passage in the right direction within a predetermined time. If there is a person try to entry without unauthorized credential or attempt to tailgate, the IR sensors will detect the trespassing or tailgating and release light and sound alarm.
Key Features:
* Slimmest cabinet size optional 100mm-120mm, customized
* Various swing panel height optional
* 900mm aisle width for handicapped use and 600mm width for standard
*Middle double core cabinet create dual lane turnstile and multiple lanes turnstile

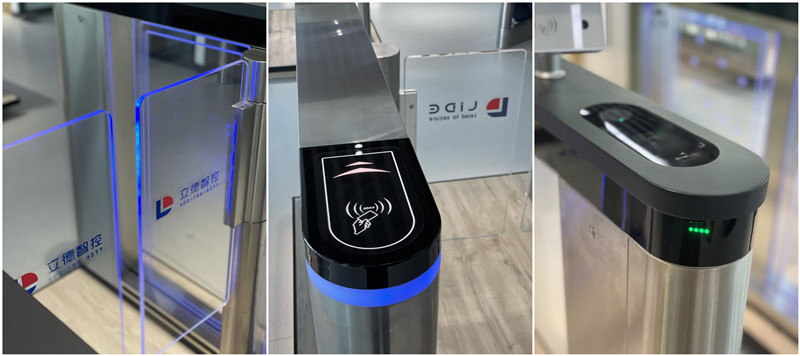

*High-definition LED light strip, Blue-stand by, Red- Forbidden passage, Green- Passage allowed.
* Transparent clear swing panel and side fiber glass partitions.
Company logo or any other design
can be added to the cabinet or swing panels.
|
Moduel No. |
LD-S709 |
|
Size |
1400*120*980mm |
|
Material |
304 stainless steel, tempered glass, acrylic |
|
Access width |
600 mm (Maximum 900mm) |
|
Input voltage |
100V ~ 240V |
|
Drive motor |
DC 24V brushless motor, low noise |
|
Passing speed |
35~40 people / minute |
|
Applicable temperature |
: -20~70℃ |
|
Life Time |
9 million times; |
|
The material thickness |
1.5mm |
|
Response time |
<1s |
Leave A MessageSpeed turnstile gate use fast motors, beautiful appearance, fast opening speed, etc., suitable for corporate headquarters, high-end commercial buildings, high-end office buildings, interstellar hotels, etc.
The speed turnstile gate is directly driven by a motor to open the door quickly, which is very suitable for places with heavy traffic. And there is no noise, very suitable for office buildings, swimming pools, hotels, etc.
Modern design, faster pass speed, the speed gate is usually used at the high-end and crowded places such as clubs, smart buildings, villa communities, hotel lobbies, etc.
Low noise speed gate is the fast passage, especially suitable for places with with heavy traffic. It is glass turnstile gate, slim and modern desigan.
Speed gate is upgraded glass security swing turnstile which allows quick pass, always used as lobby entrance access control barrier gate in high traffic area . It is slim design, glass swing panel, It can be one -way or bi-direction passage, passage width and swing panel height can be customized made accordingly.
Speed gate is stylish glass swing turnstile gate with full stainless steel cabinet and fiber glass or acrylic sliding panel, it is created for access control with high requirements for design and passage’s comforts. Speed gate can provide fast, convenient contact-less passage.
CN Safety Gate Tech Speed gate offers high efficiency contact-less bi-direction passage. Integrated with access control system, speed gate allows authorized person quick pass, and prevent unauthorized passage. The design of speed gate combined the increasing technical requirement on the entrance gate but also the comfort of passage.
LD-S709 is a fast, streamlined speed gate with elegant design, it is made of 304 stainless steel with vacuum ion plating and anti-fingerprint treatment, which makes its flawless appearance.
