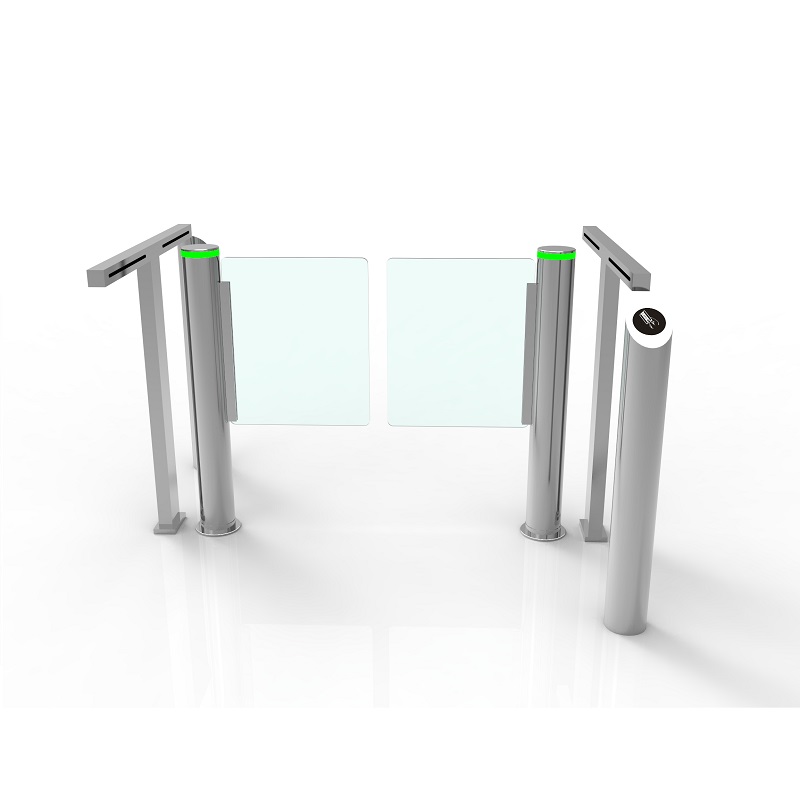

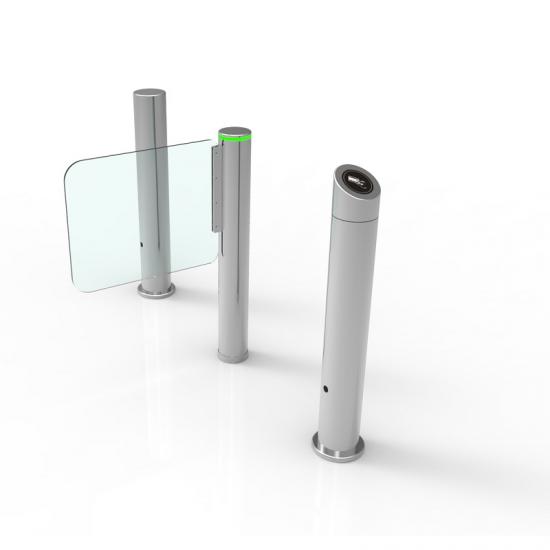

Automated swing turnstile gate for handicap, it is the swing turnstile with wide passage at least 800-1000mm , which allows wheelchair to pass in bi-direction. This kind of turnstiles are always required together with standard passage width 600mm turnstile and used in public commercial buildings. Also delivery man or pedestrian with large packages can use this channel.
Item NO.:
LD-B525Payment:
T/T, L/CProduct Origin:
ChinaColor:
SliverGoods stock:
10Product weight:
40 kgsShipping Port:
SHENZHENLead Time:
5-10 días de trabajoSwing turnstile gate for handicap is one of the wide passage swing turnstile gate, while in USA, they were called as ADA turnstile gate for access control. It was designed to be wide at least 800mm. And it is cylinder installed, diameter is 141 mm, which is quite small, so normally it is installed in the sides of standard swing turnstile gate aisles. Work as an alternate passage channel with disabled or delivery man. It is a bi-direction swing barrier gate for wheelchair passage too.
Specifications:
| Size | φ141*1000 mm |
| Material | SUS304, mirror finish stainless steel tube, 2.0mm |
| Channel width | 600-1100mm |
| Passing speed | 35~50 person/minute |
| Input voltage | 100V~240V |
| Drive voltage | 24V |
| Equipment power | 35W |
| Opening and closing time | less than 1S |
| Response time | 0.2S |
| Communication interface | RS485 |
| Communication distance | less than 1200m |
| Opening signal input | dry contact |
| DC brush motor | 30W/40K |
| Service life | ≥9million times |
Features about LD-B5O9 :
1. 800-1000 mm passage width, special design for handicap use.
2. Cylinder design, occupies a small area and saves space
3. Stainless steel cabinet with transparent acrylic or fiber glass swing panel as barrier, modern design, it can be integrated into any decoration style
4. Remote control or button switch, the max distance of remote control can be 30 meters, and button switch can be 10 meters. So the security room can directly control access and help handicapped entrant or exit.
5. One way or bi-direction can be set.
6. Free passage when power off, easily pull to the exit direction. Automatic reset when power is back.
7. Center rotating column, diameter 141mm
8. Customized swing panel size and height
Leave A MessageThe swing turnstile is an intelligent management device designed to restrict or control access to buildings or safe areas.
LD-B509 swing barrier turnstile is an intelligent channel, which could integrate multi opening way, such as IC card, ID card, QR code, fingerprint, face recognition devices.
CN Safety Gate Tech is a professional manufacturer of intelligent swing gates for supermarket entrances, safe and stable, customized solutions according to needs, logos and welcome messages can be customized.

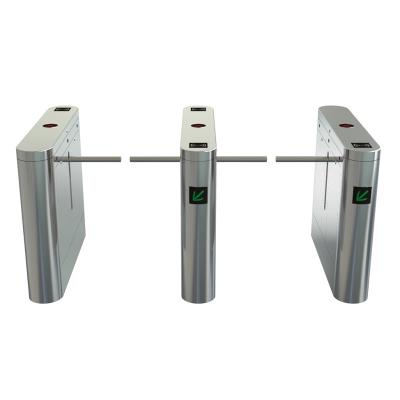

Drop arm barrier turnstile is made of stainless steel #304, brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use.
Swing barrier gate has the most widely applications with its wider channel width.
The use of swing gates can make people flow through the passage in an orderly manner.
The swing gate turnstile organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies, and adopts a standard electrical interface to the outside, it can facilitate system integration of reading and writing devices such as magnetic cards, barcode cards, ID cards and IC cards.
The swing turnstile is the half height automatic entrance, with different kind of sensor controlled component, it would be suitable for access management and keep the safety of an area.
