Item NO.:
LD-B510Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:
7-10 DaysOutdoor Electronic Swing Gates Barrier Turnstiles

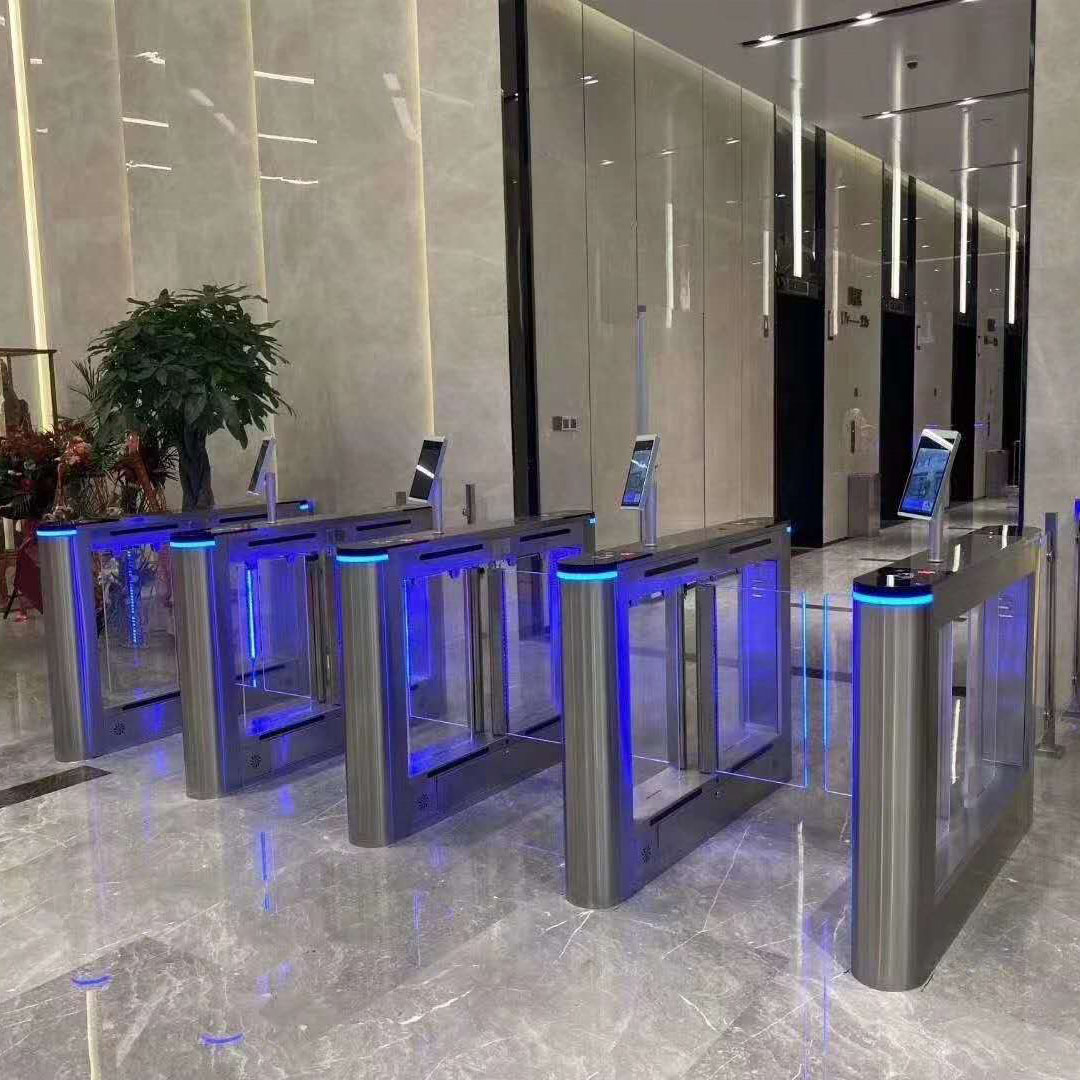

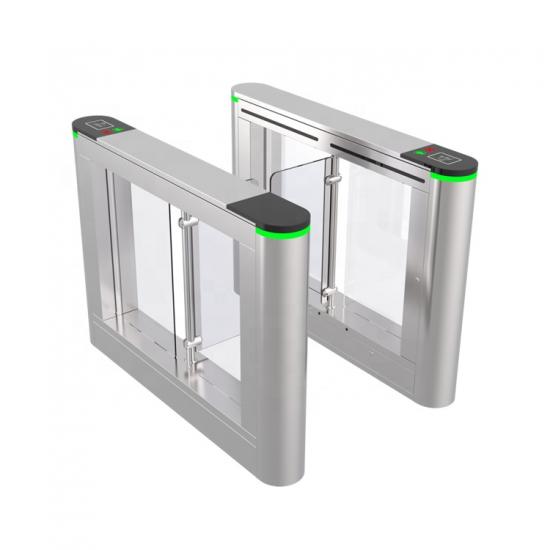

The swing barrier turnstile is the popular alternative as the entrance in office building and hotel. We could choose the acrylic or tempered glass to make the swing gates. Every swing gate is two-way traffic with 90° opening angle to each direction.
The electronic barrier turnstiles can be controlled variety of access control system, such as face-with-mask recognition, ID/IC card reader, fingerprint module, etc. The electronic swing gates respond the instruction within 1 seconds, so it would suitable for low to middle density of pedestrian.
|
Moduel No. |
LD-B510 |
|
Size |
1400*190*980 mm |
|
Material |
304 stainless steel, tempered glass, acrylic |
|
Channel width |
600mm (Maximum 1000 mm) |
|
Thickness of the outer box |
1.2mm / 1.5mm |
|
Drive motor |
DC 24V Brushless motor |
|
Input voltage |
100V ~ 240V |
|
Traffic direction |
Two-way traffic; |
|
Passing speed |
35~40 persons/minute |
|
Opening methods |
ID/IC card and other readers verify opening, infrared induction automatic opening, opening button, etc. |
|
Protection functions |
electromechanical anti-collision, infrared alarm for illegal intrusion |
|
Life |
9 million times; |
|
Software support |
Ticket system, Attendance system, Access control system, Face recognition, etc. |
Product Feature:
1. With two-way traffic function, the steering lever is divided into two directions or one direction.
2. If the visitors not go through within the specified time, the swing gates will automatically lock again (Default time is 5 seconds). The settings of waiting time can be change depend on local situation
3. We choose the 304 stainless steel to make the frame of equipment and the Industrial standard brushless motor, the noise is low and quality is stable.
4. With the self-check and alarm function, the indoor swing gates would alarm and LED light turn to red color when the equipment breaks down or someone break in illegally.
5. The swing turnstile could connect with various devices and remotely controlled through computer if need to maintain or revise the data of settings.
Leave A MessageThe swing turnstile is an intelligent management device designed to restrict or control access to buildings or safe areas.
LD-B509 swing barrier turnstile is an intelligent channel, which could integrate multi opening way, such as IC card, ID card, QR code, fingerprint, face recognition devices.
CN Safety Gate Tech is a professional manufacturer of intelligent swing gates for supermarket entrances, safe and stable, customized solutions according to needs, logos and welcome messages can be customized.
Automated swing turnstile gate for handicap, it is the swing turnstile with wide passage at least 800-1000mm , which allows wheelchair to pass in bi-direction. This kind of turnstiles are always required together with standard passage width 600mm turnstile and used in public commercial buildings. Also delivery man or pedestrian with large packages can use this channel.
Drop arm barrier turnstile is made of stainless steel #304, brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use.
Swing barrier gate has the most widely applications with its wider channel width.
The use of swing gates can make people flow through the passage in an orderly manner.
The swing gate turnstile organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies, and adopts a standard electrical interface to the outside, it can facilitate system integration of reading and writing devices such as magnetic cards, barcode cards, ID cards and IC cards.
