Item NO.:
LD-B505Payment:
L/C, T/TProduct Origin:
ChinaGoods stock:
100Shipping Port:
ShekouLead Time:
7-10 working daysAutomatic Drop Arm Barrier Swing Turnstile Gate
Product description:
LD-B504 Drop arm barrier gates are designed to control pedestrian entering and exiting, adopt stainless steel #304, brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
Product specification:
| Moduel No. | LD-B505 |
| Size | 1200x280x1000mm |
| Material | 304 stainless steel |
| Open speed | ＜1s |
| Traffic speed | 35 -40 persons/min |
| Channel width | Max 600mm |
| Length of the arm | 300mm (250-450 customized) |
| Opening way | QR codes, RFID, fingerprints, facial recognition, IC/IC card |
| Communication | 485 |
Product features:
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status could be programmed and controlled with the built-in keyboard on the main board
3. Anti-breakthrough function.
4. Mechanical anti-pinch function.
5. Automatic reset function.
6. Synchronization functions (for dual gate)
7. Direction can be set as one way or two way.
8. Gate can be set as normally open or normally closed
9. Can be used with variety of card readers: IC / ID card readers, bar codes, facial recognition, fingerprints, etc.
10. Gate auto opens when power off and auto close when power on, complying with fire safety requirements
11. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
12. Counter function (optional)

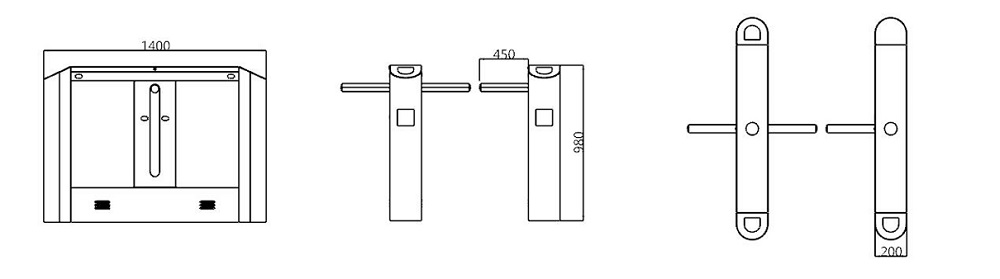

Product dimension:

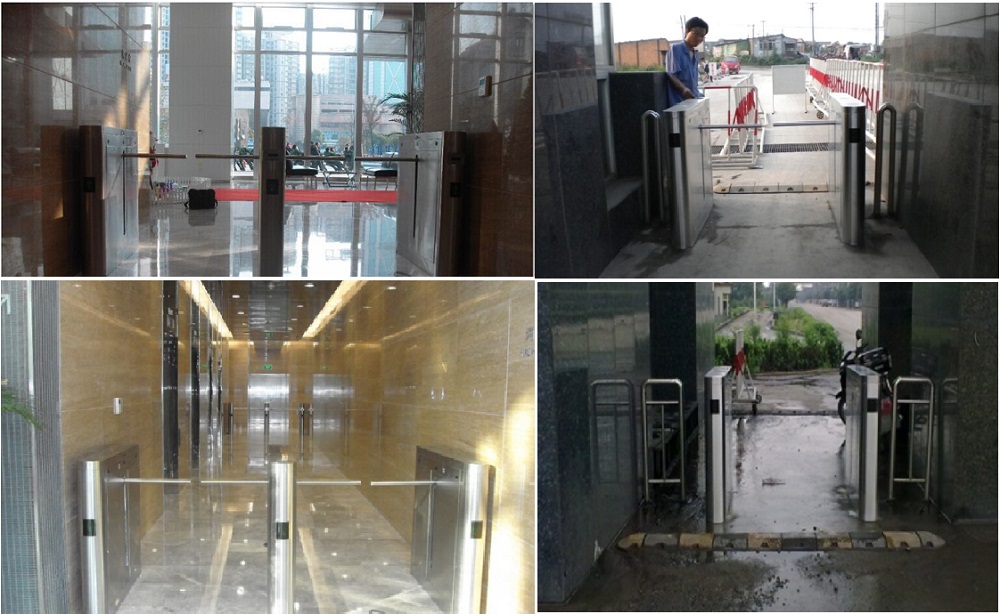

Product application photos:
Leave A MessageThe swing turnstile is an intelligent management device designed to restrict or control access to buildings or safe areas.
LD-B509 swing barrier turnstile is an intelligent channel, which could integrate multi opening way, such as IC card, ID card, QR code, fingerprint, face recognition devices.
CN Safety Gate Tech is a professional manufacturer of intelligent swing gates for supermarket entrances, safe and stable, customized solutions according to needs, logos and welcome messages can be customized.
Automated swing turnstile gate for handicap, it is the swing turnstile with wide passage at least 800-1000mm , which allows wheelchair to pass in bi-direction. This kind of turnstiles are always required together with standard passage width 600mm turnstile and used in public commercial buildings. Also delivery man or pedestrian with large packages can use this channel.
Swing barrier gate has the most widely applications with its wider channel width.
The use of swing gates can make people flow through the passage in an orderly manner.
The swing gate turnstile organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies, and adopts a standard electrical interface to the outside, it can facilitate system integration of reading and writing devices such as magnetic cards, barcode cards, ID cards and IC cards.
The swing turnstile is the half height automatic entrance, with different kind of sensor controlled component, it would be suitable for access management and keep the safety of an area.
