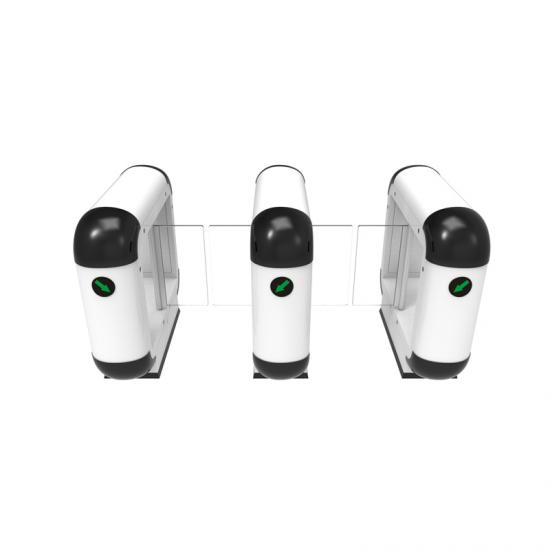

Kindergarten High Security Optical Swing Barrier Turnstile

As a manufacturer of turnstile gates, CN Safety Gate Tech's turnstile can be used in different applications. Kindergarten turnstile is a friendly- use gate for children, cute design, no exposed screws and sharp corners. Not only eliminates external risks, but also avoids possible damage caused by the turnstile itself.
  • Item NO.:

    LD-B523
  • Payment:

    T/T, L/C
  • Product Origin:

    Made in China
  • Color:

    White
  • Goods stock:

    50
  • Product weight:

    40 kgs
  • Shipping Port:

    Shenzhen
  • Lead Time:

    5 work days
Share To :
  • Product Details

Kindergarten turnstile gates are used for kids' passage at the entrance and exit of kindergarten. The kindergarten barrier gates are automated mechanical equipment. After swiping the card, the swing barriers will open automatically, and the equipment automatically close after passage. This system adopts a combination of intelligent software and hardware. , It can effectively solve the problems of children's pinch injury caused by automatic closing.

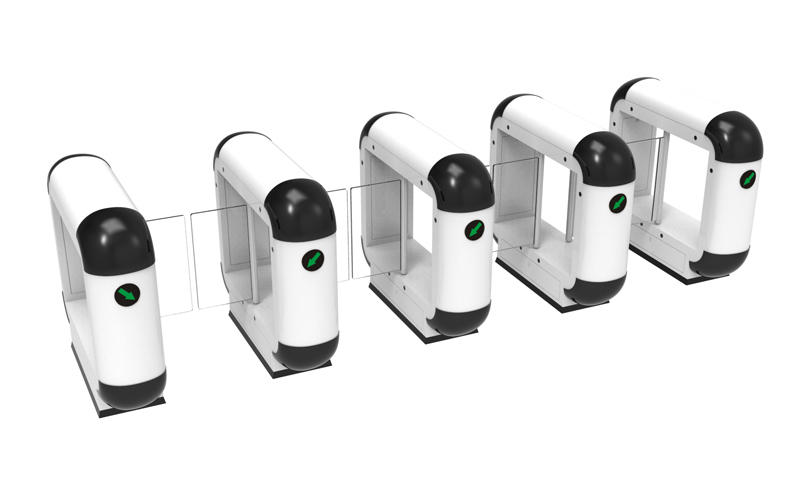

Kindergarten barrier gate

Technical Parameters:

Dimension

1200x280x900 mm

Material

iron

Channel width

600 mm

Thickness

1.2/1.5/2.0 mm

Swing arm material

10mm acrylic, tempered glass

Passage way

IC/ID card

Power supply

AC220V/AC110V

Work temperature

-15°C - 75°C

Relative humidity

less than 95%, no condensation

Communication interface

TCP/IP/RS485

Drive motor

brushless motor

Swing running time

about 2S





Unique features of Kindergarten turnstile gates:

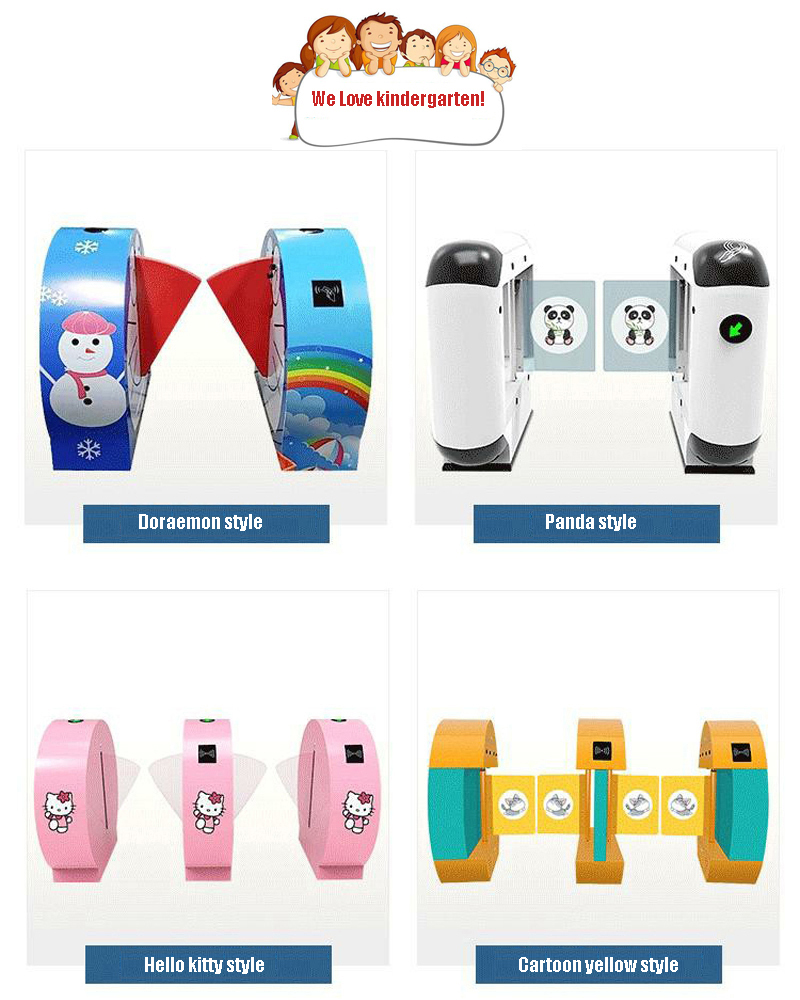

1. Cartoon designs: Cute cartoon shape design, full paint, no exposed screws or sharp edges



2. Iron with spray paintings which comply with safety regulations.



3. Infrared anti-pinch: Avoid injuring children from opening and closing the gate.





Functions:



1. Swiping cards or facial recognition for passing the turnstiles.



2. With anti-pinch function.



3. Language broadcast and alarm functions



4. Automatic alarm function for unauthorized entering.



5. Anti-collision function, when the opening signal is not received, the telescopic arm is automatically locked.



6. Automatic reset function. Access control system will automatically cancel the permit if pedestrian fails to pass within the specified time.



7. Infrared and mechanical dual anti-pinch function. When the telescopic arm of the turnstile gate is blocked during the reset process, the motor will automatically rebound or stop within the specified time, the intensity is small, and the sound and light alarm signal will be issued at the same time.



8. The turnstile gate can be connected with a variety of readers, and can be managed and monitored by a remote computer.



9. Run smoothly and  low noise.

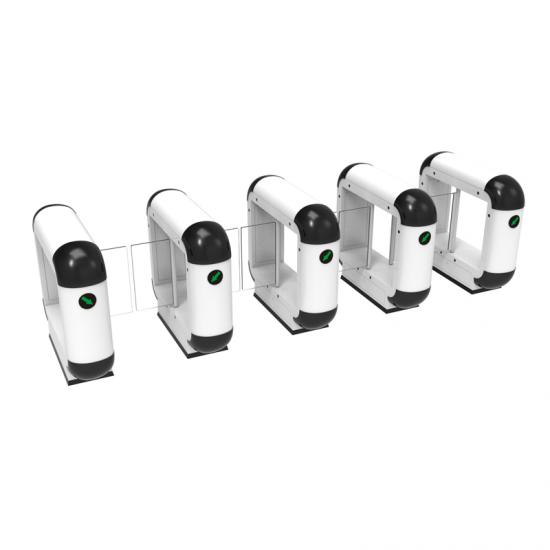

 Kindergarten swing turnstile
