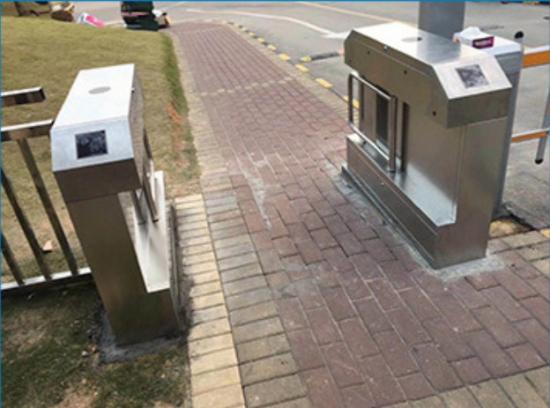

Swing barrier gate is mainly used for channel entrance and exit management, usually used of high pedestrian traffic flow in both directions. Most of the access control turnstiles can be used to pass through some non-motorized vehicles such as pedestrians, bicycles, mopeds and handicapped vehicles.
Item NO.:
LD-B501Payment:
T/TProduct Origin:
ChinaGoods stock:
100Shipping Port:
ShekouLead Time:

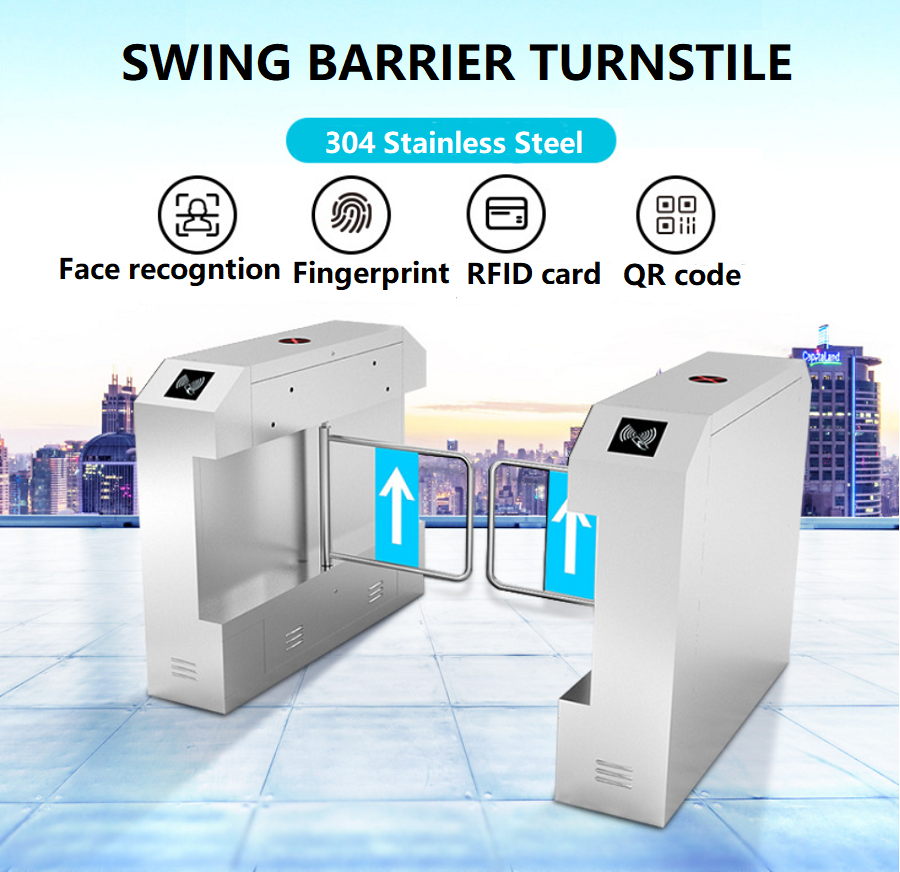

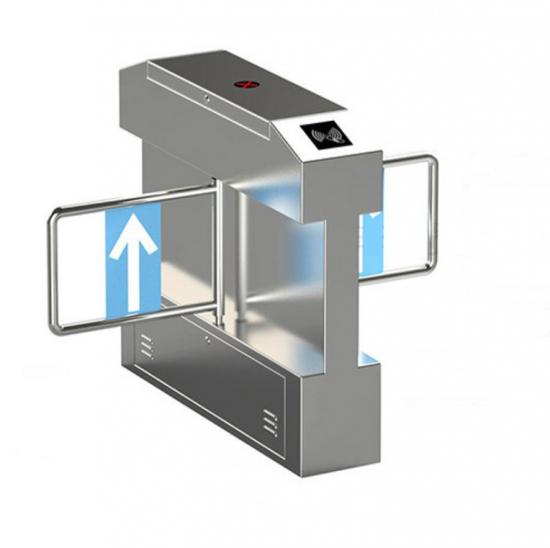

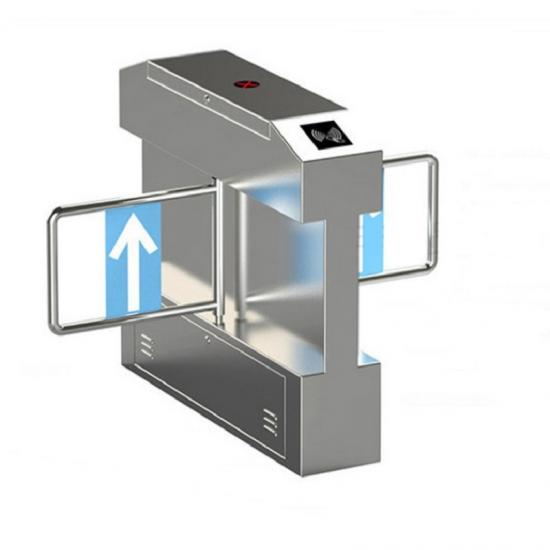

7-10 workdaysThe LD-B501 swing barrier turnstileis made of SUS304 stainless steel stamping and forming, which is beautiful in appearance, anti-corrosion, durable, and can resist external damage. In addition, the standard electrical interface is adopted, which can easily integrate barcode card, ID card, IC card and other card readers on the equipment, providing a civilized and orderly way of passage for personnel entering and exiting, and at the same time, it can prevent illegal personnel from entering and exiting. In addition, the system It is also specially designed to meet the fire protection requirements. In the event of an emergency, it ensures that the passage is unobstructed and facilitates the evacuation of personnel in time.
Features:
1. With zero self-check function, it is convenient for users to maintain and use
2. Prompt alarm function when Illegal entry
3. Anti-shock function, when the opening signal is not received, the telescopic baffle is automatically locked
4. Telescopic arm synchronization function
5. Infrared/mechanical dual anti-pinch function, when the retractable baffle is blocked during the reset process, the motor will automatically stop working within the specified time, and the strength is very small, and an alarm signal will be issued at the same time
6. With automatic reset function, after the pedestrian reads the valid card, if the pedestrian does not pass within the time specified by the system, the system will automatically cancel the pedestrian's permission to pass this time
7. One-direction or bidirectional control of personnel entry and exit
8. The unified standard external electrical interface can connect with a variety of card readers, and remote control and management can be realized through the management computer
9. The whole system runs smoothly with low noise
Specification:
| Moduel No. | LD-B501 |
| Brand | CN Safety Gate Tech |
| Size | 1200x280x980 |
| Channel width | 600-1050mm |
| Drive motor | AC220V±10％/50Hz |
| Passing speed | 35~40 persons/minute |
| Life | 5million times; |
| Applicable temperature | : -20~75℃ |
Details of the product:

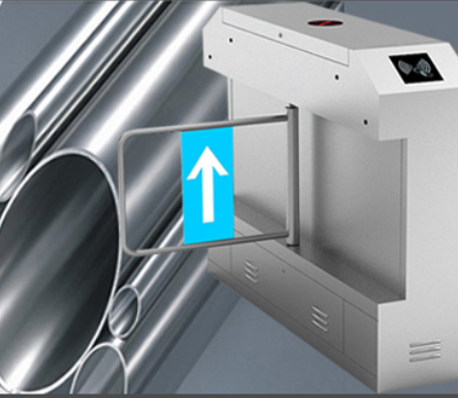

1. 304 stainless steel case
The shape of the whole product is stamped and formed by stainless steel plate, rust-proof, durable, rust-proof, waterproof, anti-corrosion, long service life, simple and durable

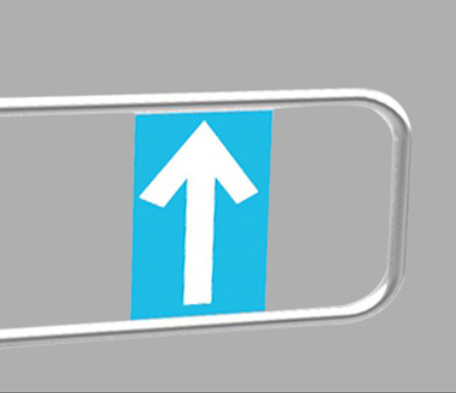

2. Intelligent gate
After the gate is opened, the system will automatically cancel the user's permission to pass within the specified time, and it will automatically reset 8 seconds after the standard is turned on. After the power is off, the channel will automatically open and automatically closed after the power is turned on.

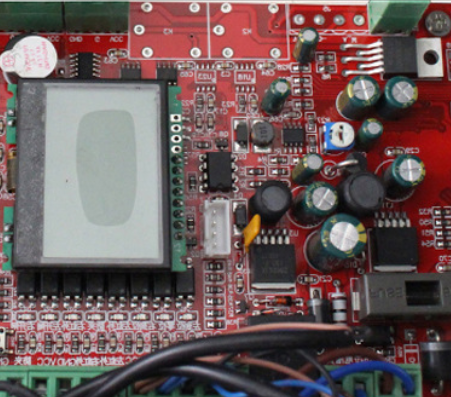

3. Powerful smart motherboard
It can read the card in two directions; you can also read the card while the other direction is prohibited; or read the card while the other direction is free to pass, and the working mode of the gate can be set through the mainboard menu

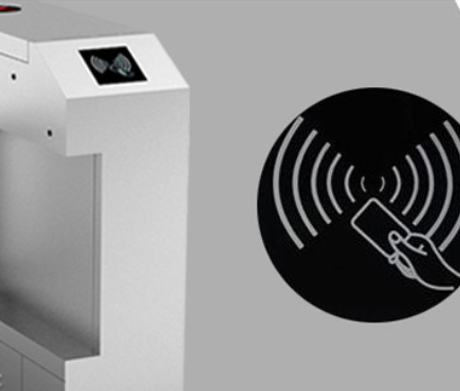

4. Access control customization
One-way or two-way control (access control can be selected according to the needs of the appropriate access control system, such as: RFID card, fingerprint recognition, face recognition, QR code recognition, etc.)
