P type swing barrier gate is customized made for handicapped individuals in wheelchairs or large package passage such us pedestrian with shopping carts or trolley entry.
Item NO.:
LD-B507Product Origin:
CHINAColor:
Silver or any painted colorGoods stock:
100Shipping Port:
SHENZHENLead Time:
5-10 WorkdaysLD-B507 P type swing gate barrier

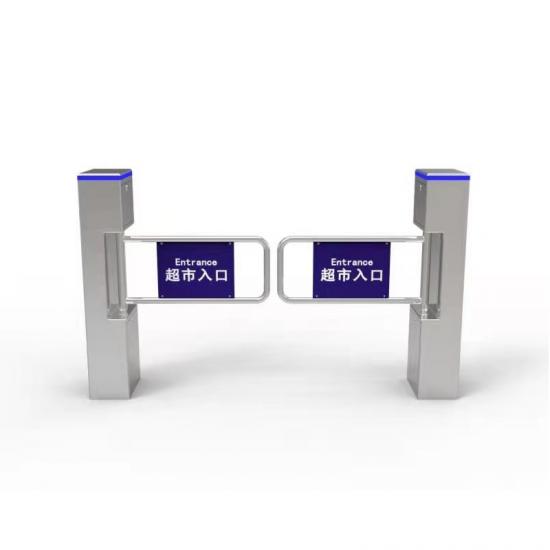

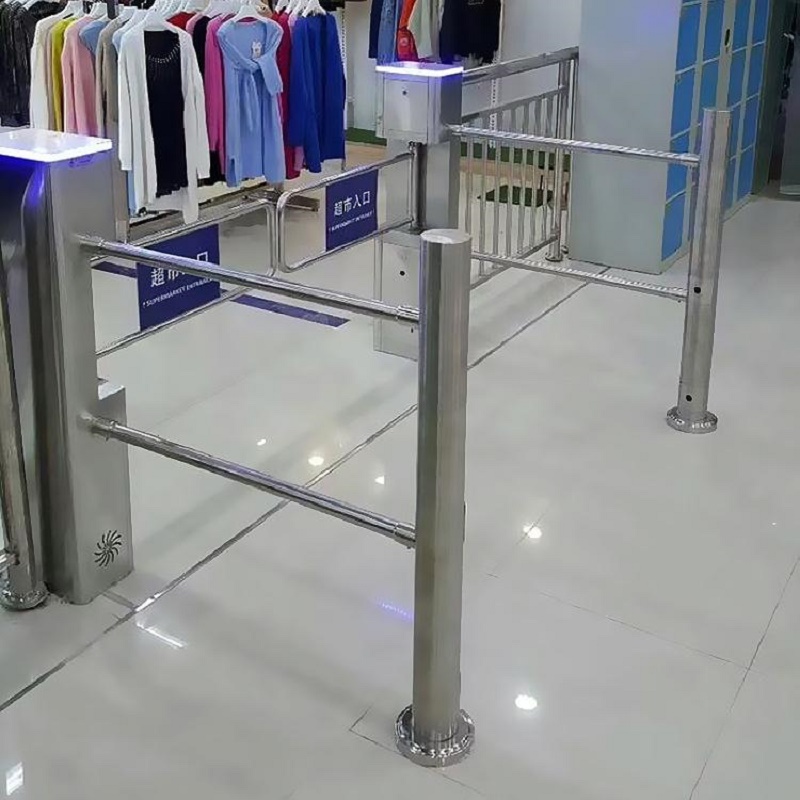

P type swing barrier gate is bi-directional full automatic gate, it can be installed alone or with other turnstiles. In supermarket, it always works with pillar of infrared sensors, so it can realized smooth, quiet and quick pass for trolley. In amusement park, it always works with tripod turnstile, so it can provide convenient entry for disabled visitors.

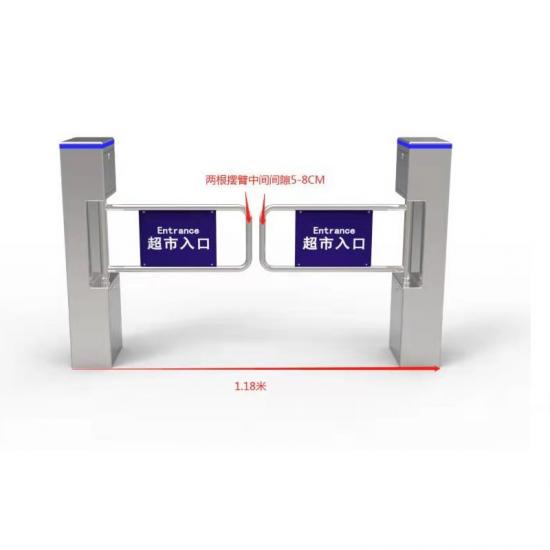

P type swing gate barrier can swing 90 degree in bi-directions. And one single P gate allows max opening for 900mm wide. while two P gates can work simultaneously and provide additional clear opening for options.
Product features:
1, Material: Customized choice 304 # or 201# stainless steel, Mat finish or mirror finish.
2, Drive mechanism: DC motor drive and positive locking mechanism
3, Operation modes: Single traffic direction, bi-direction traffic,
4, LED indicators to display the traffic status
5, Highly integrated with RFID/ Biometric recognition reader, Qr code & Bar code scanner.
6, Durable design for long service life up to 9 million times
Basic information:
|
Moduel No. |
LD-B507 |
|
Size |
200*200*980mm |
|
Material |
304 stainless steel, acrylic |
|
Access width |
600mm (Maximum 900 mm) |
|
Input voltage |
100V ~ 240V |
|
Drive motor |
DC 24V motor, low noise |
|
Passing speed |
35~40 persons/minute |
|
Applicable temperature |
: -20~70℃ |
|
Life Time |
9 million times; |
|
The material thickness |
1.2mm/ 1.5mm |
|
Response time |
<1s |
|
Swing direction |
One-way / two-way |
|
Opening methods |
ID/IC card reader, infrared induction automatic opening, button opening, etc. |
Projects:
