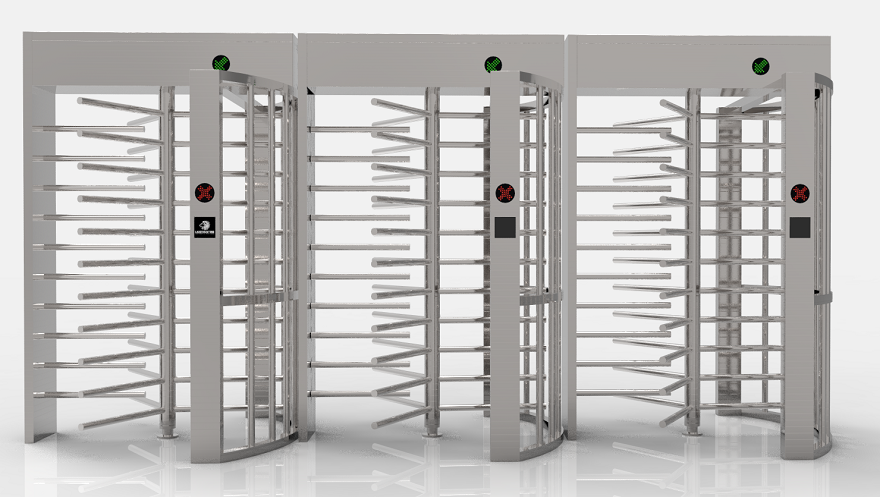

Bi- direction full height turnstile gate is one of the high security access control entrance gate for high risk facilities. It is stainless steel material, anti-rust, capable of outdoor applications. Floor to ceiling design makes it highest security level among all turnstile gate. CN Safety Gate Tech is professional full height turnstile manufacturer, which produces single passage & double lane full height turnstiles
Item NO.:
LD-Q805Product Origin:
ChinaGoods stock:
100Lead Time:

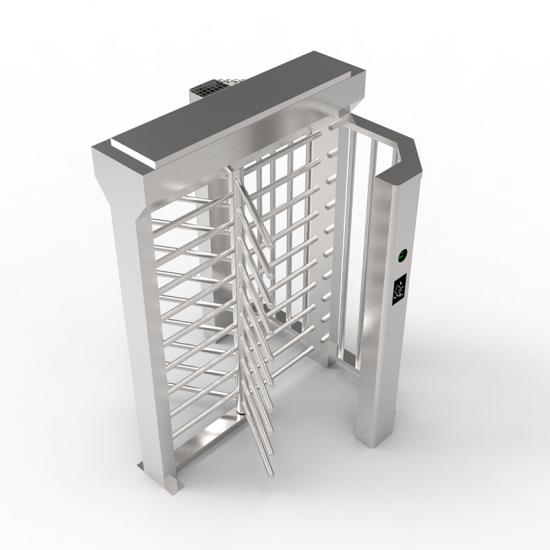

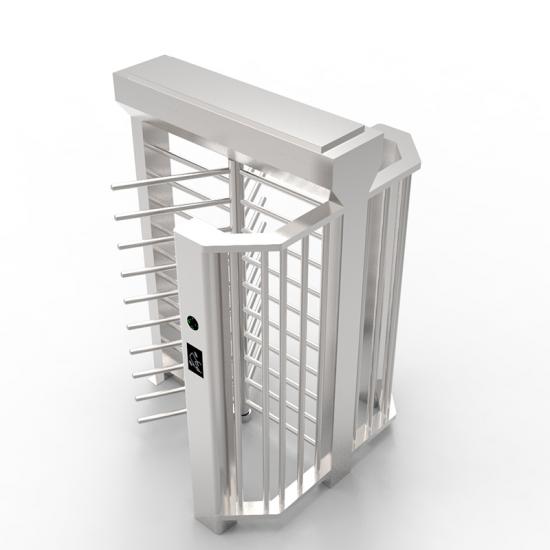

5-10 workdaysLD-Q805 High security access full height turnstile is a single passage full height turnstile. Comes from half height turnstile and developed from revolving door, floor to ceiling height improves security level. Different from revolving door, the barrier of full height turnstile is strong stainless steel bars, not breakable glass. Therefore it is widely used high security occasions such as stadium, prison, train station..and realize unattended access control.
The full-height turnstile is composed of a rotating railing (obstacle) divided into 120° three bars or a 90° cross railing. Passage width can be 550mm-600mm, it only allows one entrant at one time. It can efficiently, safely and automatically carry out entrance and exit control.
Full height turnstile can be integrated with various access control devices, such as: ID card, IC card, bar-code card, fingerprint machine, palm recognition device, face recognition and others .
Advantages of full height turnstile for stadium and scenic spots.
1. Good confidentiality to prevent fake tickets. The full-height turnstiles used in stadium & scenic spots adopt encrypted bar-code tickets or IC card tickets, which are automatically identified by the ticket inspection system to prevent fake and invalid tickets;
2. Fully electronic charging management. The full-height transfer gates used can make the number of ticket sellers and the amount of tickets in the ticket gate can be reflected in the computer of the ticket management center in real time, and various required reports can be printed out at any time, according to the report data.Timely grasp the operating status and discover the existing problems in time, so as to improve the work and strengthen the management
3. Full-height turnstile ticket inspection processing technology speeds up the ticket inspection and management of electronic tickets, and effectively ensures the real-time requirements for tourist passage.
Basic information about LD-Q805:
Model No.
LD-Q805
Size
1500*1400*2300mm（ length*width* height)
Material
304 stainless steel, 38mm diameter tube, 1.2/1.5mm thickness
Unlocking time
1s
Traffic speed
≤30 persons/min
Channel width
≤600mm
Input voltage
220V, 50HZ
Drive voltage
24V
Ambient temperature
: -15~+55
Power
30W
Opening signal input
dry contact
Opening method
push button, face recognition, RFID card reader, finger print
Leave A MessageTripod Turnstile is also called waist height turnstile or three-arm turnstile. It is one of the most widely used security pedestrian access control products.
Full height turnstile is the safest gate to control access , it is outstanding in anti-collecting, anti-tailing and anti-drilling .
The function of the flap barrier gate is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety and convenience.
Flap barrier gate is also called retractable speed gate, which is a kind of equipment of the access control system. It is often used in places with large flow of people at the entrance and exit.
Wing gate, which is also called flap barrier gate, is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety, and convenience.
The Full Height Turnstiles are the most secure, durable and convenient way for entry and exit traffic control. With all kinds of access control system, it can realize security and access control function by forbidden tailgating and unauthorised entry. It can be indoor or outdoor used in singel lane/ double lane / multi lane.
Half height tripod turnstile provide automated access control in facilities entrance of low pedestrian flow. With 3 rotating arms, it only allows 1 person to pass at one time. Full 304 stainless steel structure makes it capable for outdoor applications, bi-direction , full integrated with all kinds of access control systems.
This fully automatic rising bollard is made of stainless steel into a sturdy housing, which effectively prevents the entry of vehicles in places with many pedestrians.When retracted, there is no obstruction or tripping hazards.
