Item NO.:
LD-Q806Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:
7-10 Days
LD-Q806

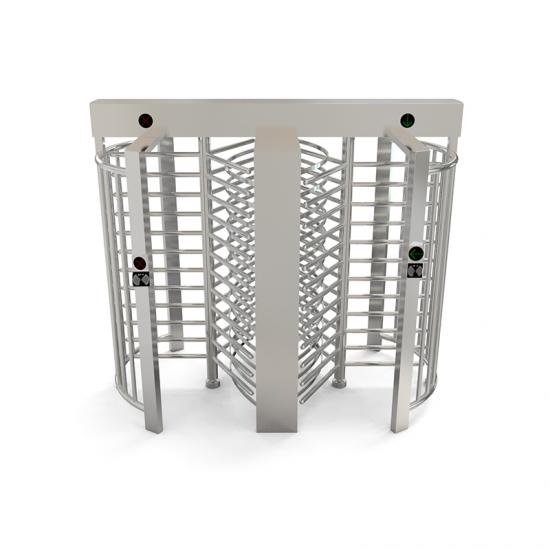

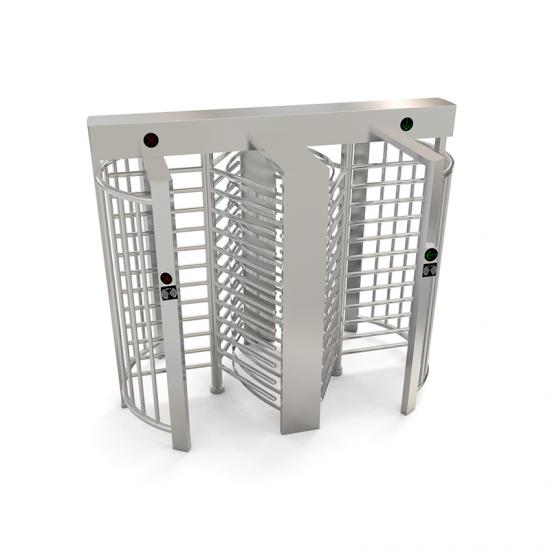

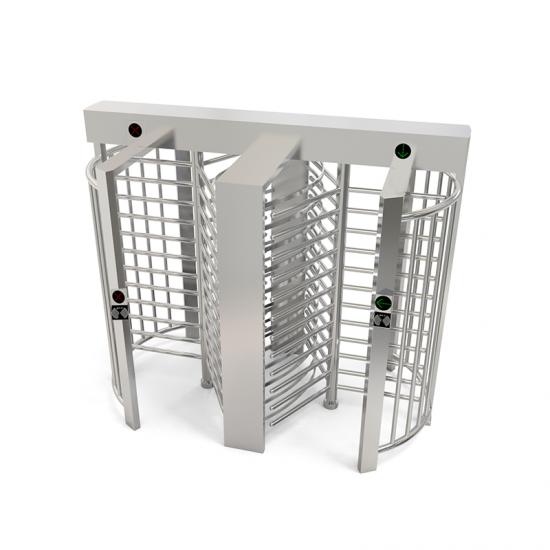

Dual-Lane Full Height Rotary Turnstile Gate
Full Height Turnstile is suitable for construction which need the high-level security controls. It could prevent unauthorized access from the entrance outdoor. Full Height Turnstiles Gate is the first line of guard for your property.
Dual-lane Turnstile model is designed for high volume of pedestrian flow, especially the manufacturing base and factories. The frame of gate is made of 304 stainless steel , that is the standard material. If there is close to the sea or has special requirement, it could be upgraded with 316 stainless steel.
Parameters:
|
Model No. |
LD-Q806 |
|
Size |
2200*1350*2300 mm (L*W*H) |
|
Material |
304 stainless steel |
|
Channel width |
600mm |
|
Thickness of the outer box |
2.0 mm |
|
Input voltage |
AC 100 ~ 240V, 50/60Hz |
|
Traffic direction |
Single or bi-direction |
|
Passing speed |
25~30 persons/minute |
|
Life |
5 million times; |
Features:
*Three wings rotor rotates 120 degrees and four wings version rotates 90 degrees.
*Device could be set to remains locked or unlocked during power failure mode.
* It is easy to configure as single or bi-directional passage for each lane.
* The LED lights in the ceiling are provided for easy understanding of the traffic direction.
* Rotary turnstile has special device to prevent the users walk back once the rotor moves 30 degrees from original position.
* Electromagnetic drive mechanism ensures smooth and quiet operation.
* Allows to paired with external access control hardware, such as RFID card reader, fingerprint access controller as well as face recognition reader.
*Application for high-traffic sensitive locations, such as airport, power plants, military base, factory, etc.
Leave A MessageTripod Turnstile is also called waist height turnstile or three-arm turnstile. It is one of the most widely used security pedestrian access control products.
Full height turnstile is the safest gate to control access , it is outstanding in anti-collecting, anti-tailing and anti-drilling .
The function of the flap barrier gate is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety and convenience.
Flap barrier gate is also called retractable speed gate, which is a kind of equipment of the access control system. It is often used in places with large flow of people at the entrance and exit.
Wing gate, which is also called flap barrier gate, is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety, and convenience.
The Full Height Turnstiles are the most secure, durable and convenient way for entry and exit traffic control. With all kinds of access control system, it can realize security and access control function by forbidden tailgating and unauthorised entry. It can be indoor or outdoor used in singel lane/ double lane / multi lane.
Half height tripod turnstile provide automated access control in facilities entrance of low pedestrian flow. With 3 rotating arms, it only allows 1 person to pass at one time. Full 304 stainless steel structure makes it capable for outdoor applications, bi-direction , full integrated with all kinds of access control systems.
This fully automatic rising bollard is made of stainless steel into a sturdy housing, which effectively prevents the entry of vehicles in places with many pedestrians.When retracted, there is no obstruction or tripping hazards.
