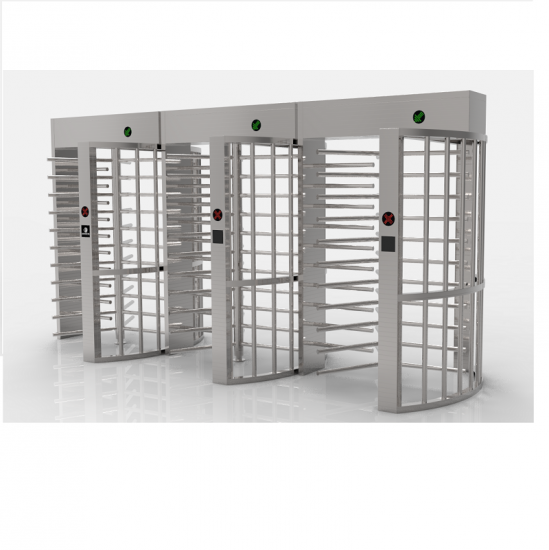

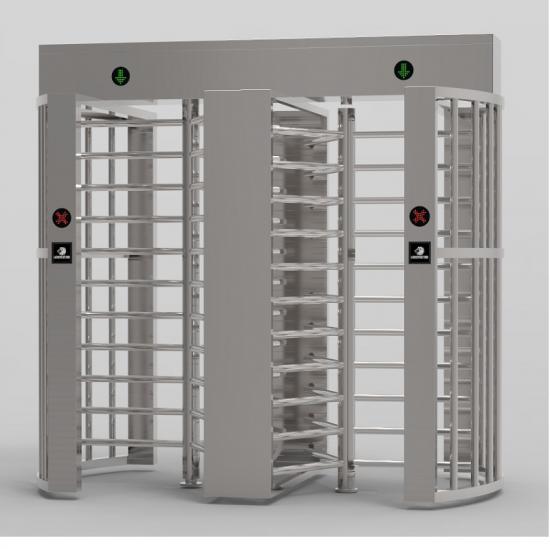

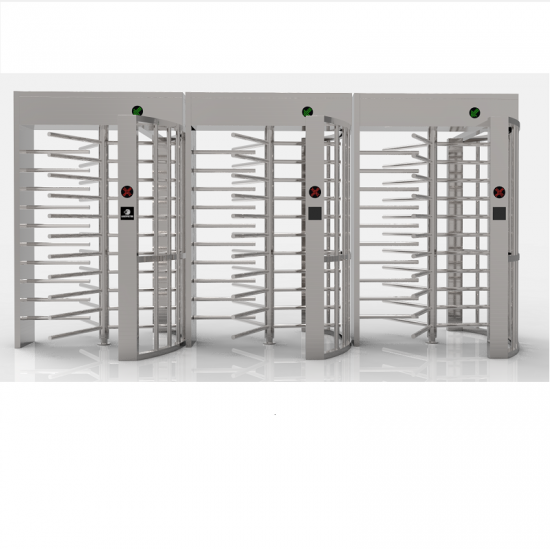

Full height turnstile is one of the entrance security gate and designed for places where high level security is required. It combines biometric recognition , RFID card access and QR code or Bar code scanners to realize an unattended access management system.
Item NO.:
LD-Q808Payment:
T/T, L/CProduct Origin:
ChinaGoods stock:
100Shipping Port:
ShenzhenLead Time:

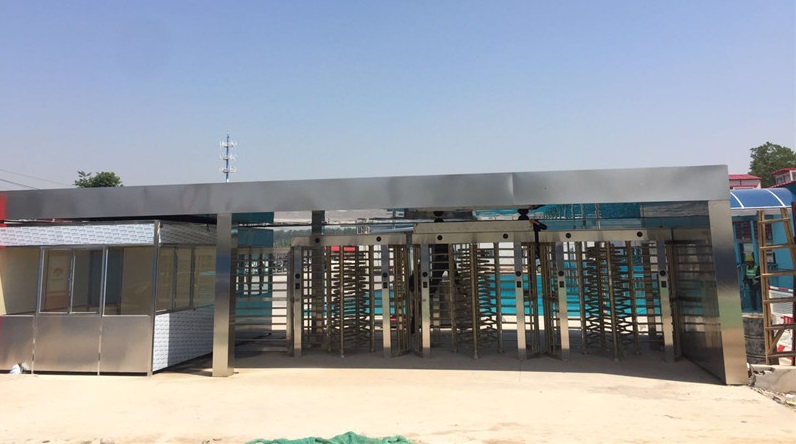

5-10 workdaysBiometric finger print full height turnstile is the most widely used in construction site access control entrance gate. Entrance security gate full height turnstile also called full body turnstile, it is from floor to ceiling height, compared to half height tripod turnstile or other optical turnstile, it provides the highest security level.
The body is made from high quality SUS 304 stainless steel or painted steel, the 304 stainless steel surface is brushed to make it rust proof, anti-collision, dust proof , robust and water proof. It provide a safe and classic access solution in all kinds of outdoor circumstances.
Functions of full height turnstile：
1. In card access full height turnstile gate, after the pedestrian swipe a valid card, gently push the bars, they will automatically rotate by a certain angel in forward direction and permit passage.
2. Anti-intrusion: when the card is unauthorized or no valid card swiped, the passage is prohibited. The push on the bars will be recognized as illegal intrusion. The main-board will issue alarm and lock the bars automatically.
3. Anti-reverse passage: for example in biometric fingerprint full height turnstile, after a registered finger print was read by the system, the bars will rotate towards to entrance by a certain angle, while the push on the bars from opposite direction will be regarded as reversing passages, then the system will automatically alarm and lock the bars.
4, Passage indication: full height turnstile with LED indicatorin the conspicuous position to inform pedestrians of the passage statusand direction.
Model No.
LD-Q808
Size
2280*1450*2200mm
Material
304 stainless steel, 38mm diameter tube, 1.5mm thickness
Unlocking time
1s
Traffic speed
≤30 persons/min
Channel width
standard 600mm, 500-800 customzied
Input voltage
220V, 50HZ
Drive voltage
24V
Ambient temperature
: -20~+70
Power
30W
Opening signal input
dry contact
Opening method
push button, face recognition, RFID card reader, finger print
