Item NO.:
LD-S709Payment:
L/C, T/TProduct Origin:
ChinaGoods stock:
100Shipping Port:
ShekouLead Time:

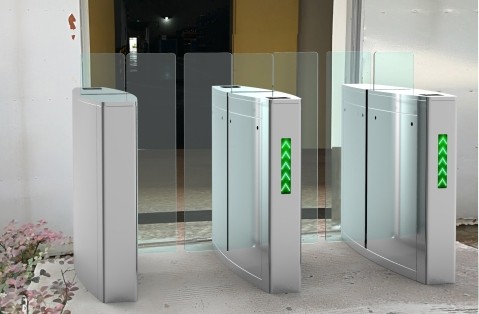

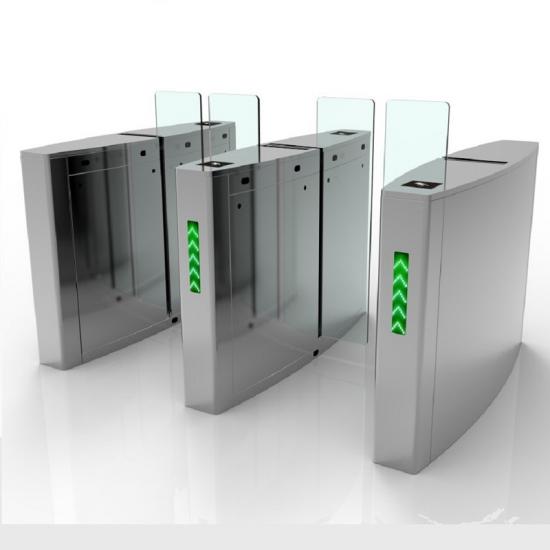

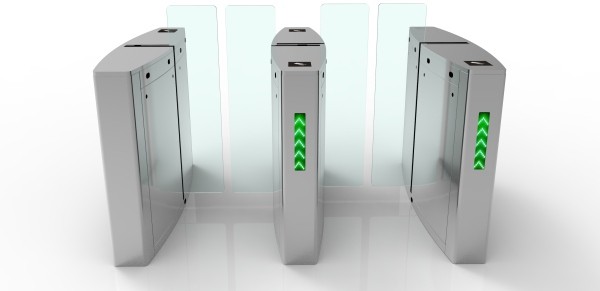

7-10 working daysLD-S709 Retractable Glass Swing Turnstile Gate
Product description:
The sliding gate is an upgraded product of the wing gate. The intelligent sliding gate has a large wing span and is not easy to pass.
Product specifications:
| Moduel No. | LD-S709 |
| Brand | CN Safety Gate Tech |

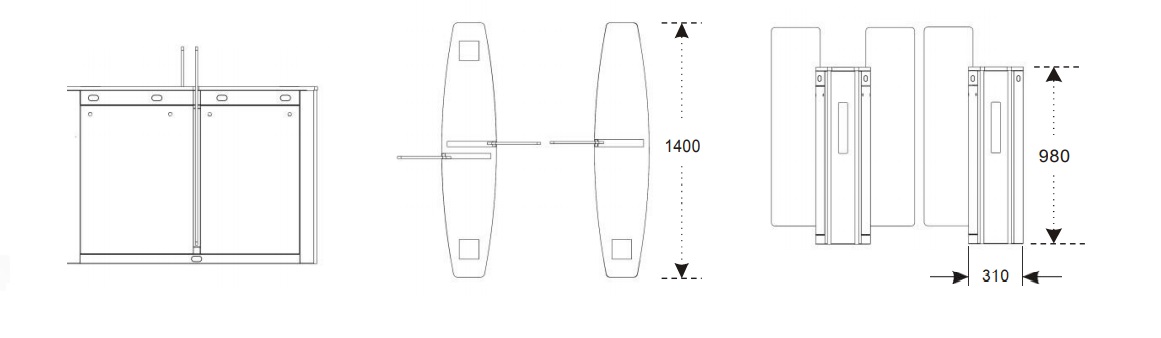

| Size | 1400*310*980mm |
| Material | thickness 1.5mm, 304 stainless steel |
| Channel width | 550mm |
| Passing speed | 35p/m |
| Unlocking time | 0.2 seconds |
| Input voltage | 100-240V |
| Drive voltage | 24V |
| Opening signal input | dry contact |
Product features:
1. The structure of the movement has been changed. The translational gates move in parallel (track sliding), with low noise and small jumps.
2. Increase the electronic anti-pinch point, both the sky clamp and the ground clamp, the safety performance is improved.
3. The main board is upgraded, the control part changes the structure of the single-chip microcomputer, and the 32-bit microprocessor is used to increase the memory capacity and improve the machine's ability to deal with changes.
4. The electronic beam adopts anti-glare and high temperature electronic beam to improve the sensitivity of the gate.
5. Voice prompts by real people, LCD screen operation, change the past button operation, more intuitive and more convenient.
6. The software setting of the sliding brake adds fire-fighting mode, continuous swiping mode and memory mode.
Product applications:
1. Management of import and export channels for stations, wharfs and tourist attractions.
2. Management of ticket inspection channels for conventions, exhibitions, swimming pools, etc.
3. Import and export attendance, access control and consumption management of enterprises and institutions.
