Flap barrier wing turnstile: It can control pedestrians to enter and exit restricted areas or zones.
Item NO.:
LD-Y604Payment:
T/T, L/CProduct Origin:
Made in ChinaColor:
SilverGoods stock:
20Product weight:
70 kgsShipping Port:
ShenzhenLead Time:

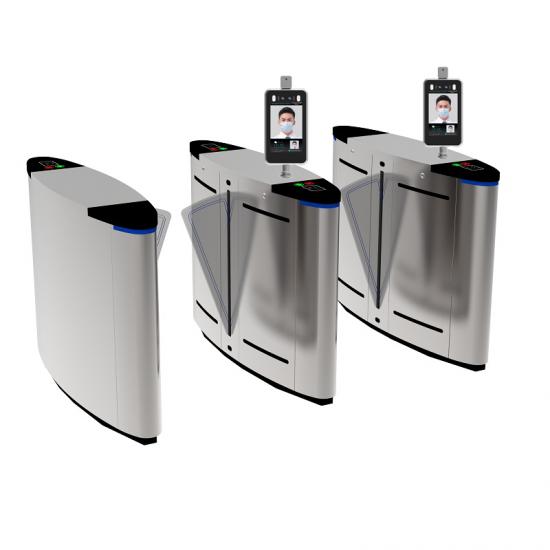

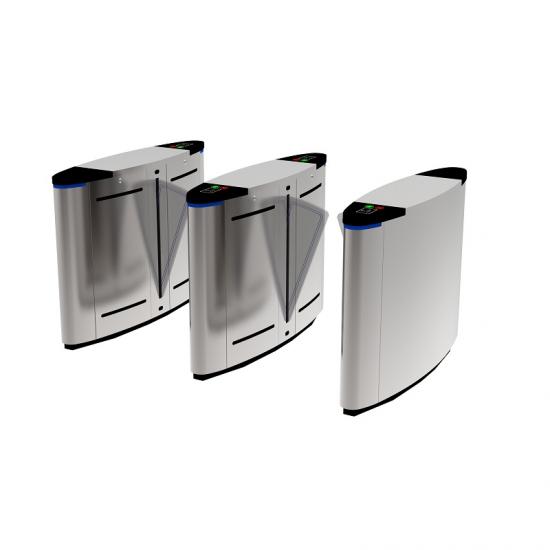

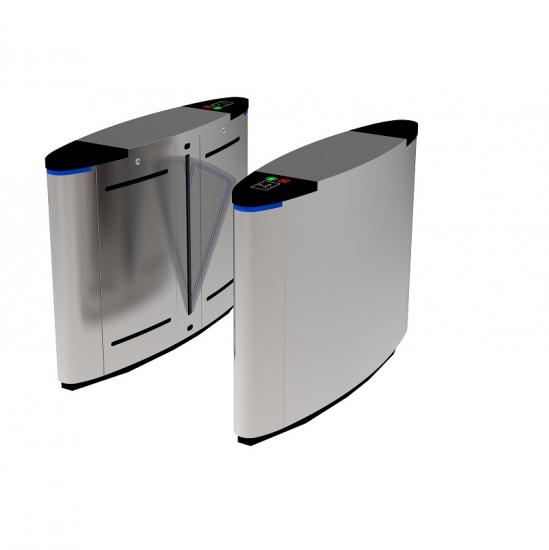

7-10 working daysLD-Y604 Electronic Optical Glass Wing Flap Barrier Turnstile
Product Descriptions:
Flap Barrier turnstile aims to provide complete security and access control in public walkways. It can solve security problems and provide security and protection for the employees of the organization and the company's assets. At the same time, it provides high-level access to the open public and visitors. This is a huge benefit for people whose total income depends on the constant flow of pedestrians, while at the same time protecting and ensuring the safety of their property and personnel.

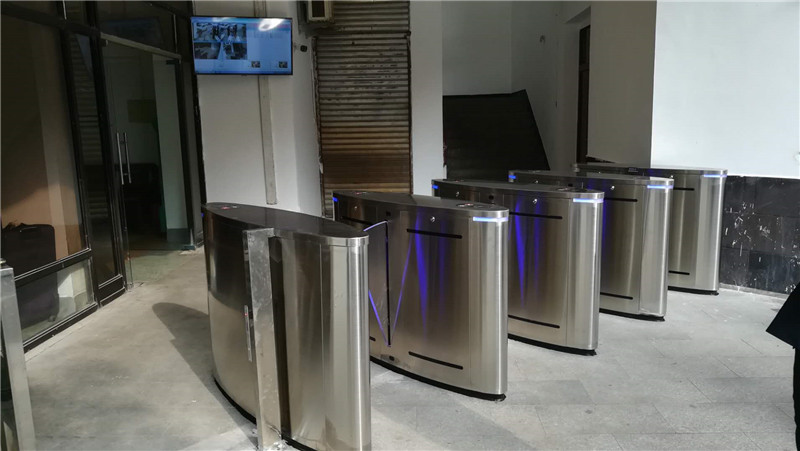

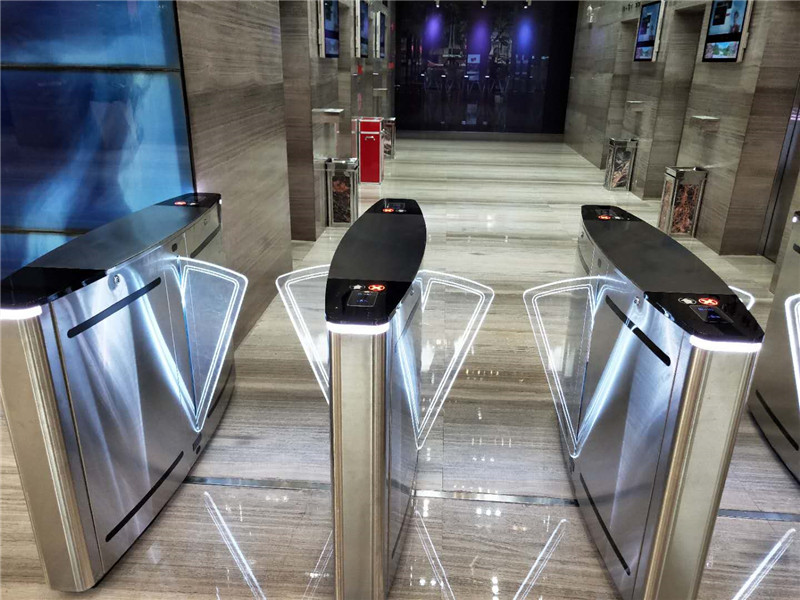

Flap barrier turnstile gates are automatic gates and can also be found in stations, office entrances, airports and many other places. When people connect turnstile gates with IC or ID access card ,they automatically open their two wings and close after few seconds.
Main Parameters:
|
Moduel No. |
LD-Y604 |
|
Size |
1410x300x990mm |
|
Material |
stainless steel 304 + tempered glass + acrylic black powder coating part cold rolled steel plate |
|
Thickness of the cabinet |
1.2, and the top cover is 2.0mm |
|
Unlocking time |
0.2s |
|
Traffic speed |
≤35 persons/min |
|
Channel width |
≤550mm |
|
Voltage input |
220V, 50HZ |
|
Motor voltage |
24V |
|
Ambient temperature |
-25~+70 |
|
Infrared |
5 pairs |
|
Power |
35W |
|
Opening signal input |
dry contact |
The electrical connections that it has integrated to connect the equipment that activate the opening are easy to connect, so multiple devices can be integrated such as:
*Face recognition terminals (with or without temperature detector and mask)
*Proximity card terminals
*Fingerprint, others
The right product for controlling access to buildings, refineries, tourist attractions, gyms, leisure parks and others.
In addition, you can register the presence control of workers in factories, companies, public institutions, etc.
