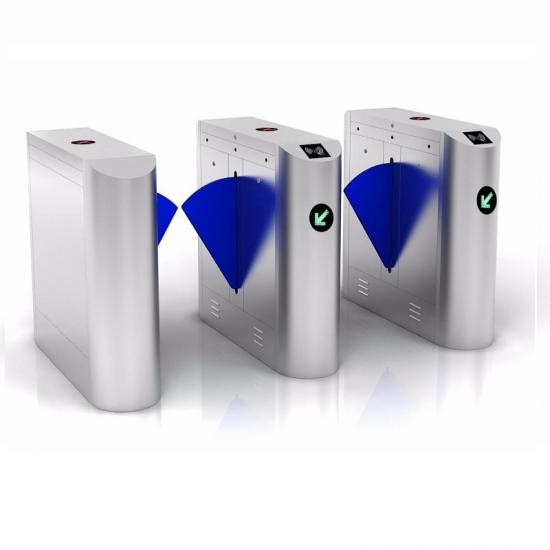

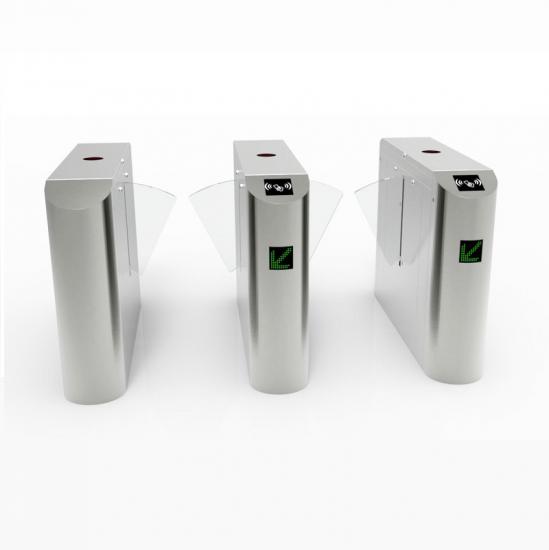

Electronic optical flap barrier gate or retractable wing gate are fast opening pedestrian turnstile gate, with 2 glass panels in the middle of cabinet to form a physical barrier. When the panels retract inside the cabinet, the channel is allowed to pass. Electronic optical Flap barrier gate is efficient security access control solution.
Item NO.:
LD-Y605Product Origin:
ChinaGoods stock:
100Shipping Port:
shenzhenLead Time:

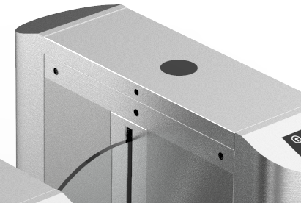

5-10 workdaysLD-Y605, the chassis material is made of high-grade 304 stainless steel, which is waterproof, rust-proof and anti-corrosion. Fully automatic cutting and polish, after cutting the plate, grooving process, making all the edges and corners more rounded and more user-friendly.
Specifications:
Size
1200* 980*300mm
Material
stainless steel 304 + acrylic panel
Channel width
550
Thickness of the cabinet
1.2-1.5mm
Passing speed
35-40 persons / minute
Communication interface
RS232
Opening time
0.2s
Working temperature
-30 ° ° C ~ 70 ° ° C
Drive motor
Brushless DC 24V
Infrared
3 pairs
Life
9 million times
Power
30-40w
Working voltage
AC100-240V
Key Features:

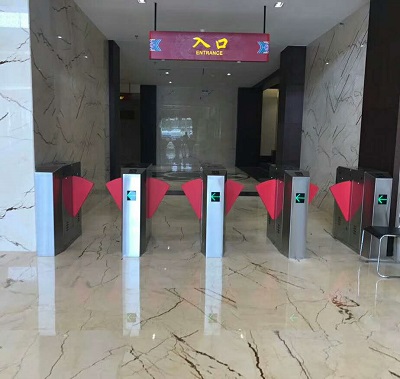

| Anti-rust & collision stainless steel flap barrier gate, widely used in igh-traffic office buildings, subway stations, university campuses |
 |
 |

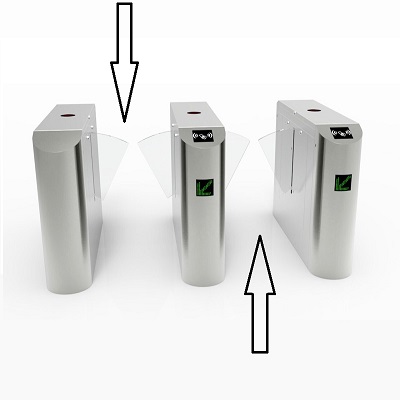

Single direction or bi-direction, Free passage or always locked, different operation modes |
| LED indicator display passage direction and status, green means passage allowed, red means passage denied |
 |
 |
One piece flap or extended flap be optional, passage width can be 550mm~900mm, wide enough for pedestrian passage even arrying luggage or delivering goods |
|

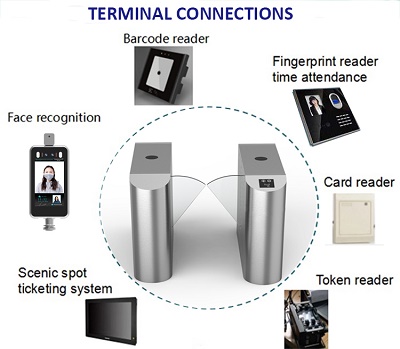

Highly integration with Biometric recognition- face recognition, finger print, palm recognition and other RFID card access and QR code/ Bar code. |
 |
 |
3-5 pairs of infrared sensor to prevent tailgating, the quantity can be extended |
Leave A MessageTripod Turnstile is also called waist height turnstile or three-arm turnstile. It is one of the most widely used security pedestrian access control products.
Full height turnstile is the safest gate to control access , it is outstanding in anti-collecting, anti-tailing and anti-drilling .
The function of the flap barrier gate is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety and convenience.
Flap barrier gate is also called retractable speed gate, which is a kind of equipment of the access control system. It is often used in places with large flow of people at the entrance and exit.
Wing gate, which is also called flap barrier gate, is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety, and convenience.
The Full Height Turnstiles are the most secure, durable and convenient way for entry and exit traffic control. With all kinds of access control system, it can realize security and access control function by forbidden tailgating and unauthorised entry. It can be indoor or outdoor used in singel lane/ double lane / multi lane.
Half height tripod turnstile provide automated access control in facilities entrance of low pedestrian flow. With 3 rotating arms, it only allows 1 person to pass at one time. Full 304 stainless steel structure makes it capable for outdoor applications, bi-direction , full integrated with all kinds of access control systems.
This fully automatic rising bollard is made of stainless steel into a sturdy housing, which effectively prevents the entry of vehicles in places with many pedestrians.When retracted, there is no obstruction or tripping hazards.
