Item NO.:
LD-Y608Payment:
L/C, T/TProduct Origin:
Made in ChinaColor:
SilverGoods stock:
200Shipping Port:
ShenzhenLead Time:

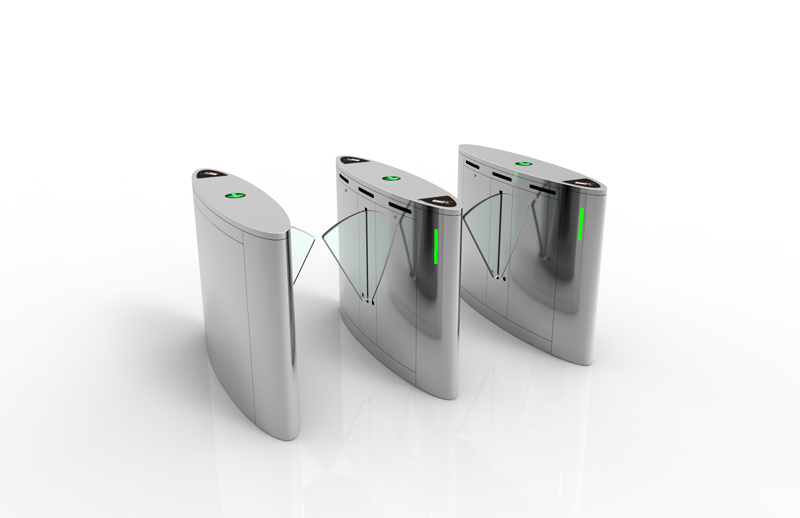

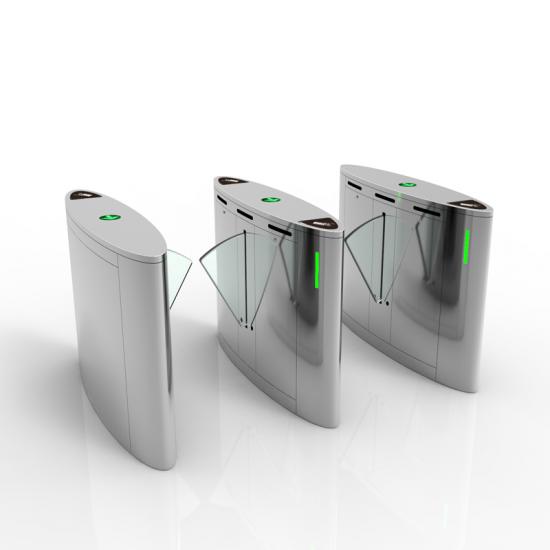

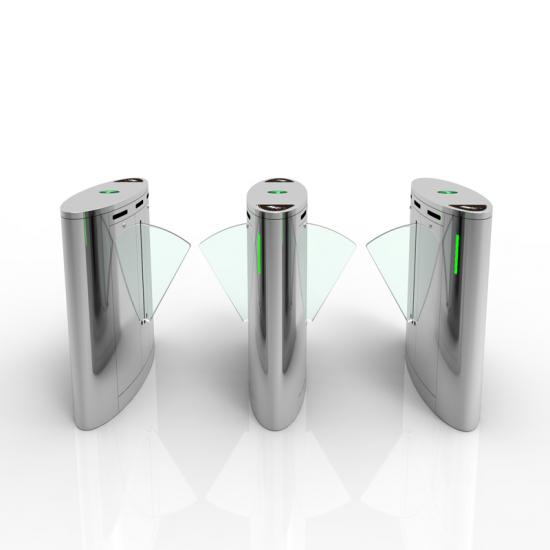

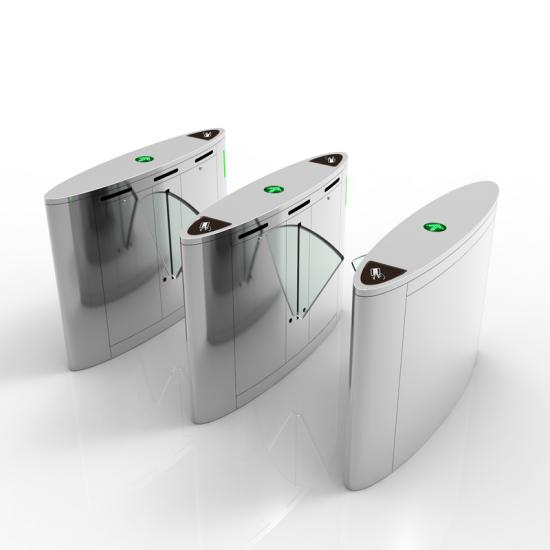

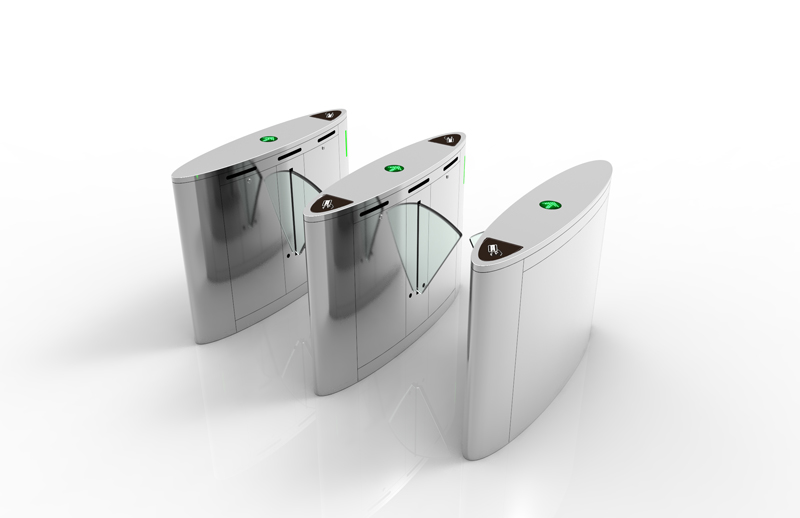

7-10 working daysLD-Y608 Slim Flap Barrier Access Control System Turnstile
Product description:
Flap barrier access control system turnstiles are generally called scissor gates in the rail transit industry. They are also called speed gates in many places abroad. The blocking body (gate wing) is generally a fan-shaped plane, perpendicular to the ground, and realizes blocking and release through elasticity. The material of the blocking body is usually plexiglass, tempered glass, and some also use metal plates to wrap special flexible materials (to reduce damage to pedestrians).
Technical Parameters:
Moduel No.
LD-Y608
Size
1400 * 280 * 980mm
Material
stainless steel 304 + tempered glass + acrylic black powder coating part cold rolled steel plate
Thickness of the cabinet
1.2, and the top cover is 2.0mm
Unlocking time
0.2s
Traffic speed
≤35 persons/min
Channel width
≤550mm
Voltage input
110/220V, 50HZ/60HZ
Motor voltage
24V
Ambient temperature
: -25~+70
Infrared
5 pairs
Power
35W
Opening signal input
dry contact
Advantages:
1. The traffic speed is the fastest among all turnstiles;
2. The channel width is between the tripod turnstile gate and the swing gate, generally between 550mm-900mm;
3. The appearance and shape are more beautiful, and the material of the gate wing could be of more kinds;
4. In an emergency, the gate wing will be quickly retracted into the box, which can easily form a barrier-free passage, improve the speed of passage, and facilitate the evacuation of pedestrians.
Product applications:
It is suitable for indoor occasions with a large number of people, such as ticket gates of subways and railway stations. It is also suitable for occasions that require high aesthetics.
