Swing Gate Turnstile offers security, functional, sleekness, and elegancy that enhances any entrance of building.
Item NO.:
LD-B503Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:
7-10 DaysPedestrian Access Control Swing Gate Turnstile

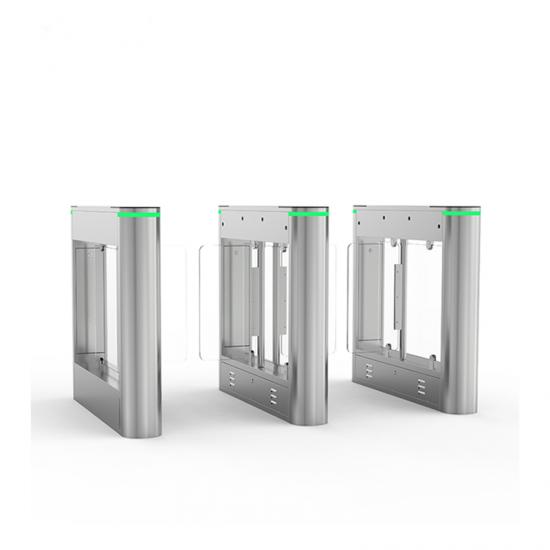

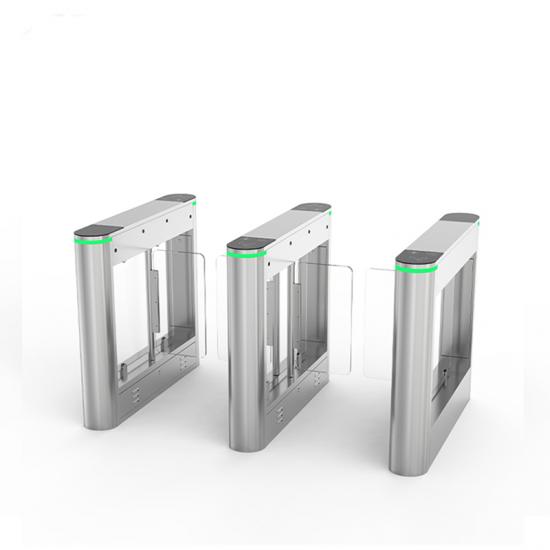

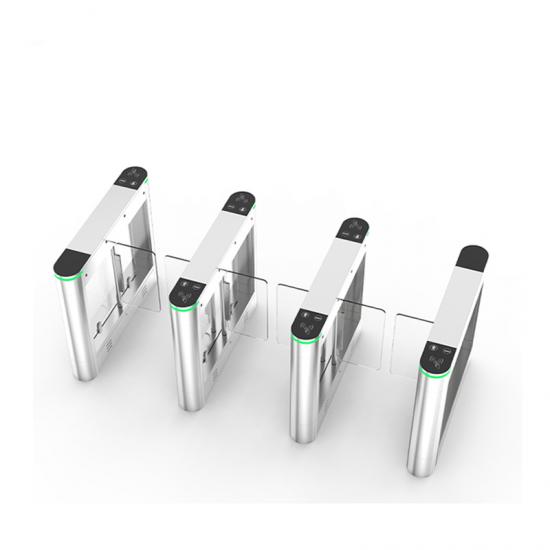

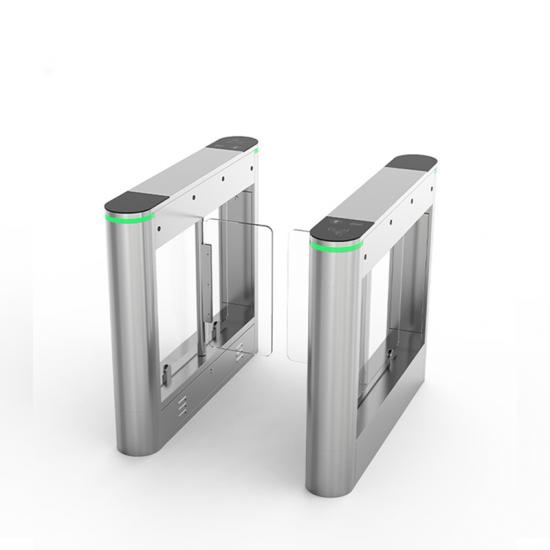

LD-B503 swing gate turnstile is the ideal solution for rapid separation and control of pedestrian, providing effective entry access control management. The swing gate features contactless optical infrared sensor to accurately detect pedestrian and objects.
The barrier elements are available with acrylic glass or tempered glass materials. Swing Turnstile consists of pedestrian access control solutions from robust turnstiles structure to elegant wing baffles that are suitable for the most varies of access control applications, such as the office building, hotel, airport and shopping mall. All swing barrier gates ensured maximum safety due to its sensitive impact detection system.
Parameters:
|
Model No. |
LD-B503 |
|
Size |
1200*185*1020 mm (L*W*H) |
|
Material |
304 stainless steels, Acrylic |
|
Channel width |
600mm (Max 1400 mm) |
|
Thickness of the outer box |
1.2 mm |
|
Input voltage |
AC 100 ~ 240V, 50/60Hz |
|
Traffic direction |
Single or bi-directional |
|
Passing speed |
35~40 people/minute |
|
Life |
9 million times; |
Features:
* Passage clearance from 600mm up to 900mm
* Under 24V control power, electrical and mechanical safety for all components. To avoid injury, all corners and sides are rounded.
* Motion start and stop are controlled smoothly by Microprocessor.
* Mechanical anti-clamping functions for safety.
* The barrier can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the machine and the pedestrian effectively.
* Various top cover options with LED indicators for passage direction.
* Integrate with Access Control System, Attendance System, Visitor System etc.
* Biometric Integration supported in swing gates which allow using facial recognition or fingerprint modules for added personnel identification methods.
Leave A MessageThe swing turnstile is an intelligent management device designed to restrict or control access to buildings or safe areas.
LD-B509 swing barrier turnstile is an intelligent channel, which could integrate multi opening way, such as IC card, ID card, QR code, fingerprint, face recognition devices.
CN Safety Gate Tech is a professional manufacturer of intelligent swing gates for supermarket entrances, safe and stable, customized solutions according to needs, logos and welcome messages can be customized.
Automated swing turnstile gate for handicap, it is the swing turnstile with wide passage at least 800-1000mm , which allows wheelchair to pass in bi-direction. This kind of turnstiles are always required together with standard passage width 600mm turnstile and used in public commercial buildings. Also delivery man or pedestrian with large packages can use this channel.
Drop arm barrier turnstile is made of stainless steel #304, brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use.
Swing barrier gate has the most widely applications with its wider channel width.
The use of swing gates can make people flow through the passage in an orderly manner.
The swing gate turnstile organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies, and adopts a standard electrical interface to the outside, it can facilitate system integration of reading and writing devices such as magnetic cards, barcode cards, ID cards and IC cards.
