Swing gate turnstile, the contactless access control barrier, ergonomic design and finishes to suit any architectural environment.
Item NO.:
LD-B504Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:

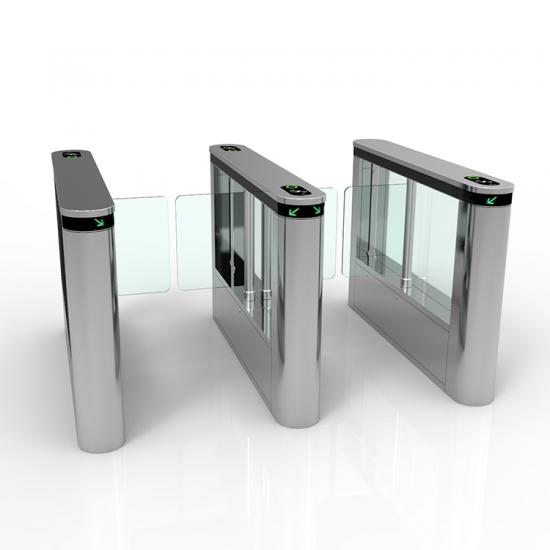

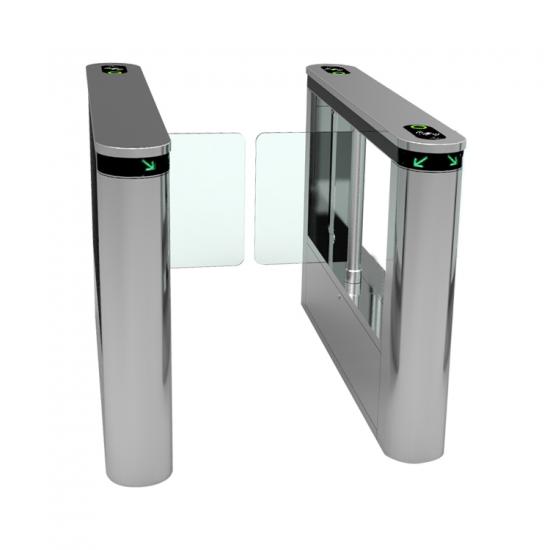

7-10 DaysSwing Gate pedestrian Turnstile
The swing turnstile provide a fast, dynamic and secure way to manage the access control of pedestrian flow. The swing barrier gates are made with high quality transparent tempered glass or acrylic with a slim design and are available different range of optional baffles heights and lane widths. They are easy to fit in any installation environment and are suitable for any building where there is a need to control and manage the flow of pedestrians with the added benefit of enhancing the image of your business.
The swing gates are designed for used in the locations such as airports, corporate reception areas, hotels, scenic spots, museums, exhibition centers, education facilities, etc.
Parameters:
|
Model No. |
LD-B504 |
|
Size |
1400*190*980 mm (L*W*H) |
|
Material |
304 stainless steels, tempered Glasses, Acrylic |
|
Channel width |
600mm (Max 1000 mm) |
|
Thickness of the cabinet |
1.5 mm |
|
Input voltage |
AC 100 ~ 240V, 50/60Hz |
|
Traffic direction |
Single or bi-directional |
|
Passing speed |
35 people/minute |
|
Life Time |
9 million times; |
Features:
* DDA compatibility with wheelchair access, wide lane configuration for disabled and trolley access.
* 24V control power brushless drive motor to ensure the Low-voltage operation environment.
* Speed of passage up to 35 people per minute while preserving maximum users’ safety.
* The variety of lane lengths and panel heights also contributes to increasing security.
* New technology for fraudulent passage detection including tailgating, wrong way direction, crawling and leave lane time out.
* Top cover with LED indicators for passage direction and working status.
* Integrate with Face Recognition System, Attendance System, Fingerprint System etc.
* Designed to be used with third-party access control systems, or can supply an access control system if don't have.
Leave A MessageThe swing turnstile is an intelligent management device designed to restrict or control access to buildings or safe areas.
LD-B509 swing barrier turnstile is an intelligent channel, which could integrate multi opening way, such as IC card, ID card, QR code, fingerprint, face recognition devices.
CN Safety Gate Tech is a professional manufacturer of intelligent swing gates for supermarket entrances, safe and stable, customized solutions according to needs, logos and welcome messages can be customized.
Automated swing turnstile gate for handicap, it is the swing turnstile with wide passage at least 800-1000mm , which allows wheelchair to pass in bi-direction. This kind of turnstiles are always required together with standard passage width 600mm turnstile and used in public commercial buildings. Also delivery man or pedestrian with large packages can use this channel.
Drop arm barrier turnstile is made of stainless steel #304, brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use.
Swing barrier gate has the most widely applications with its wider channel width.
The use of swing gates can make people flow through the passage in an orderly manner.
The swing gate turnstile organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies, and adopts a standard electrical interface to the outside, it can facilitate system integration of reading and writing devices such as magnetic cards, barcode cards, ID cards and IC cards.
