The swing barrier gate is the inexpensive but effective way to provide the directional control of people entering. This double gate set to swing in a single direction.
Item NO.:
LD-B507Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:
7-10 Days
LD-B507

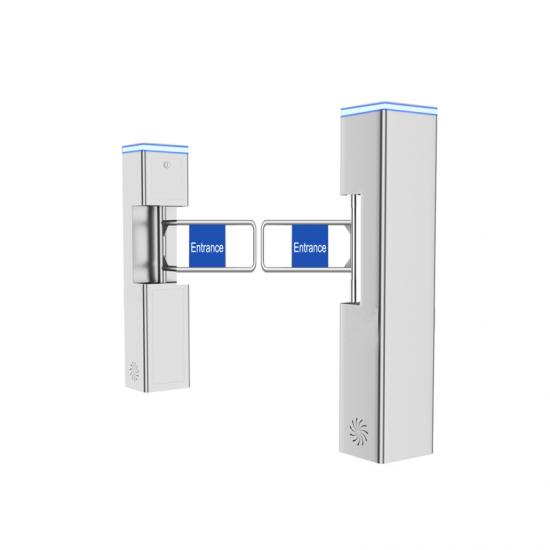

Supermarket Entry Swing Barrier Gate

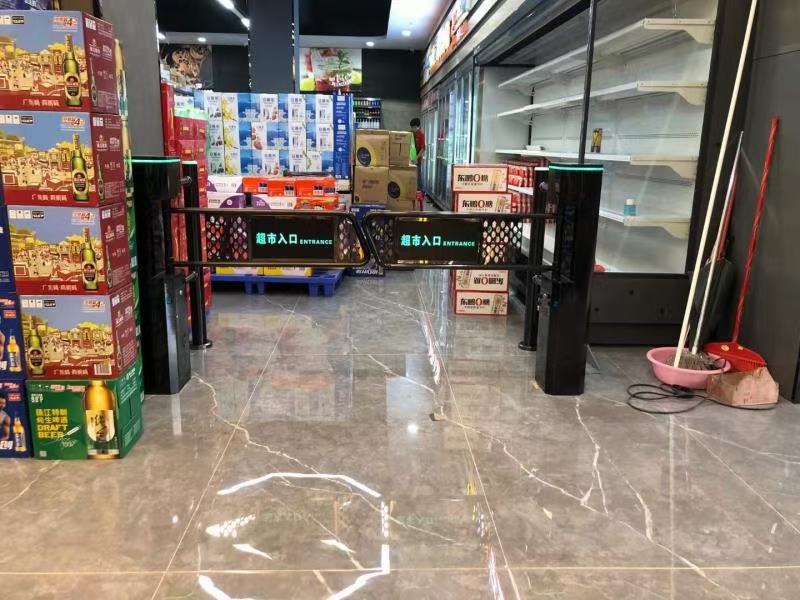

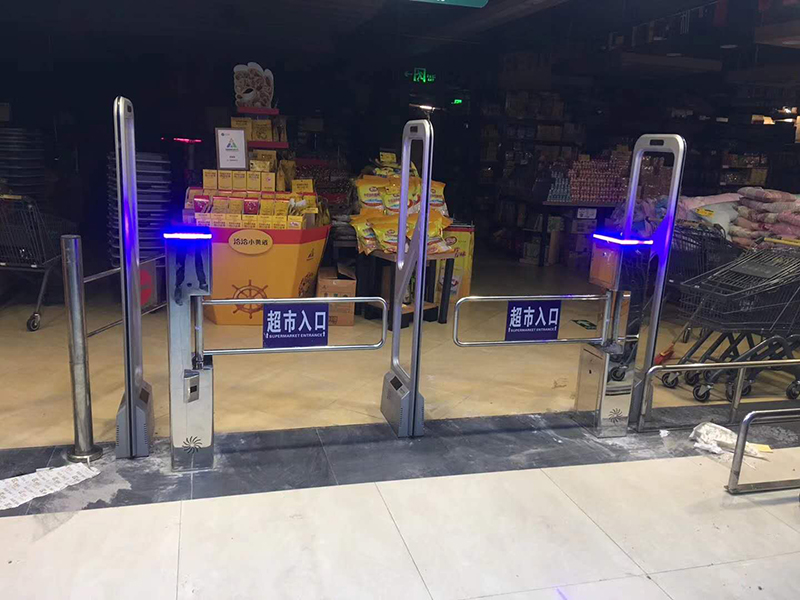

Supermarket Swing Gate is the automatic entry gate with all basic features to perform perfectly in all business areas and retail applications such as supermarket, outlet shops, gyms and so on. The Gate could guide entering clients toward the merchandise areas and exiting clients toward check stands. It could help to enhance the security and reduce loss.
The swing barrier gate is the uncomplicated straight forward device that allows clients to pass through quickly when the inbuilt infrared sensors detect. It is made of brushed 304 stainless steel and designed with compact shell, which is extremely strong and hard-wearing.
Parameters:
|
Model No. |
LD-B507 |
|
Size |
200*200*980 mm (L*W*H) |
|
Material |
304 stainless steels, Acrylic |
|
Channel width |
600mm (Max 1400 mm) |
|
Thickness of the outer box |
1.2 mm / 1.5mm |
|
Input voltage |
AC 100 ~ 240V, 50/60Hz |
|
Traffic direction |
Single or bi-direction |
|
Passing speed |
35~40 people/minute |
|
Life |
9 million times; |
Features:
* It is drive by automatic motorized mechanism and have good function against collision when someone tries to force the gate.
* This allows for quick and easy installation because all the settings and testing finished before shipment.
* Clutch mechanism prevents the damage to the motor.
* The top LED light could be adjusted to indicate three colors, green, blue and red color.
* The gate can be manually opened in case of emergency.
* The movement is drive by DC 24V brushless motor and controlled by intelligent microprocessor system.
* The gate could be compatible with intelligent recognition system, such as RFID card reader, face recognition, QR code reader.
* Professional design team could offer the customization proposal according to different requirements.
Leave A MessageThe swing turnstile is an intelligent management device designed to restrict or control access to buildings or safe areas.
LD-B509 swing barrier turnstile is an intelligent channel, which could integrate multi opening way, such as IC card, ID card, QR code, fingerprint, face recognition devices.
CN Safety Gate Tech is a professional manufacturer of intelligent swing gates for supermarket entrances, safe and stable, customized solutions according to needs, logos and welcome messages can be customized.
Automated swing turnstile gate for handicap, it is the swing turnstile with wide passage at least 800-1000mm , which allows wheelchair to pass in bi-direction. This kind of turnstiles are always required together with standard passage width 600mm turnstile and used in public commercial buildings. Also delivery man or pedestrian with large packages can use this channel.
Drop arm barrier turnstile is made of stainless steel #304, brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use.
Swing barrier gate has the most widely applications with its wider channel width.
The use of swing gates can make people flow through the passage in an orderly manner.
The swing gate turnstile organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies, and adopts a standard electrical interface to the outside, it can facilitate system integration of reading and writing devices such as magnetic cards, barcode cards, ID cards and IC cards.
