Item NO.:
LD-B508Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:
7-10 Days
LD-B508

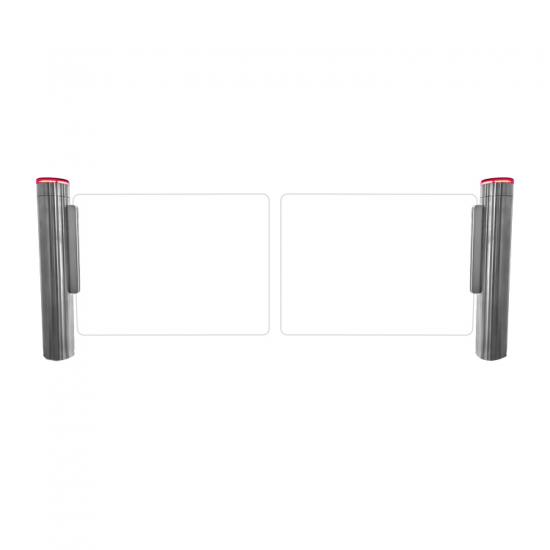

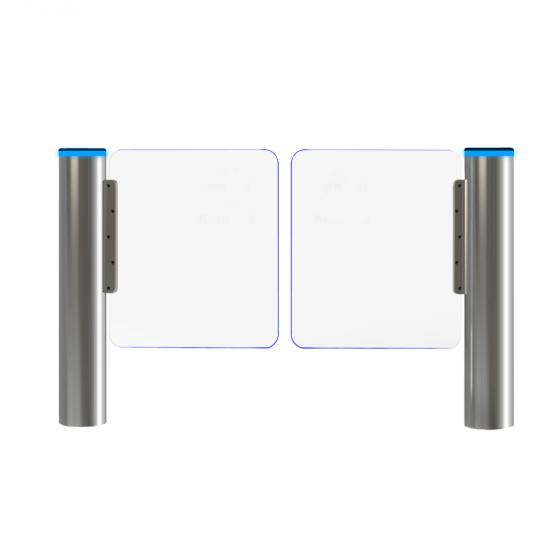

Luxury Automatic Swing Turnstile Gate
LD-B508 Luxury Swing Turnstile is the perfect option of access control entrance gate considering from both security and elegance. It is adaptable to meet most of clients’ requirements, the channel width could be customized up to 1000mm, which could be compatible with the standard size of international wheelchair. It is also an alternative way to provide passage for VIP customers and people with disabilities.
The baffle of automatic swing turnstile is made of acrylic or tempered glasses(optional). Customized labels or company logo can be printed on the swing panels as requested.
Parameters:
|
Model No. |
LD-B508 |
|
Size |
168*168*1070 mm (L*W*H) |
|
Material |
304 stainless steels, Acrylic, Tempered glasses |
|
Channel width |
600mm (Max 1000 mm) |
|
Thickness of the outer box |
1.2 mm / 1.5mm |
|
Input voltage |
AC 100 ~ 240V, 50/60Hz |
|
Traffic direction |
Single or bi-direction |
|
Passing speed |
35~40 people/minute |
|
Life |
9 million times; |
Features:

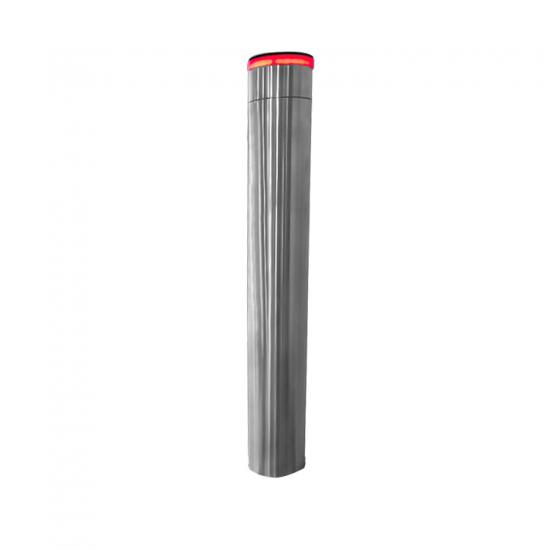

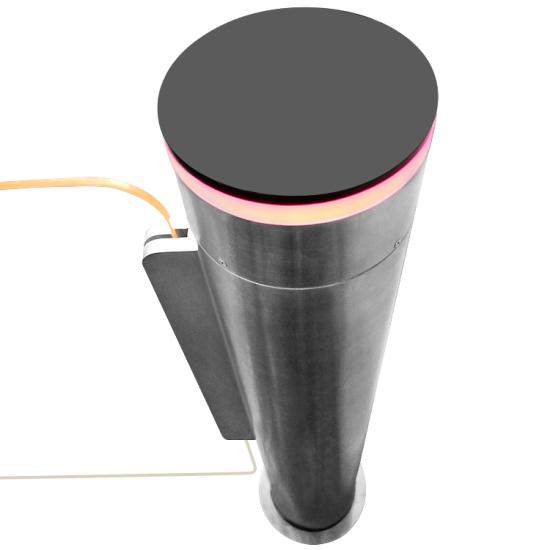

* The swing barrier gate is designed in cylindrical structure and made of 304 brushed stainless steel, which helps to occupy less space and more durable.
* System allows free passage in emergency mode and in case of power failure.
* The traffic direction of passage could be adjusted to unidirectional or bidirectional for different traffic demand.
* LED light and voice prompts will alarm for unauthorized entry.
* With rotating control, arms are positioned at 90 degrees.
* DC 24V brushless Motor, the gate works more steady and less noise.
* Drive motor start and stop control is maintained by industrial-grade ARM microprocessor control system.
* Easy integration with all external access control device through multi-functional mainboard, such as RFID reader, Bar code, button control, face recognition, etc.

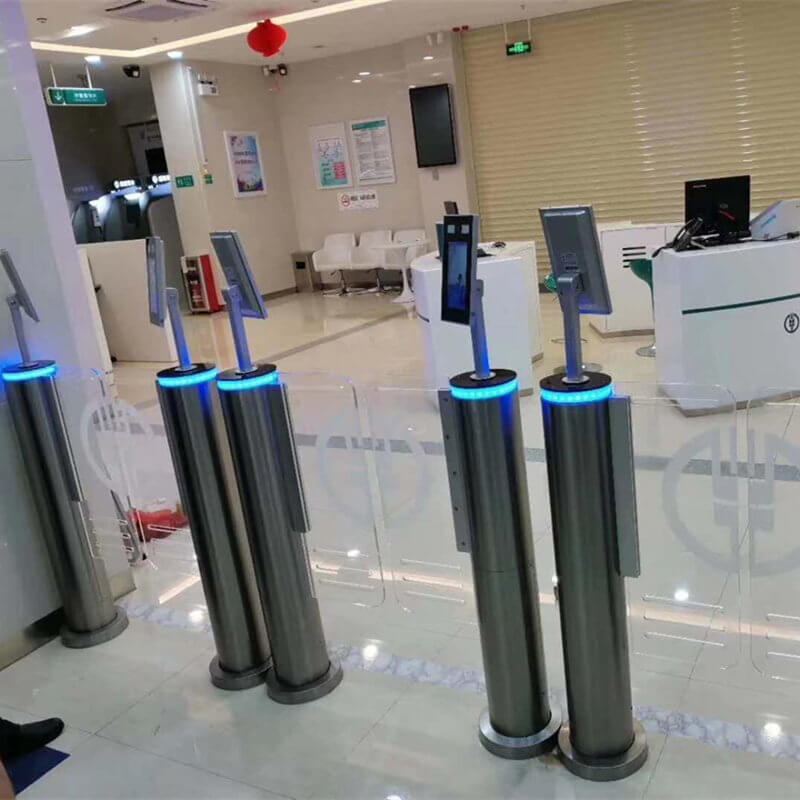

* Application in supermarkets, airports, subway station, office building.
Leave A MessageThe swing turnstile is an intelligent management device designed to restrict or control access to buildings or safe areas.
LD-B509 swing barrier turnstile is an intelligent channel, which could integrate multi opening way, such as IC card, ID card, QR code, fingerprint, face recognition devices.
CN Safety Gate Tech is a professional manufacturer of intelligent swing gates for supermarket entrances, safe and stable, customized solutions according to needs, logos and welcome messages can be customized.

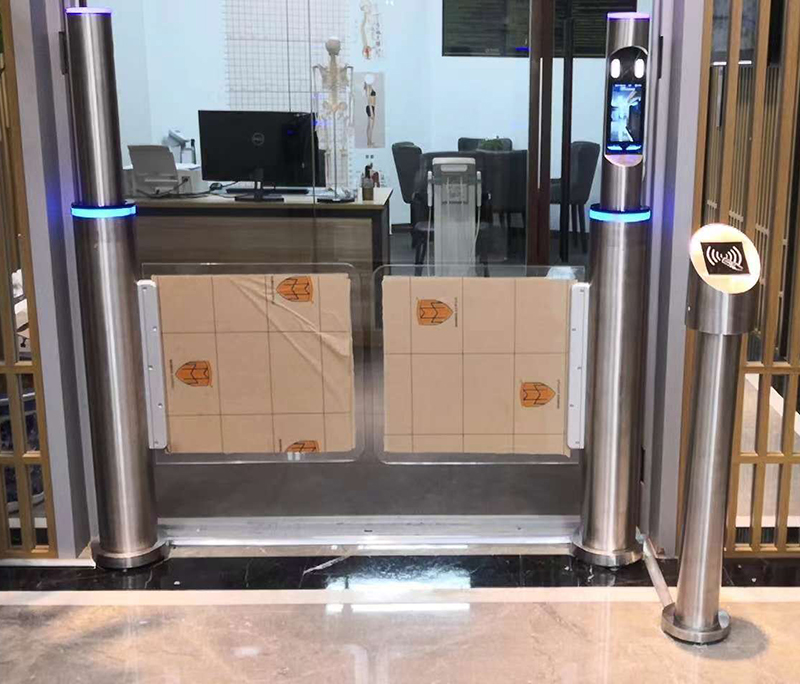

Automated swing turnstile gate for handicap, it is the swing turnstile with wide passage at least 800-1000mm , which allows wheelchair to pass in bi-direction. This kind of turnstiles are always required together with standard passage width 600mm turnstile and used in public commercial buildings. Also delivery man or pedestrian with large packages can use this channel.
Drop arm barrier turnstile is made of stainless steel #304, brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use.
Swing barrier gate has the most widely applications with its wider channel width.
The use of swing gates can make people flow through the passage in an orderly manner.
The swing gate turnstile organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies, and adopts a standard electrical interface to the outside, it can facilitate system integration of reading and writing devices such as magnetic cards, barcode cards, ID cards and IC cards.
