Item NO.:
LD-B511Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
White / BlackGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:

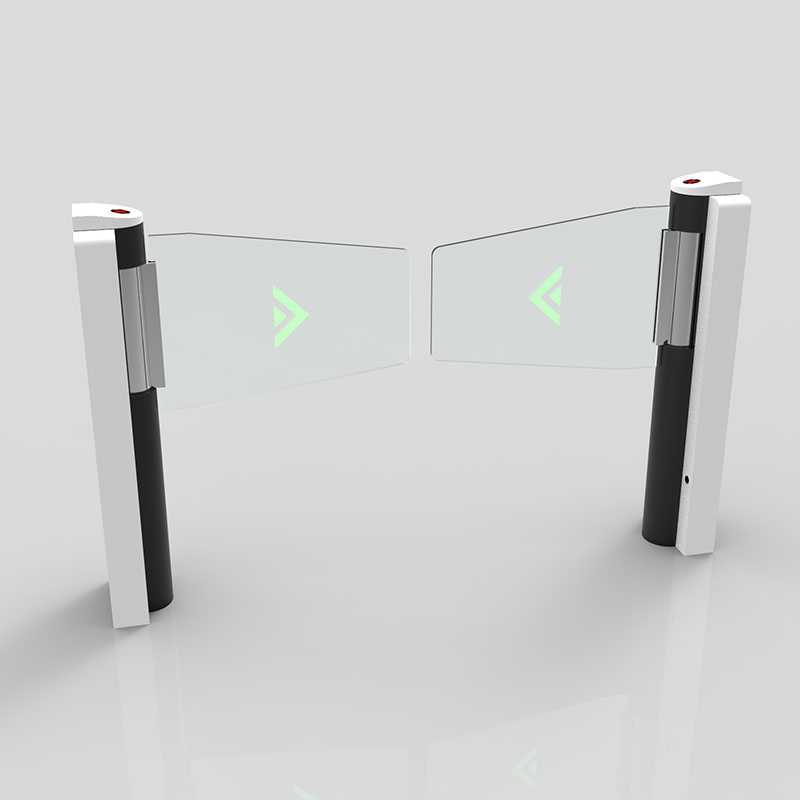

7-10 DaysThe ADA Gate that perfect for providing ADA compliant lane width at any locations entrance where require elegance and security same as important. The automatic swing gate could be control completely hands-free to offer the touchless access solutions.
The swing gate turnstile consists of a steel with anti-corrosion painting column with one glass or acrylic door wing that can be control by a RFID card reader or biometric device or from a nearby desk or button. The optical swing gate is normally installed in office lobbies, hotel, gym room and campuses.
Parameters:
|
Model No. |
LD-B511 |
|
Material |
Steel, Acrylic, Tempered Glasses |
|

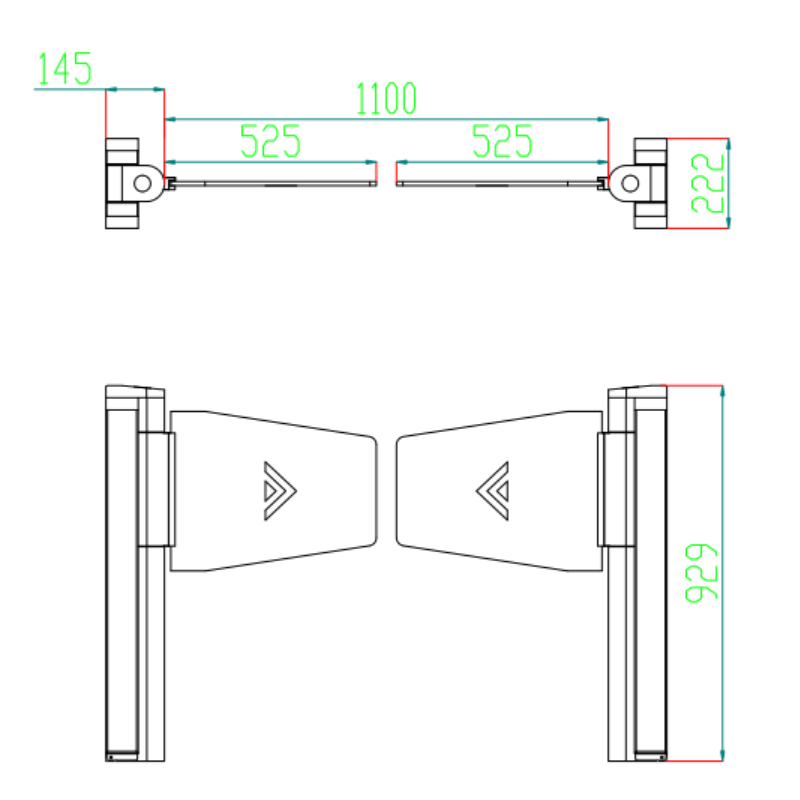

Channel width |
600mm (Max 1100 mm) |
|
Thickness of the outer box |
1.2 mm / 1.5mm |
|
Input voltage |
AC 100 ~ 240V, 50/60Hz |
|
Traffic direction |
Single or bi-directional |
|
Passing speed |
30~35 people/minute |
|
Life |
5 million times; |
Features:
* The devices could be easily mounted it into the foundation with expansion bolts.
* Could be configured to uni-directional or bi-directional access for your options.

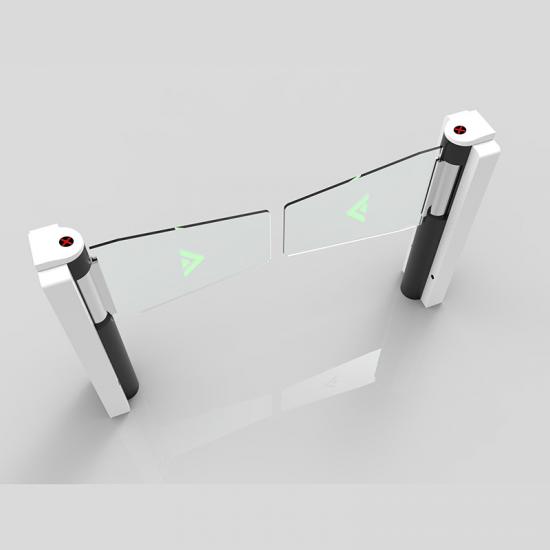

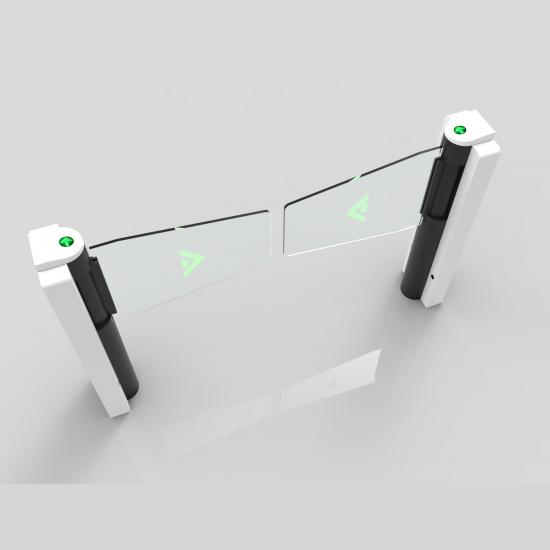

* Visual signals inform the traffic directions being turned on and turned off. Red light informs that the traffic direction is turned off/locked (the device disables a passage of a person); green light informs that the traffic direction is turned on.
* The opening time and closing time of gate could be set to 0-10 seconds.
* The main movement of mechanism is provided by a DC brushless 24V Motor.
* Intelligent drive system would rebound the motion when senses obstructions within its lane.
* Easily integrated with all access control software and hardware via dry contact.
* Ideal passage lane for VIP and physically handicapped people.
Leave A MessageThe swing turnstile is an intelligent management device designed to restrict or control access to buildings or safe areas.
LD-B509 swing barrier turnstile is an intelligent channel, which could integrate multi opening way, such as IC card, ID card, QR code, fingerprint, face recognition devices.
CN Safety Gate Tech is a professional manufacturer of intelligent swing gates for supermarket entrances, safe and stable, customized solutions according to needs, logos and welcome messages can be customized.
Automated swing turnstile gate for handicap, it is the swing turnstile with wide passage at least 800-1000mm , which allows wheelchair to pass in bi-direction. This kind of turnstiles are always required together with standard passage width 600mm turnstile and used in public commercial buildings. Also delivery man or pedestrian with large packages can use this channel.
Drop arm barrier turnstile is made of stainless steel #304, brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use.
Swing barrier gate has the most widely applications with its wider channel width.
The use of swing gates can make people flow through the passage in an orderly manner.
The swing gate turnstile organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies, and adopts a standard electrical interface to the outside, it can facilitate system integration of reading and writing devices such as magnetic cards, barcode cards, ID cards and IC cards.
