The face attendance machine is a new type of storage attendance machine. Need to collect the interim of employee and establish a file, when the employee stands on get off work, it will quickly record attendance status and save records on the account inspection.
Item NO.:
LD-FR2021-5Payment:
T/T, LCProduct Origin:
ChinaGoods stock:
100Shipping Port:
ShekouLead Time:

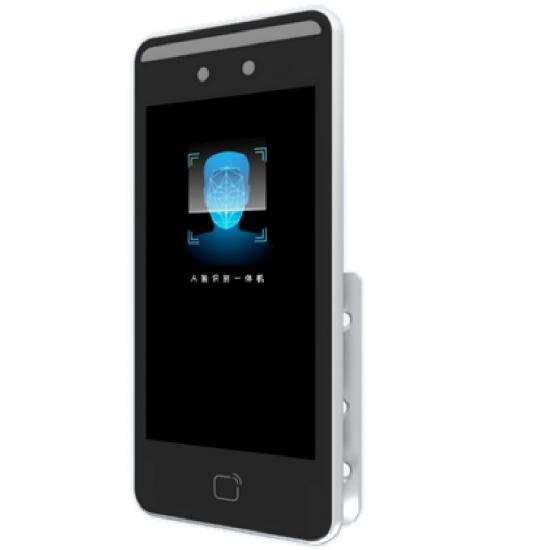

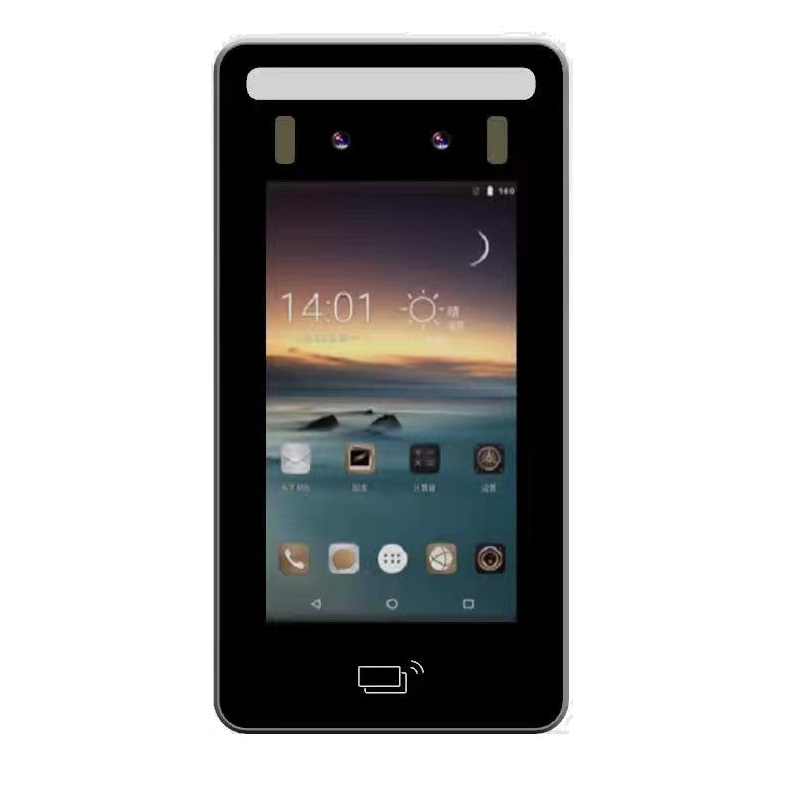

7-10 workdaysLD-FR2021-5 5 inch Face Recognition Terminal with Android System
LD-FR2021-5 is a convenient and secure industrial-grade visible human face recognition terminal, which enables personnel authentication, personnel access management and attendance management, widely applied to office buildings, parks, school stations, businesses, governments and traveling scenes, will help achieve intelligent access control system.
Product Features:
1. Identify rapid precision: 300 milliseconds to complete the face recognition, the recognition accuracy is higher than 99%, support 0.5m to 1.5m identification;
2. Identify the capacity of the library: support the local staff library;
3. Support equipment local storage history record 50,000;
4. The detection function is powerful: real-time detection and tracking people's face, and can perform accurate detection under side faces, semi-obstruction, blur, etc.
5. Infrared living detection: effective defense 3D print, electronic screen, video, picture, mask, head set, etc. non-active attack;
6. Interface Standardization: support the veal agreement in the access control industry, support third-party business system docking;
7. Support external door ban;
8. Support RS-485 serial port, wiegand 26/34 output interface;
9. Support public network, LAN usage deployment mode;
10. Support HTTP mode interface docking;
11. Support screen display content configuration;
12. Support identification distance configuration;
13. Management function is rich: personnel management, visitors management, equipment management, employee attendance, employee batch storage, personnel group management, traffic policy management, traffic record query, data report export, remote upgrading and other functions.
|
Face Recognition Terminal |
|||
|
Moduel |
LD-FR2021-5 Wall Mounted |
||
|
Features |
Main Function |
Face recognition, access control |
|
|
|
Environment |
Indoor |
|
|
Color |
Grey |
||
|
Camera |
Type |
RGB |
IR |
|
Resolution |
2 million pixels |
2 million pixels |
|
|
Aperture |
F2.0±5% |
F2.0±5% |
|
|
Focal length |
4.3mm±5% |
4.3mm±5% |
|
|
Software wide dynamic |
- |
- |
|
|
Horizontal wide angle |
40° |
40° |
|
|
Vertical wide angle |
65° |
65° |
|
|
Infrared fill light |
support |
support |
|
|
White fill light |
support |
support |
|
|
System Parameters |
Android |
Android 9.0 |
|
|
CPU |
4 cores, 1.5GHz |
||
|
Storage |
Memory 2G, storage 8G |
||
|
Screen |
5 inches, full viewing angle, 170°IPS LCD screen, resolution 720*1280 |
||
|
Touch screen |
support |
||
|
Human body sensing module |
Not support |
||
|
Temperature |
Not support |
||
|
Communication |
Ethernet |
100Mbps Ethernet |
|
|
WIFI |
Comply with IEEE802.11b/g/n standard (2.4G) |
||
|
Identify Way |
Face |
support |
|
|
IC card |
support |
||
|
Input/output interface |
RJ45 |
Support 100Mbps |
|
|
USB |
USB 2.0 |
||
|
Power |
adapter |
DC12V-2A |
|
|
Environmental requirements |
Working temperature |
-20℃～60℃ |
|
|
Working humidity |
20% to 90% (under non-condensing water dripping state) |
||
|
Static protection level |
IEC61000-4-2,LEVEL3 |
||
|

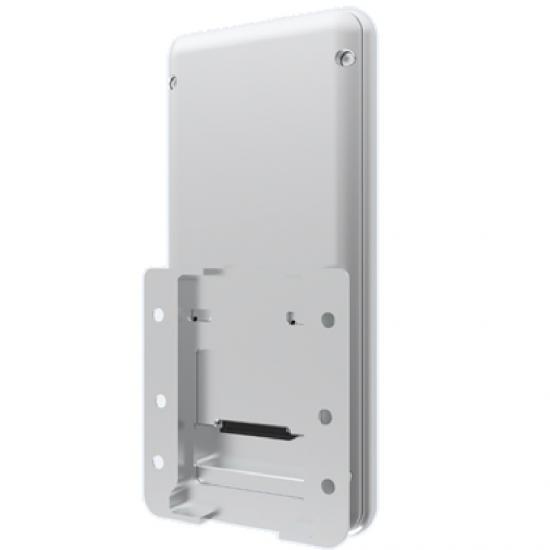

Installation |
Installation |
Wall mounted |
|
|
External interfacehard ware wiring instructions |
||
|
Type |
Port |
Illustrate |
|
OTG |
USB 2.0 |
Equipment upgrade and debugging and use of external equipment (ADB) |
|
Network port |
RJ45 |
Support 100Mbps |
|
Relay |
NC COM NO |
Normally closed terminal/common terminal/normally open terminal of relay. Generally, the door lock power supply is positively connected to the COM terminal, and then according to the type of door lock, the relay power supply is negatively connected to the NO port or the NC port. Note: the maximum relay contact load is 2A |
|
Door sensor |
MSG GND |
GPIO1 detects the switch state of the door, input |
|
IO port |
IO GND |
GPIO detection control signal, input |
|
Upgrade |
Upgrade GND |
Support motherboard upgrade |
|
Serial port |
D-(RS485CB) D+(RS485CA) |
Support serial port RS485 |
|
Wiegandfa |
WG_D1 WG_D0 GND |
Wiegand output interface, support 26bit/34bit protocol |
|
Input power |
GND 12V+ |
Power input: 12V DC |

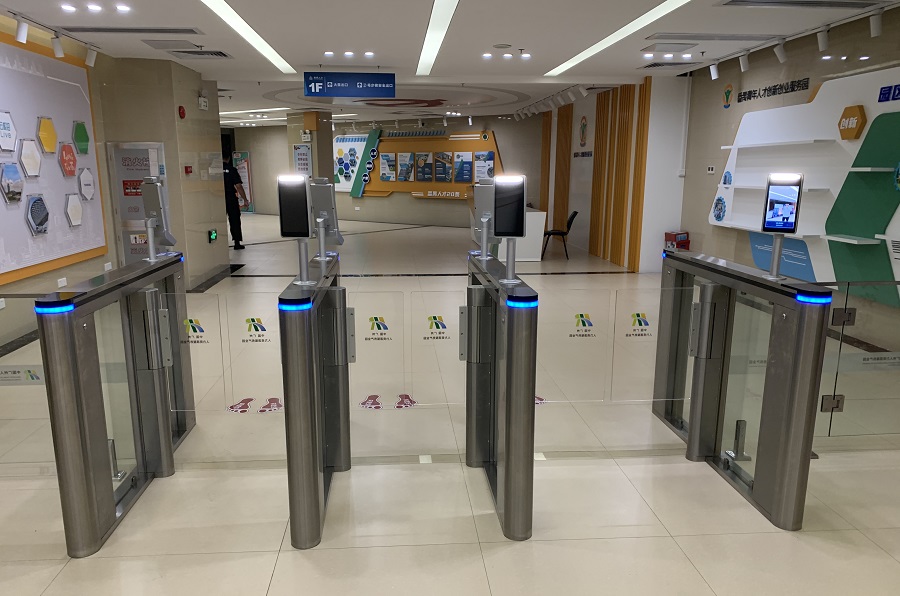

CN Safety Gate Tech is the face recognition terminal supplier, and the access control turnstile gates also could work with the face recognition device, if you have any inquiry, pls contact with us, we could offer you the full solution with factory price.
