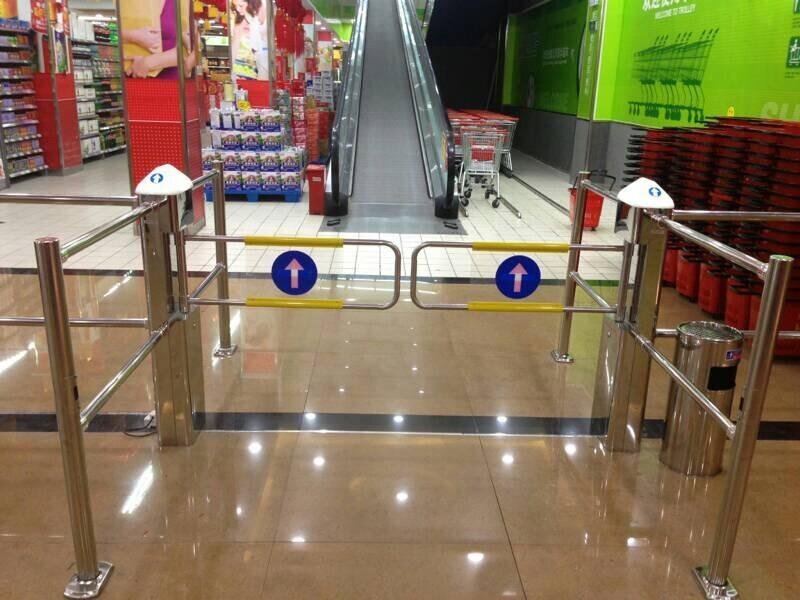

Automatic swing turnstile gate for supermarket, used for entrance and exit of pedestrian and trolley. It can be IR sensor open or face recognition, QR code or card access for membership supermarket or other membership clubs.
Item NO.:
LD-B511Product Origin:
ChinaGoods stock:
100Shipping Port:
ShenzhenLead Time:

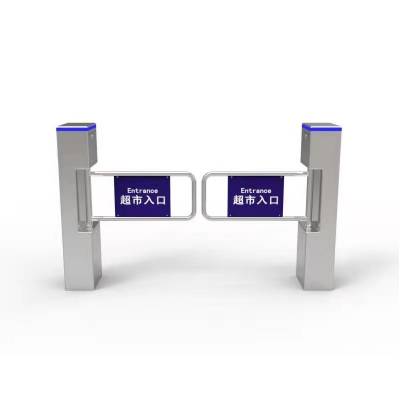

5-10 workdaysLD-B511 Automatic swing turnstile gate for supermarket
LD-B511 is vertical designed swing turnstile gate, the cabinet is made by 201 stainless steel (standard), which can be used for 10 years indoor. It can be divided into pedestrian swing turnstile and ADA swing turnstile based on different passage width.
One gate, Two applications
|

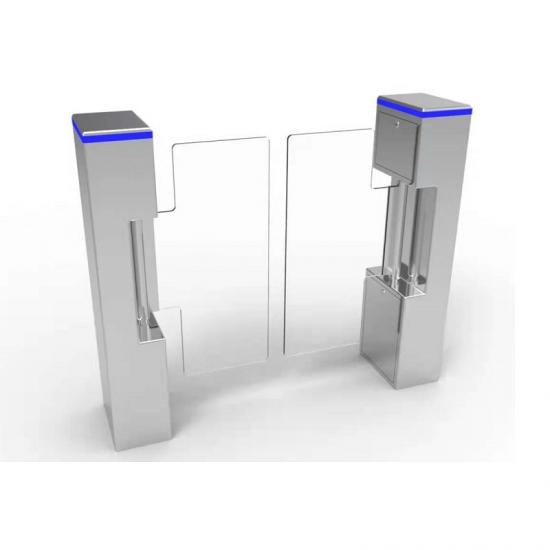

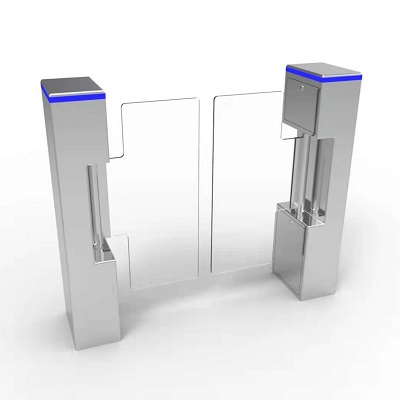

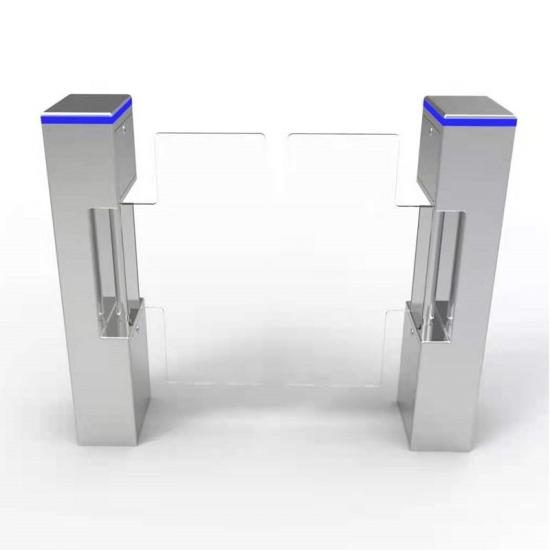

Pedestrian swing turnstile swing barrier: acrylic or fiber glass passage width: 600mm For pedestrain use only |
|
|

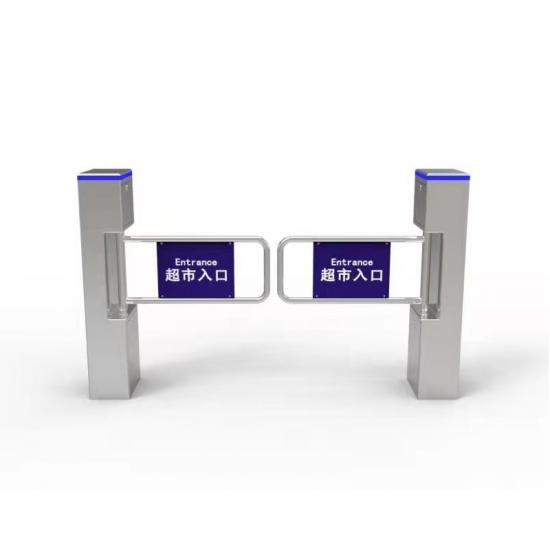

ADA swing barrier gate
swing barrier: stainless steel material,
passage width: 600mm~ 1100mm For trolley, wheelchair, luggage pass
|
Technical Parameter:
Chassis material:
Standard 201 or 304 stainless steel
Working voltage:
AC220 V±10% 50HZ ±10%
Drive motor:
DC24V motor
Light indication:
Top cover light/swipe window light/side light/baffle light
Dimensions:
260*180*980mm ( customized)
Swing arm length:
275-525mm standard
Transmission angle:
180 degrees
Swing direction:
One way or two way
Working environment:
Indoor and outdoor (shade shed) -10℃～70℃ Relative humidity: ≤90%, non-condensing
Opening speed :
0.5-1 second
Passing speed:
40 people/minute (normally open), 25-30 people/minute (normally closed)
Start-up time:
3 seconds after power-on
Reset time:
Automatic reset time after failure 10 seconds
Communication interface:
Standard RS232 interface
Input interface:
Relay switch signal or 12V level signal or 12V pulse signal with pulse width>100ms, drive current>10mA
Trouble-free operation:
More than 10 million times
