Tyre killer is essentially a metal strip that acts as a speed breaker for the person driving on the right side.
Item NO.:
LD-TK01Payment:
T/T, LCProduct Origin:
ChinaGoods stock:
100Shipping Port:
ShekouLead Time:
7-10 workdaysLD-TK01 Road Safety Barrier Tyre Killer for Vehicle Heavy Duty

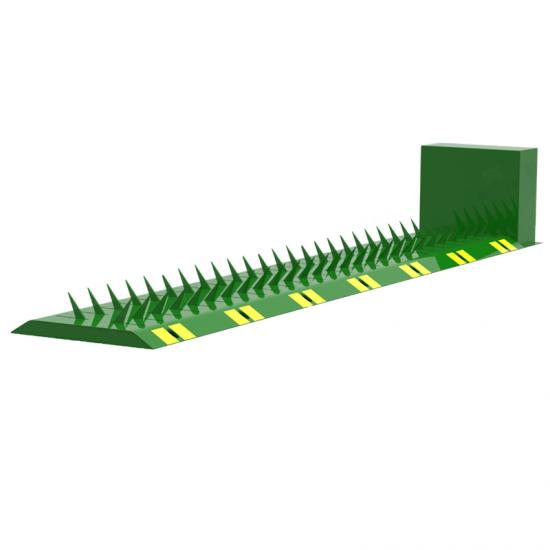

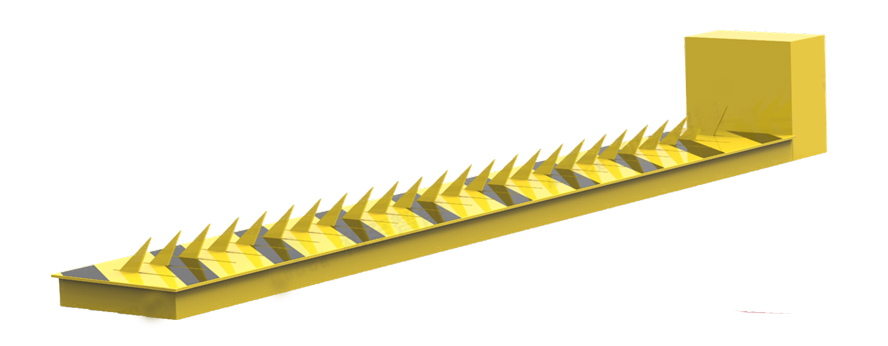

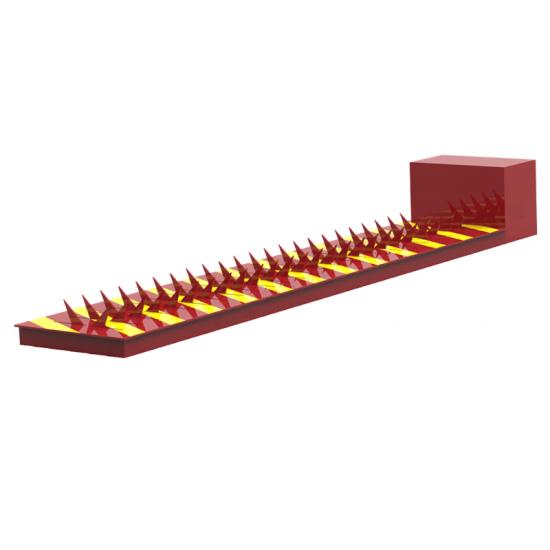

CN Safety Gate Tech electromechanical tyre killers are composed by heavy duty spikes that rise from the ground; tyre killer operates as an access control barrier, and could prevent the passage of unauthorized vehicles or it allows the exit from a supervised area.
Tyre Breaker also can be installed with other access control elements (for example CN Safety Gate Tech bollards, CN Safety Gate Tech road blocker or gates) in order to achieve an access control check-point at the highest level of security.
Drive unit is electromechanical, but in case of power failure barrier can be lowered or lifted manually with the help of release gear mechanism.
Product Features:
1. Strong structure, beautiful and durable
2. The lifting height can be adjusted freely, the operation is stable, and the noise is low
3. Using single-chip microcomputer system control, stable, reliable, and easy to integrate. It can be linked with other systems such as barriers, ground sensing, infrared, etc. to realize intelligent control.
4. In the state of power failure, the tyre breaker supports manual lifting
5. The panel is thickened and is integrally formed by a 600-ton bending machine, which is compressive, beautiful and strong
6. The surface is treated with marine paint for rust prevention, and high-gloss reflective stickers are used at the same time, which plays a role of beauty and warning
Technical Data:
|
Height of spikes (Rising) |
120mm (Uni); 80mm(Bi) |
|
Thickness of spikes |
10mm |
|
Thickness of panel: |
12mm |
|
Axis |
φ25mm, 45# steel solid |
|
Actuator |
Single (Uni); Double (Bi) |
|
Rising time |
1s - 2s |
|
Lowering time |
1s - 2s |
|
Manually rising/lowering |
Support |
|
Power consumption |
220W (Uni), 400W (Bi) |
|
Length |
2m - 8m |
|
Width |
550mm (Uni); 800mm (Bi) |
|
Height (Lowering) |
80mm |
|
Color |
Traffic color: Yellow, Red |
|
Color of reflective tape |
Black; Yellow |
|
Color of spikes |
Traffic color: Yellow, Red |
|
Remote control |
Support |
|
Switch button |
Support |
|
Sound & light warning |
Optional |
|
Work with traffic light |
Support |

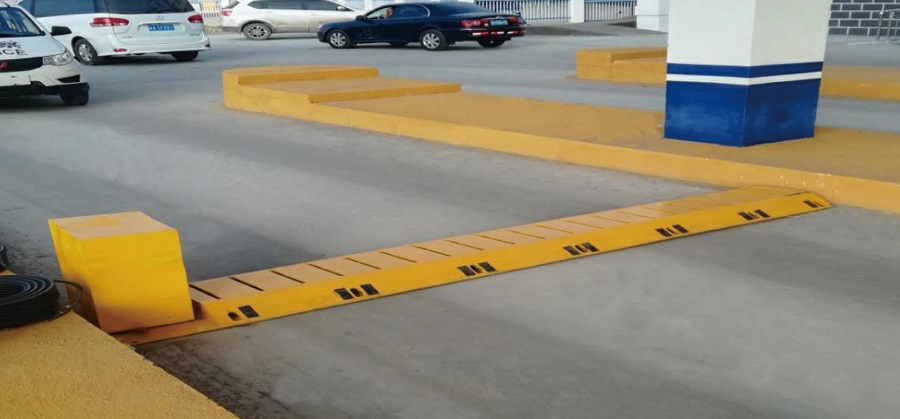

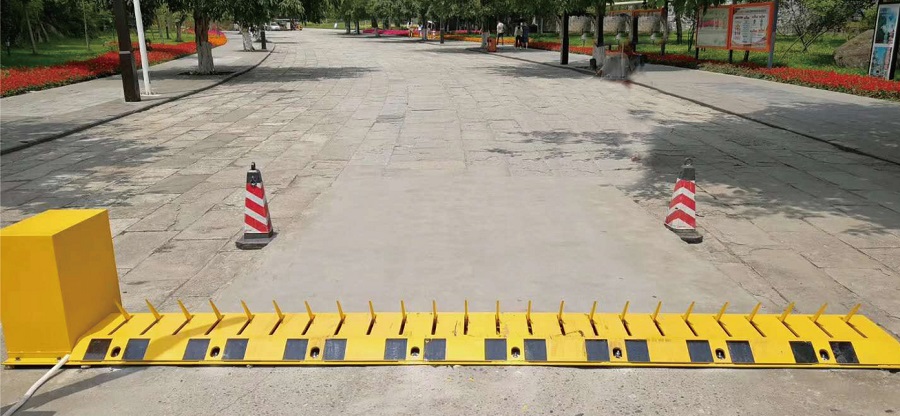

Application photos:
