Waist height turnstile is simple, yet robust in design, that is the most cost-effective solution of crowd control and provides the access management in areas.
Item NO.:
LD-T301Payment:
TT / LC / Paypal / Western UnionProduct Origin:
ChinaColor:
SliverGoods stock:
100Shipping Port:
Guangzhou / Shenzhen PortLead Time:
7-10 DaysSimple waist height Tripod turnstile Gate

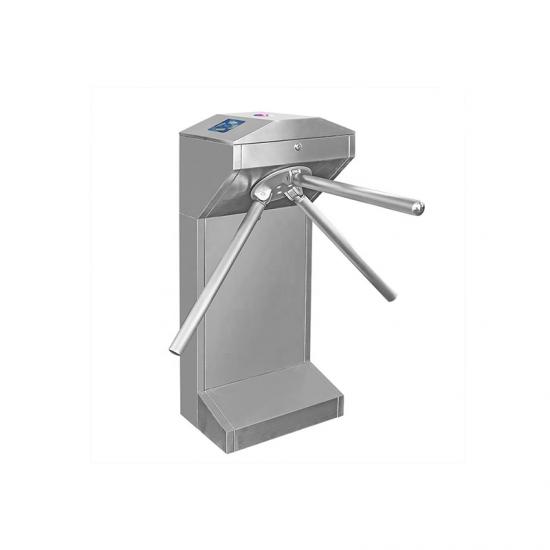

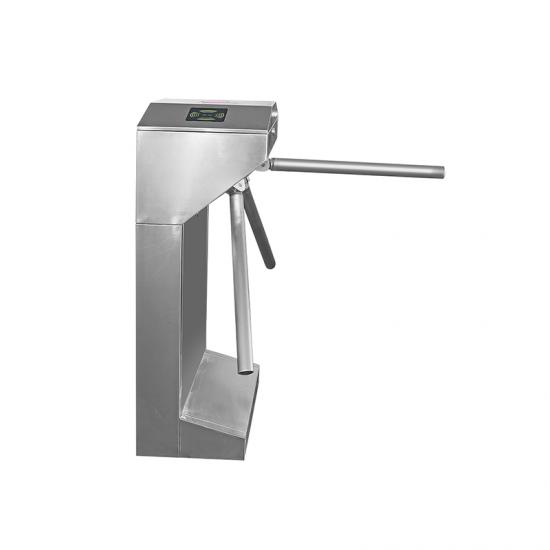

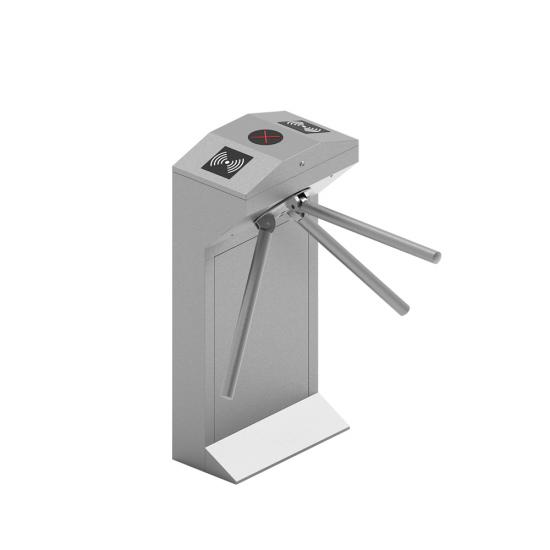

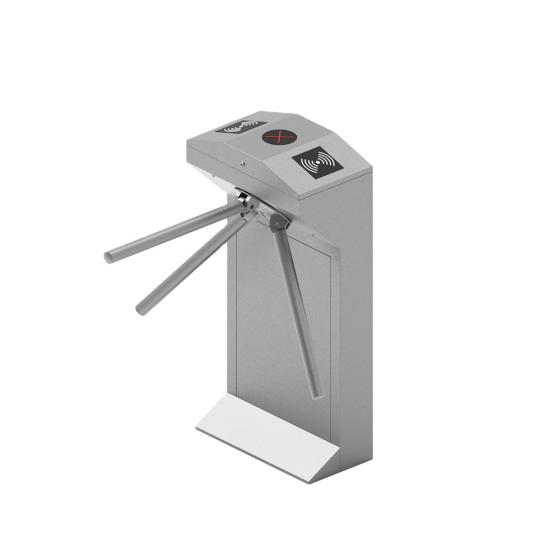

Tripod Turnstile is the half height security solution for unmanned entrances with affordable cost. It only permits one person pass on each turn of the turnstile that achieved by three arm rotor mechanism.
The housing and tripod arms of Waist Height Tripod Turnstile is made of 304 grade brushed stainless steel and processed on CNC machines. The corners of main body all smoothened. The other parts of device are handled by electro-galvanized against corrosion that could hard-wearing and durable.
In the period of post pandemic, we could extend the function of face recognition and temperature detection in the base of contactless position sensing technology, that would be the best solution for recoding the visitors.
Parameters:
|
Model No. |
LD-T301 |
|
Size |
482*283*965 mm (L*W*H) |
|
Material |
304 stainless steel |
|
Channel width |
510mm |
|
Thickness of shell |
1.2mm |
|
Power |
110-230VAC Single phase, 50/60 Hz |
|
Traffic direction |
Single Direction or Bi-directional; |
|
Passing speed |
30~35 persons/minute |
|
Opening signal |
Dry contact |
|
Life |
5 million times; |
Features:
1. It can be used for bi-directional passage control.
2. Standard communication interface is RS 232 (RS 485, TCP / IP optional).
3. With rotor mechanism, tripod arms are positioned at 120 degrees.
4. The systems allow free passage in emergency and in case of power failure
5. The LED direction arrow indicates easy access from one side or either of the sides.
6. Integrated with all type of access control panels / Card reader available in the market.
7. Arms could be locked on both sides to ensure complete blocking of traffic if needed.
8. CE certificated
Leave A MessageThe tripod turnstile can be connected to the ticketing system, supporting multiple ticketing sales channels, and different software function modules can be purchased.
Tripod turnstile can be integrated with ticket system, attendance system and access control system .Customization and second development is supported.
Card access tripod turnstile usually refers to RFID card access control system working in tripod turnstile, which an integrated device to achieve management personnel to enter and exit. Card access tripod turnstile can be exchanged to finger print tripod turnstile or other biometric recognition tripod turnstile, they works in the same way.

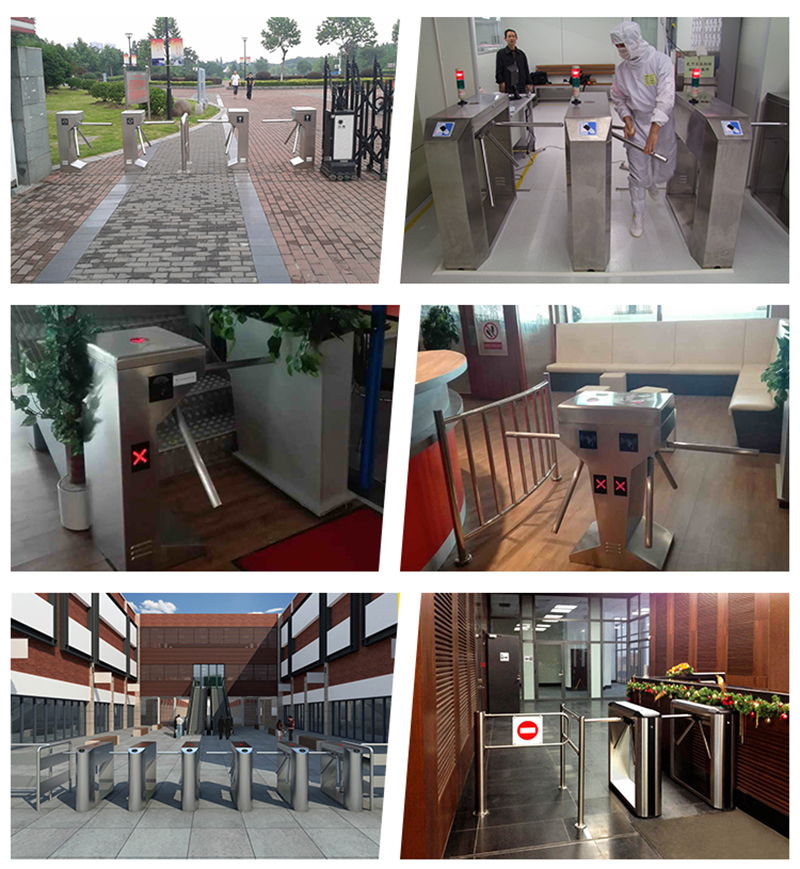

Tripod Turnstile Gate is control huge pedestrian traffic solution with three revolving arms. It is the most popular type and first option for stadium, subway station, factory and bus stop.
Tripod turnstile is cost effective access control security gate which realized smooth and quite passage without much power consumption. It only allows one pedestrian to pass at one time, and denies un-authorized access.
The 3 arms turnstile is rotates in a circle with a single or bi-directional passage way. The mechanical version would requires the person push one arm to initiate the rotation. The semi-automatic and automatic have the turnstile locked and need to engage by an access control system or guard pushing the release button.
Guangdong CN Safety Gate Tech Intelligence Technology Co, Ltd is a professional manufacturer and provider of automated entrance solutions, It has released high quality turnstiles include Tripod turnstiles or Half height turnstile for smart pedestrian entrance and exit. They are highly recommended for entrant and exit in industry facilities, warehouses, office buildings, construction sites, or viewing parks.
Tripod turnstile is the basic and low-cost access control entrance solution to manage the pedestrian flow. It is designed for easy operation, reducing power consumption, anti-rust and dust proof.
